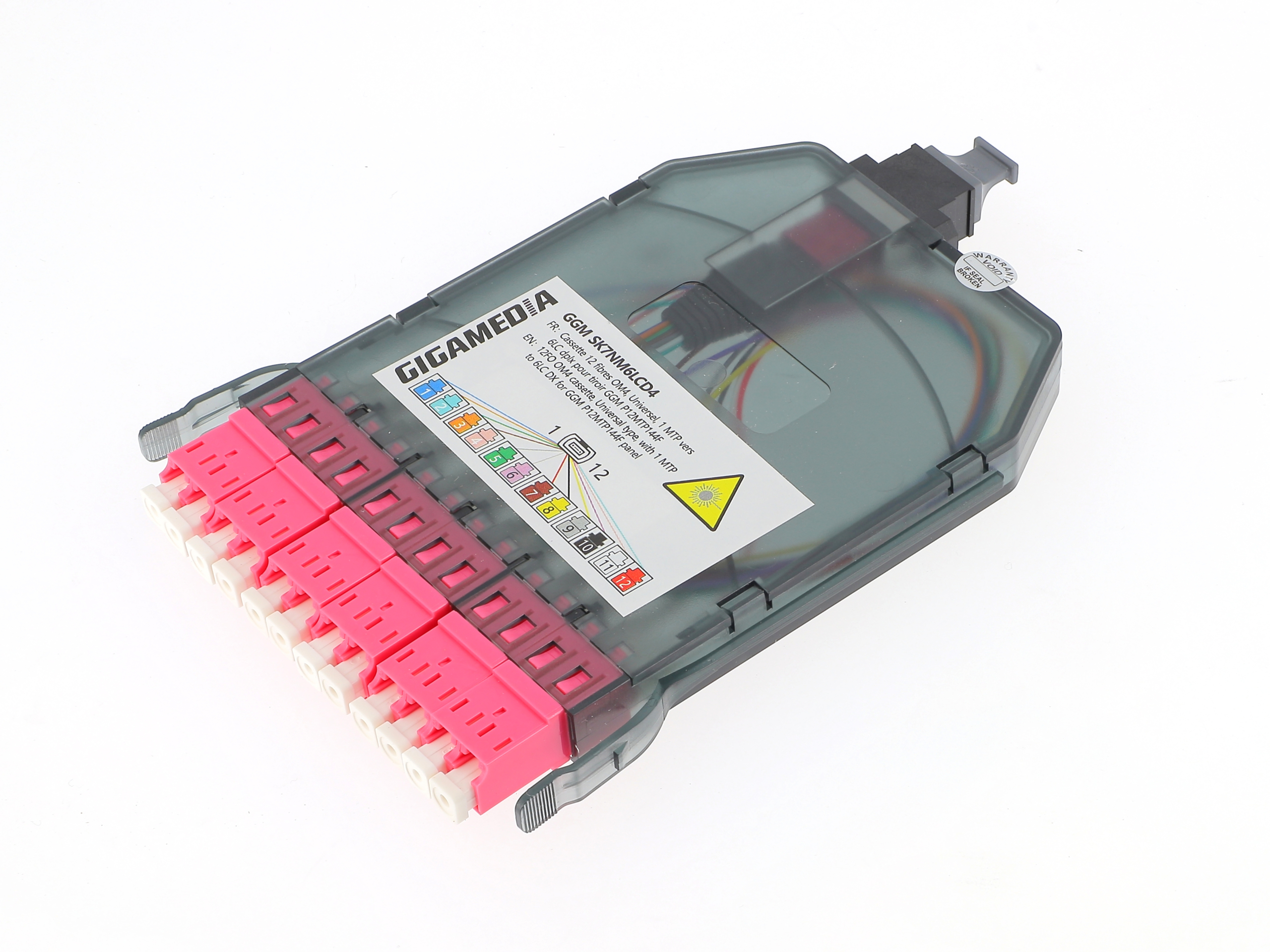

GGM SK7NM6LCD4

12FO OM4 cassette, Universal type, with 1 MTP to 6LC DX for GGM P12MTP144F panel

Dedicated to GGM P12MTP144F datacenter patchpanel, this cassette can split one preterminated multimode OM4 links of 12FO MTP connectors to 6 LC duplex adapters at the front. It offers 10Gbit/s performances deployment or ease of migrations to 40Gbit/s ou 100Gbit/s. Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.

Dedicated to GGM P12MTP144F datacenter patchpanel, this cassette can split one preterminated multimode OM4 links of 12FO MTP connectors to 6 LC duplex adapters at the front.
It offers 10Gbit/s performances deployment or ease of migrations to 40Gbit/s ou 100Gbit/s.
Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.

Materials	Plastic
Operating temperature	-40° to +85°C
Cassette type	SK7N slim
Weight (kg)	0.1
Fiber amount	12
Fiber type	multimode OM4
Polarity	Universal U1
Total insertion loss (IL) of the cassette	0,35 / 0,5
Total reflection (RL) of the cassette Typical / Max (dB)	35 / 25
Cable entry	N/A
Cable diameter	N/A
Number of adapters (front face)	6
Number of connectors (front face)	12
Adapter type (front face)	LC duplex
Adapter colour (front face)	erika violet
Connector type (front face)	LC duplex
Connector gender (front face)	Male
Insertion loss (IL) - Front face	0,1 / 0,15
Return loss (RL) - Front face	N/A
Ferrule type (front face)	PC
Ferrule material (front face)	ceramic
Number of adapters (rear side)	1
Number of connectors (rear side)	1
Adapter type (rear side)	MPO
Adapter colour (rear side)	Black
Connector type (rear side)	MPO12
Connector gender (rear side)	Male
Insertion loss (IL) - Rear side	0,25 / 0,35
Return loss (RL) - Rear side	35 / 25
Ferrule type (rear side)	PC
Ferrule material (rear side)	composite

ETIM features

Suitable for number of couplings/adaptors	6
With number of couplings/adaptors	6
With front plate	Yes
With housing	Yes
With pigtails	Yes
Fibre type	Multi mode 50/125
Fibre class	OM4
APC-version	No
Type of connector external	LC-Duplex
Type of connector interior	MT/MPO
Colour	Black
RAL-number	9005
Mounting method	482.6 mm (19 inch) mounting
Height	11.8 mm
Width	95 mm
Depth	123 mm
