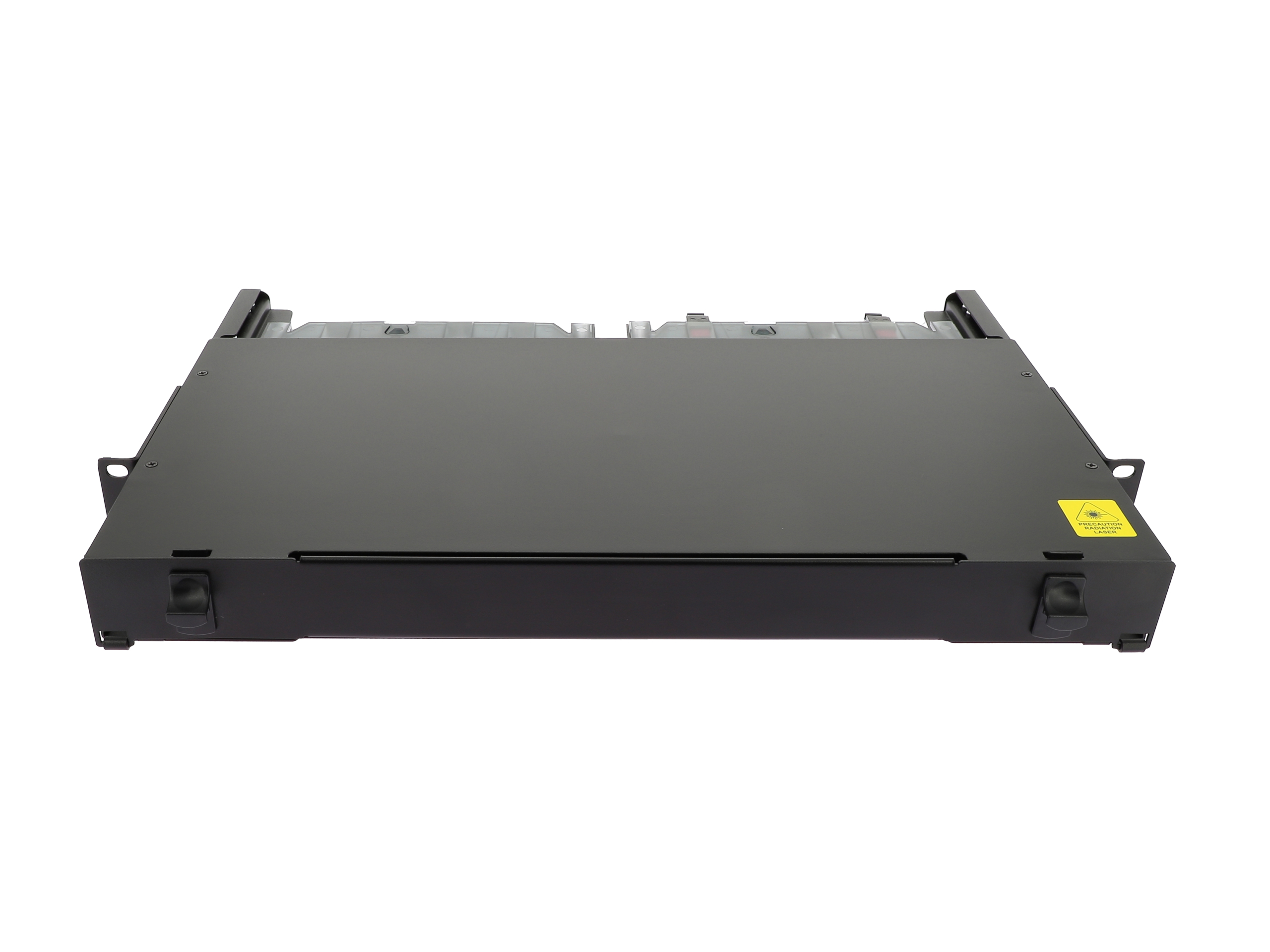

GGM P6MTP144F

144FO 1U MTP patchpanel + 3 layers, to be loaded with 6 SK7M slim cassette serie

Dedicated to datacenter applications, this high density panel can go up to 144FO on 1U. It comes with 3 sliding layers which could accept each 2 MTP/MPO cassettes from the SK7M serie. Each cassette has a capacity of 24 fibers (LC duplex connectors).

Dedicated to datacenter applications, this high density panel can go up to 144FO on 1U.
It comes with 3 sliding layers which could accept each 2 MTP/MPO cassettes from the SK7M serie.
Each cassette has a capacity of 24 fibers (LC duplex connectors).

Capacity	144 fibers
Number of layers	3
Front cable management	yes
Rear cable management	yes
Side cable management	no
Supplied accessories	Cable ties
Materials	Black steel
Operating temperature	-40° to +85°C
Cassette type	SK7M slim
Weight (kg)	5

ETIM features

Suitable for number of couplings/adaptors	144
Suitable for number of module inserts	6
With front plate	No
With housing	Yes
With pigtails	No
Fibre type	Singlemode and Multimode 50/125
Type of connector external	LC-Duplex
Type of connector interior	MT/MPO
Colour	Black
RAL-number	9005
Mounting method	482.6 mm (19 inch) mounting
Number of height units	1
Height	44 mm
Width	483 mm
Depth	453 mm
