GGM IPSB6VM2DLB
Standard Bullet series Res 6MP Lens 2.8-12 mm IR:50m WL:40m IA IP67 ONVIF NDAA

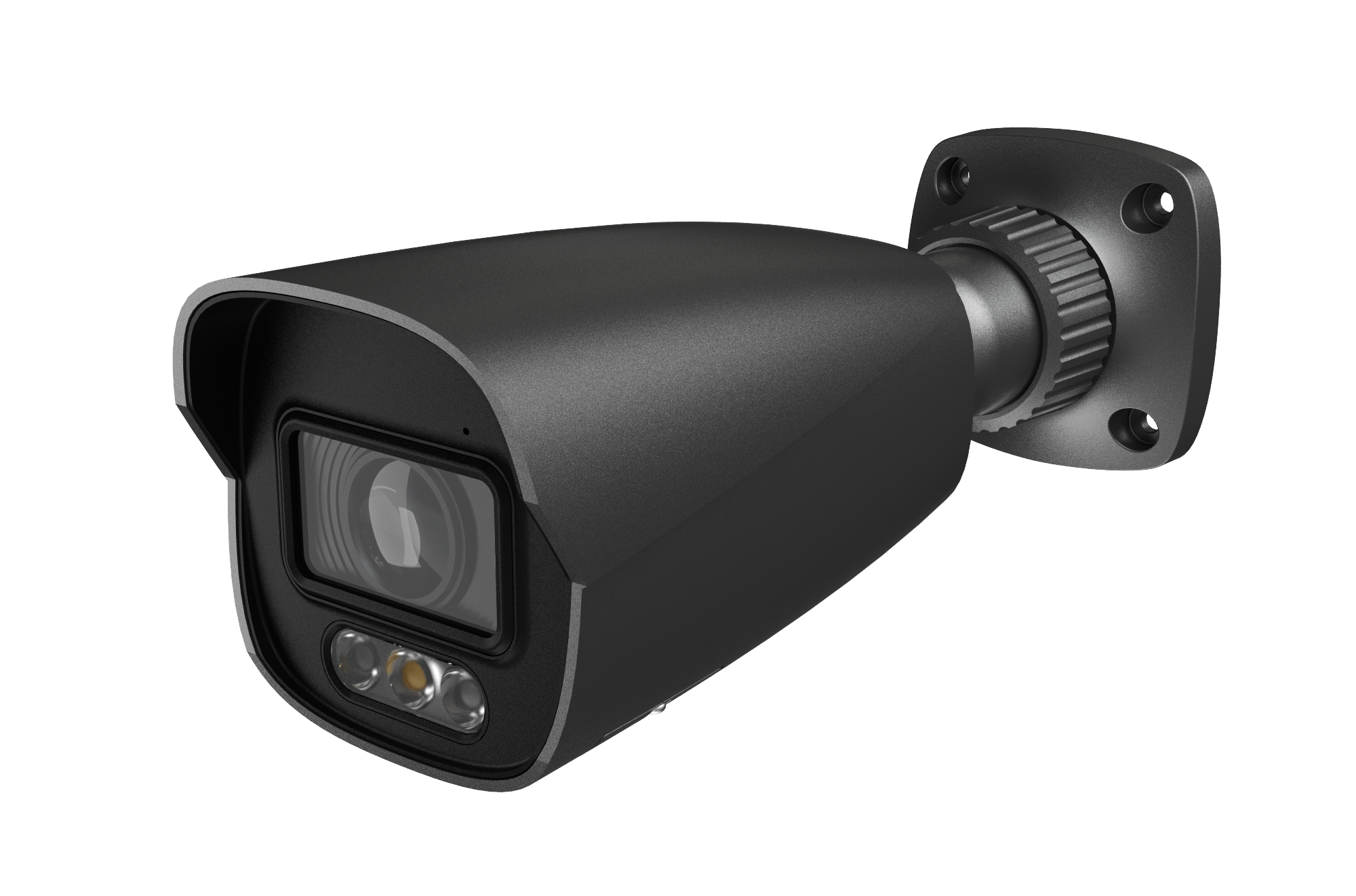

The IPSB6VM2DLB is a bullet camera with a resolution of 6MP. Its 2.8-12mm lens allows you to adapt its angle of view to the scene you want to see. It has an infrared of up to 50m and white led lighting of up to 40m. The choice of lighting mode is configurable. This camera has many smart analytics functions such as: • Crossing line detection and zone intrusion with classification of people and vehicles. • Triggering alarms on abandoned/lost object detection. Equipped with a built-in microphone, you can allow remote audio verification or be alerted in case of abnormal sound.…
Lire la suite
The IPSB6VM2DLB is a bullet camera with a resolution of 6MP.
Its 2.8-12mm lens allows you to adapt its angle of view to the scene you want to see.
It has an infrared of up to 50m and white led lighting of up to 40m. The choice of lighting mode is configurable.
This camera has many smart analytics functions such as:
• Crossing line detection and zone intrusion with classification of people and vehicles.
• Triggering alarms on abandoned/lost object detection.
Equipped with a built-in microphone, you can allow remote audio verification or be alerted in case of abnormal sound.
It also includes an audio input to connect an external speaker.
This camera has a micro SD card slot that can support a maximum capacity of 256 GB.
The 120 dB WDR helps to provide perfect image quality in all light conditions.
Thanks to its IP67 rating, you can install it outdoors.
You can power the camera with 12V or PoE.
This camera is ONVIF and NDAA compliant.
This high-performance camera from the "Standard" series is ideal for site security projects, in the tertiary sector, retail, administrative buildings, etc.
Its 2.8-12mm lens allows you to adapt its angle of view to the scene you want to see.
It has an infrared of up to 50m and white led lighting of up to 40m. The choice of lighting mode is configurable.
This camera has many smart analytics functions such as:
• Crossing line detection and zone intrusion with classification of people and vehicles.
• Triggering alarms on abandoned/lost object detection.
Equipped with a built-in microphone, you can allow remote audio verification or be alerted in case of abnormal sound.
It also includes an audio input to connect an external speaker.
This camera has a micro SD card slot that can support a maximum capacity of 256 GB.
The 120 dB WDR helps to provide perfect image quality in all light conditions.
Thanks to its IP67 rating, you can install it outdoors.
You can power the camera with 12V or PoE.
This camera is ONVIF and NDAA compliant.
This high-performance camera from the "Standard" series is ideal for site security projects, in the tertiary sector, retail, administrative buildings, etc.
| Video compression | Main stream: H.265+ / H.265 / H.264+ / H.264Sub /Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
|---|---|
| H264 Compression standard | H.265 CompressionStandard: Main Profile@Leve4.1 High Tier |
| Image Size | 3200×1800 |
| Privacy mask | 4 mask |
| Main stream | 60Hz: 6MP(1~20fps) /4MP/1080P (1~30fps)50Hz: 6MP(1~20fps) /4MP/1080P (1~25fps) |
| Sub Stream | 720P/D1/VGA/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Third stream | D1/480× 240/CIF (60Hz: 1~30fps; 50Hz: 1~25fps) |
| Bitrate | 64 Kbps ~8Mbps |
| Bit rate Type | VBR / CBR |
| Audio Compression | G711A/U |
| Image settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, ImageMirror, Image Flip, NR, etc. adjustable through client software or web browser |
| Corridor mode | Yes |
| ROI | Each ROI to be configured separately |
Interfaces
| Network | RJ 45 |
|---|---|
| Surge Protection | Differential Mode±2KV, Common Mode±4KV |
| Vidéo Output | No |
| Number of audio in | 1 |
| Buit-in speaker | / |
| Built-in microphone | 1CH built-in MIC |
| Storage | Built-in micro SD card slot; up to 256GB |
| Reset | Yes |
| Alarm in | / |
| Alarm out | / |
PTZ
| Number of patrol | / |
|---|---|
| 3D privacy mask support ( number of zone) | / |
Analytics
| Smart Event | Line crossing/region intrusion (human/vehicle classification), abandoned/missing object detection |
|---|---|
| Statistics | / |
| Exception detection | video exception |
| Face detection | / |
| Video Metadata | / |
DORI (based on 2.8mm/2.8-12mm)
| Detect | W：66m(218ft)T：204m(669ft) |
|---|---|
| Observe | W：27m(87ft)T：82m(269ft) |
| Recognize | W：13m(44ft)T：41m(135ft) |
| Identify | W：7m(23ft)T：20m(66ft) |
Functions
| Remote monitoring | Web browser /TVT NVR/GGM CENTRAL/Mobile APP |
|---|---|
| Web browser | Chrome 89.0+/Edge 89.0+/Firefox 87.0+/Safari 14.0+ |
| Online connection | Support simultaneous monitoring for up to 10 users;Support multi-stream real time transmission |
| Network protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS,SMTP, FTP, 802.1x, SNMP, UPnP, HTTPS, HTTP POST, P2P, QoS |
| Onvif version/Profile | ONVIF 24.06/M, T, S, G |
| Smart Alarm | Motion detection, SMD, SD card error, SD card full, IP address conflict, network disconnection, video exception |
| General function | Watermark, IP address filtering, video mask, heartbeat, ANR, cloud upgrade, corridor pattern |
| Security | Video encryption, firmware encryption, HTTPS encryption, configurationencryption, illegal login lock,IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP |
| POE | Yes (IEEE802.3af) |
| IR distance | IR range: 30 ~ 50 m |
| Warm led distance | 30 ~ 40 m |
| IP protection rate | IP67 |
| IK protection rate | / |
Others
| Power supply | DC12V/PoE |
|---|---|
| Storage conditions | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95 % (non-condensing) |
| Operating conditions | - 30 °C ~ 60 °C (-22°F~140°F), Humidity: less than 95 % (non-condensing) |
| Dimension | 218.1 x79.5 x 70.4 |
| Weight | Approx. 0.7KG |
| Installation | Ceiling mounting; wall mounting |
| Certificate | CE, FCC |
| Environmental protection | Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006) |
