GGM FCSCH2X0.5ST

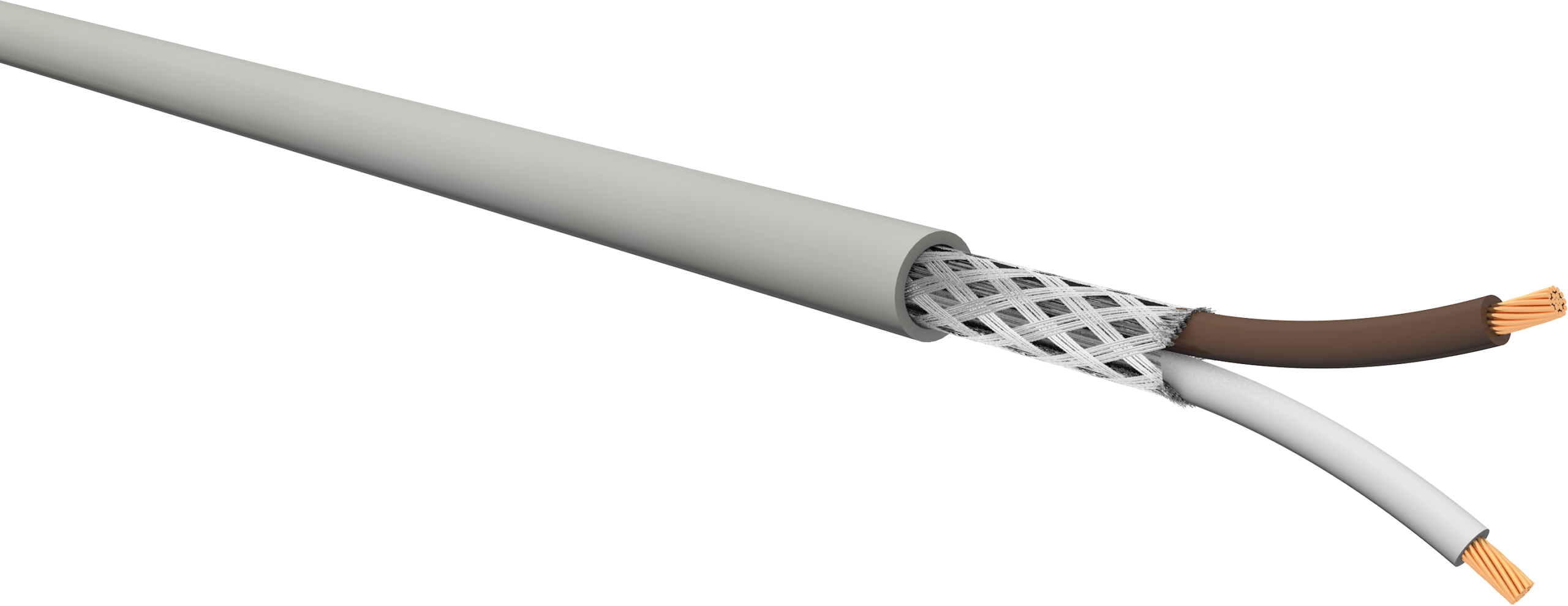

LIHCH multi-conductor screened cable 2x 0,5 mm², DIN47100, Cca, grey jacket
Lire la suite
| Capacitance (nf/km) | 120 |
|---|---|
| Conformity | DIN VDE-812 |
| Inductance (M Ohms/km) | 20 |
| Conductor type | Flexible stranded annealed copper core |
| Color code | DIN47100 |
| Sheath RAL | 7035 |
| Jacket color | Grey |
| Shielding | Tresse cuivre étamé |
| Packing method | On cut |
| Conductors size | 0,5 mm2 |
| Number of conductors | 2 |
ETIM features
| Conductor material | Copper |
|---|---|
| Conductor surface | Tinned |
| Nominal cross section conductor | 0.5 mm² |
| Conductor category | Class 5 = flexible |
| Conductor resistance at 20 °C | 39 ohm/km |
| Number of cores | 2 |
| Screen over stranding element | Braiding |
| Core identification according to HD 308 S2 | No |
| Core identification | Colour |
| Drain wire | No |
| Material outer sheath | Other |
| Specification material outer sheath | Other |
| Colour outer sheath | Grey |
| Screen | Yes |
| Cable geometry | Round |
| Protective barrier | None |
| Armouring/reinforcement | Braiding |
| Material armouring | Copper |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | Yes |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-1 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Halogen free according to EN IEC 60754-3 | No |
| Reaction-to-fire according to EN 13501-6 | Class : Cca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s2 |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d1 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant according to EN IEC 60811-404 | No |
| Outer diameter approximate | 5.3 mm |
| Min. permitted bending radius, moving application/free movement | 79.5 mm |
| Min. permitted bending radius, stationary application/permanent installation | 21.2 mm |
| Permitted cable outer temperature after assembling without vibration | -30 - 70 |
| Nominal voltage U0 | 300 V |
| Nominal voltage U | 500 V |
| Shape of conductor | Round |
| Weight | 37 kg/km |
