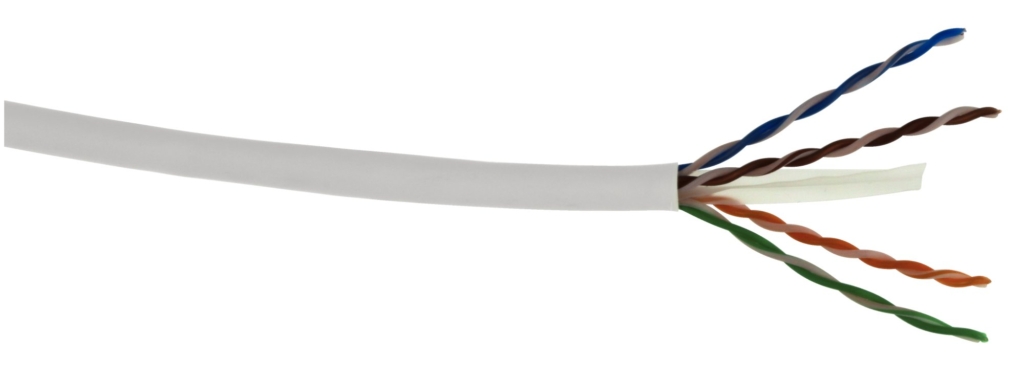

GGM C6UHR4WT5
CABLE CAT6 4P AWG24 E-SLIM U/UTP LSZH Dca, WHITE T
The GIGAMEDIA CAT6 cables are data transmission cables designed for applications requiring a frequency band up to 250 MHz. These cables offer the possibility of exceeding specifications relative to different standards corresponding to the Class E.
Read more
The GIGAMEDIA CAT6 cables are data transmission cables designed for applications requiring a frequency band up to 250 MHz.
These cables offer the possibility of exceeding specifications relative to different standards corresponding to the Class E.
Product features
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/UTP |
| Category | 6 |
| Standards | ANSI/TIA-568-C.2 ; EN 50173 ; ISO/IEC 11801 |
| Frequency range | From 0 to 250 Mhz |
| Impedance | 100 |
| Gauge (awg) | 24 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
Article features
| Jacket type | LSZH |
|---|---|
| Outer jacket colour | White |
| Jacket RAL | RAL 9010 |
| Outer sheath diameter (mm) | 5.2 |
| NVP (%) | 67 |
| Fire behaviour | EN 13501-6: Dca s2,d2,a1; EN 50575; EN 50399; EN 60332-3 |
| Insulation diameter (mm) | 0.95 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA EN50173 CAT6 U/UTP LSZH C6UHR4-TP013A Dca NVP 67% 4 PAIRS 24AWG[ Lot n°] ? [meter mark xxxx M] |
| Packaging | 500 m drum |
ETIM 9 features
| Shield type | U/UTP |
|---|---|
| Conductor material | Copper |
| Conductor surface | Bare |
| AWG size | 24 |
| Conductor construction | Class 1 = solid |
| Number of conductors | 8 |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Core identification according to HD 308 S2 | No |
| Conductor identification | Colour |
| Shield | None |
| Stranding | Other |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Jacket colour | White |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Low smoke according to EN IEC 61034-2 | No |
| Halogen free according to EN IEC 60754-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : Dca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s2 |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d2 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant | No |
| Cable OD | 5.2 mm |
| Installation temperature | 00 - 50 |
| Operating temperature | -20 - 60 |
| NVP | 67 % |
| UV resistant | No |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | B |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
