GGM C6U4PFRWBPET3

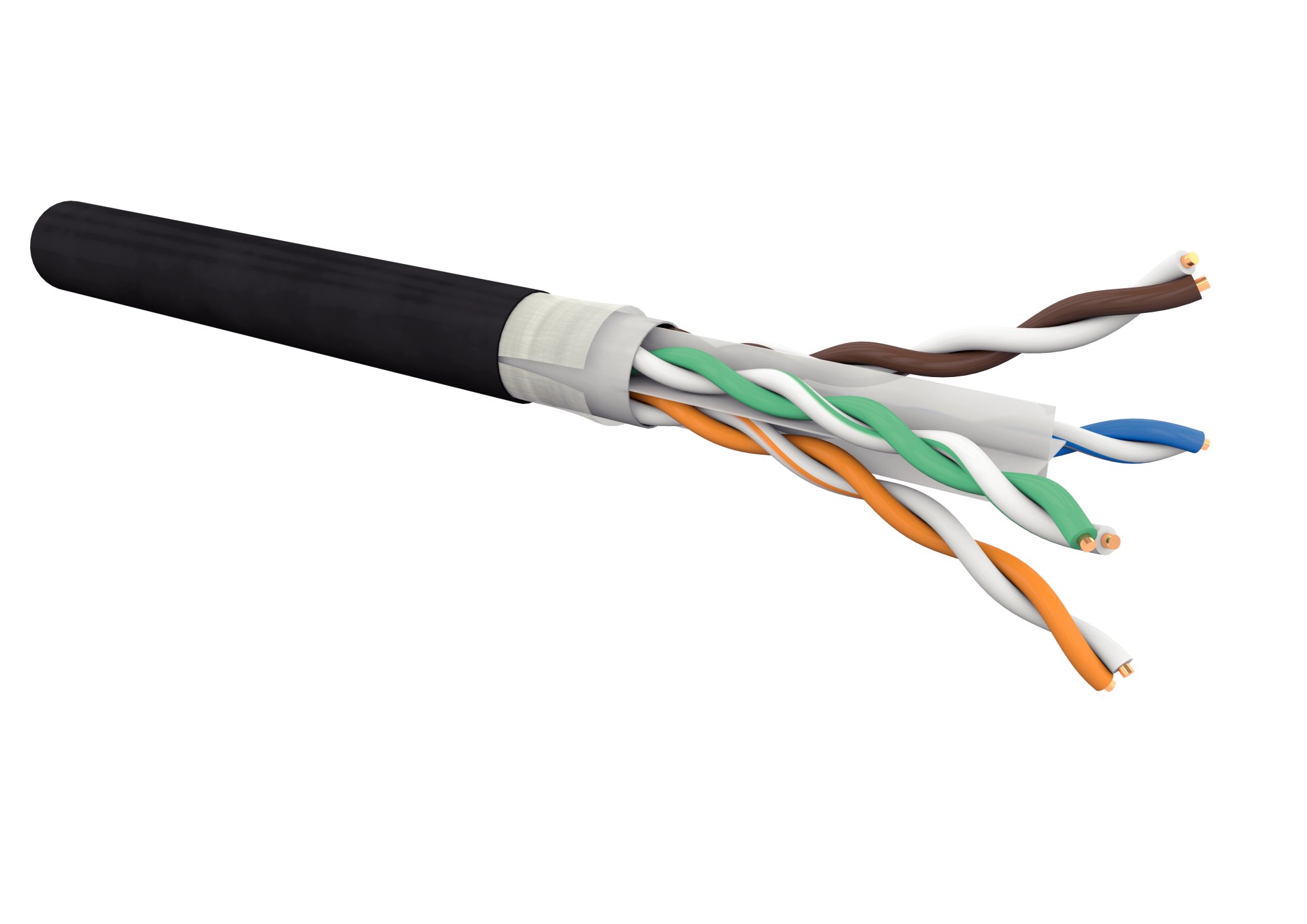

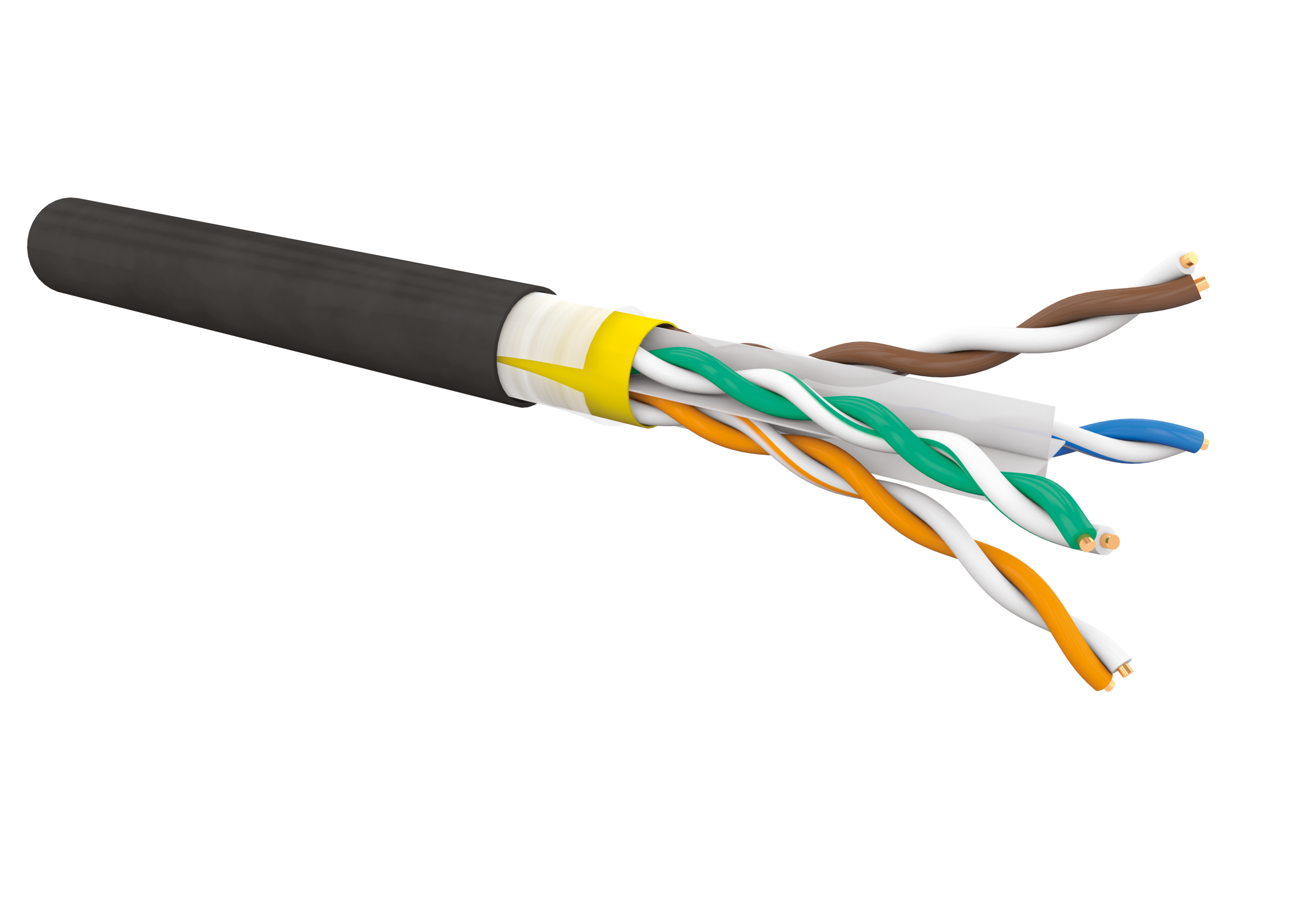

CAT6 U/UTP AWG23 4P LSZH-FR Cca/PE with water block tape, 305 m drum

This cable is designed to exceed the Class E performance (Category 6) and supports applications up to 5 Gigabit Ethernet (5GBase-T), as well as PoE. With its double sheath LSZH/PE it is particularly suitable for restrictions of an outdoor installation. Equipped with a waterblock tape, it can be sealed without gel, limiting cable preparation time before connecting. It can also be installed indoors once the PE sheath is removed

Applications	IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	U/UTP
Category	6
Standards	IEC 61156-5, ANSI/TIA-568.2-D, EN50288-6-1
Frequency range	From 0 to 250 Mhz
Impedance	100
Gauge (awg)	23
Conductor type	Solid copper
Number of pairs	1X4
Jacket type	PE
Outer jacket colour	Black
Jacket RAL	RAL 9005
Outer sheath diameter (mm)	8.2
NVP (%)	67
Fire behaviour	N/A
Insulation diameter (mm)	1.1
Insulation Material	Polyethylene
Marking	GIGAMEDIA C6U4PFRWBPET3 EN50173 CAT6 U/UTP LSZH-FR / PE WATER BLOCKED OUTDOOR CABLE NVP 67% 4 PAIRS 23AWG BATCH CODE xxxx M
Packaging	305 M

ETIM features

Cable type	U/UTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Diameter conductor	0.561 mm
Nominal cross section conductor	0.247 mm²
AWG size	23
Conductor category	Class 1 = solid
Number of cores	4
Material core insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	None
Stranding	Other
Screen over stranding	None
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	Yes
Approved type of underground installation	Underground installation tube
Protective sheath	Other
Material outer sheath	Other
Specification material outer sheath	Polyethylene (PE)
Colour outer sheath	Black
Number of sheath layers	2
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)	No
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	No
Flame retardant according to IEC 60332-3-25 (Cat D)	No
Low smoke according to EN IEC 61034-2	No
Halogen free according to EN IEC 60754-1	No
Halogen free according to EN IEC 60754-2	No
Halogen free according to EN IEC 60754-3	No
Reaction-to-fire according to EN 13501-6	Class : Fca
Reaction-to-fire according to EN 13501-6	Smoke production : None
Reaction-to-fire according to EN 13501-6	Flaming droplets/particles : None
Reaction-to-fire according to EN 13501-6	Acidity : None
Oil resistant according to EN IEC 60811-404	No
NVP value	67 %
Certified for shipboard application	No
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Suitable for use as security alarm cable	No
Drain wire	No
With rip cord	Yes
Characteristic impedance	100 Ohm
With rodent protection	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
