GGM C6U4PPEDT5

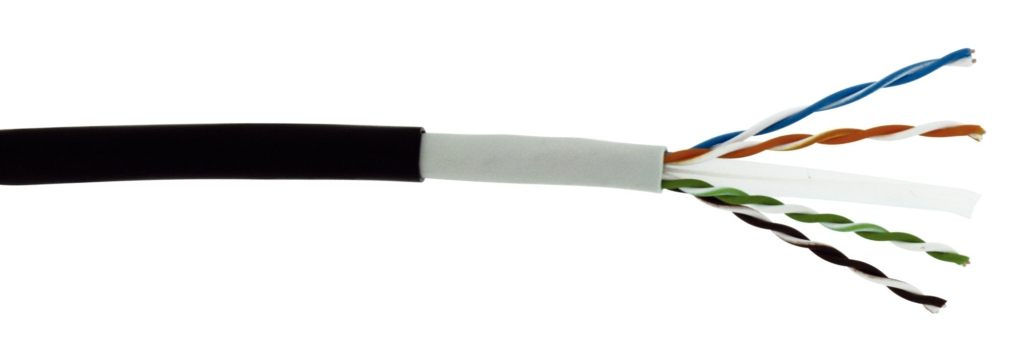

CABLE CAT6 4P UTP AWG23 PVC/PE BLACK 500M
The outer PE sheath ensures superior UV resistance, ideal for outdoor installations. The PVC/PE versions may also be used indoors if the outer PE sheath is removed.
Read more
The outer PE sheath ensures superior UV resistance, ideal for outdoor installations.
The PVC/PE versions may also be used indoors if the outer PE sheath is removed.
Product features
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/UTP |
| Category | 6 |
| Standards | EIA/TIA 568-C.2 ; ISO/IEC 11801; IEC 61156-5 ; EN50173 ; EN50288-6-1 |
| Frequency range | From 0 to 250 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
Article features
| Jacket type | PVC/PE |
|---|---|
| Outer jacket colour | Black |
| Jacket RAL | RAL 9005 |
| Outer sheath diameter (mm) | 7 |
| NVP (%) | 68.2 |
| Fire behaviour | N/A |
| Insulation diameter (mm) | 1 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA |
| Packaging | 500 m drum |
ETIM 9 features
| Shield type | U/UTP |
|---|---|
| Duplex | No |
| Conductor material | Copper |
| Conductor surface | Bare |
| Conductor OD | 0.55 mm |
| Conductor cross-section | 0.235 mm² |
| AWG size | 23 |
| Conductor construction | Class 1 = solid |
| Number of conductors | 8 |
| Number of stranding elements | 4 |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Core identification according to HD 308 S2 | No |
| Conductor identification | Colour |
| Shield | None |
| Stranding | Other |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Specification material outer sheath | Polyethylene (PE) |
| Jacket colour | Black |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | No |
| Reaction-to-fire according to EN 13501-6 | Class : Fca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : None |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : None |
| Reaction-to-fire according to EN 13501-6 | Acidity : None |
| Oil resistant | No |
| Cable OD | 5.8 mm |
| Installation temperature | 00 - 50 |
| Operating temperature | -20 - 60 |
| NVP | 67 % |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | B |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Suitable for use as security alarm cable | No |
| Drain wire | No |
| With rip cord | Yes |
| Rodent protected | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
