GGM C6F4PPET5

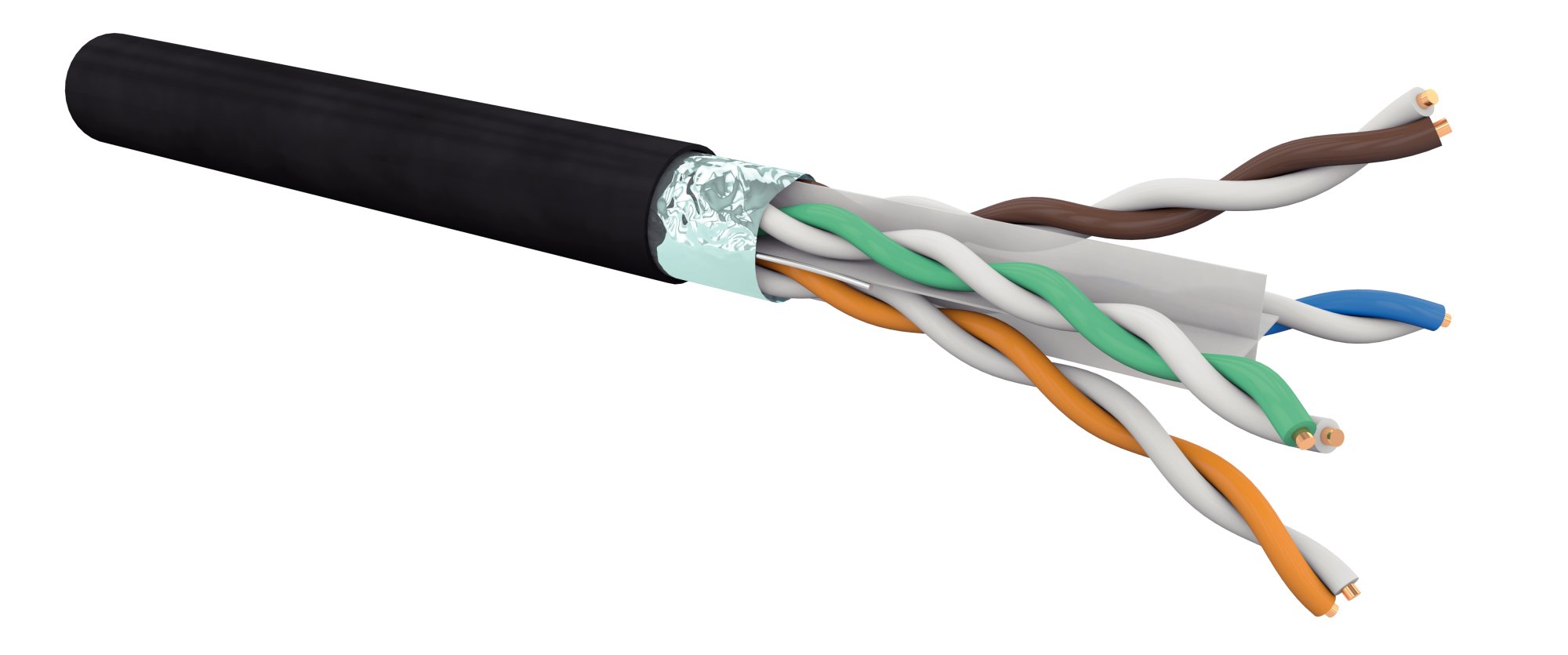

CAT6 4P F/UTP UV RESISTANT PE BLACK 500M

The GIGAMEDIA Cat6 cables are designed to exceed the Class E performance (Category 6) and supports applications up to Gigabit Ethernet (1000BaseT) They have general foil screening to optimise high frequency interference protection and are characterised up to 400 MHz. These cables also have a polyethylene sheath especially suited for outdoor use (Anti UV protection).

Applications	IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	F/UTP
Category	6
Standards	EN50173, ; ISO/IEC 11801, ; ANSI/TIA-568-C.2
Frequency range	From 0 to 400 Mhz
Impedance	100
Gauge (awg)	24
Conductor type	Solid copper
Number of pairs	1X4
Jacket type	PE
Outer jacket colour	Black
Jacket RAL	RAL 9005
Outer sheath diameter (mm)	7.5
NVP (%)	67.8
Fire behaviour	N/A
Insulation diameter (mm)	1.15
Insulation Material	Polyethylene
Marking	GIGAMEDIA ETL VERIFIED ANSI/TIA-568-C.2 CATEGORY 6 F/UTP PE OUTDOOR CABLE 4 PAIR 24 AWG Lot n° + marquage métrique
Packaging	500 m drum

ETIM features

Cable type	F/UTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Diameter conductor	0.555 mm
Nominal cross section conductor	0.237 mm²
AWG size	24
Conductor category	Class 1 = solid
Number of cores	8
Number of stranding elements	4
Stranding element	Pairs
Material core insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	None
Stranding	None
Screen over stranding	Foil
Longitudinal water blocking cable	No
Radial water blocking cable	Yes
Suitable for underground installation	No
Approved type of underground installation	Underground installation tube
Specification material outer sheath	Polyethylene (PE)
Colour outer sheath	Black
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	No
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	No
Flame retardant according to IEC 60332-3-25 (Cat D)	No
Low smoke according to EN IEC 61034-2	No
Halogen free according to EN IEC 60754-1	No
Halogen free according to EN IEC 60754-2	No
Reaction-to-fire according to EN 13501-6	Class : Fca
Reaction-to-fire according to EN 13501-6	Smoke production : None
Reaction-to-fire according to EN 13501-6	Flaming droplets/particles : None
Reaction-to-fire according to EN 13501-6	Acidity : None
Oil resistant according to EN IEC 60811-404	No
Outer diameter approximate	7.5 mm
Min. permitted bending radius, moving application/free movement	8 mm
Min. permitted bending radius, stationary application/permanent installation	4 mm
Permitted cable outer temperature during assembling/handling	00 - 50
Permitted cable outer temperature after assembling without vibration	-20 - 60
NVP value	67.8 %
Certified for shipboard application	No
Segregation class according to EN 50174-2	B
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Suitable for use as security alarm cable	No
Drain wire	Yes
With rip cord	No
Weight	24.5 kg/km
Characteristic impedance	100 Ohm
Max. tensile strength during installation	0.4 kN
Nominal voltage U	300 V
With rodent protection	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
