GGM C6U4PFROHT3

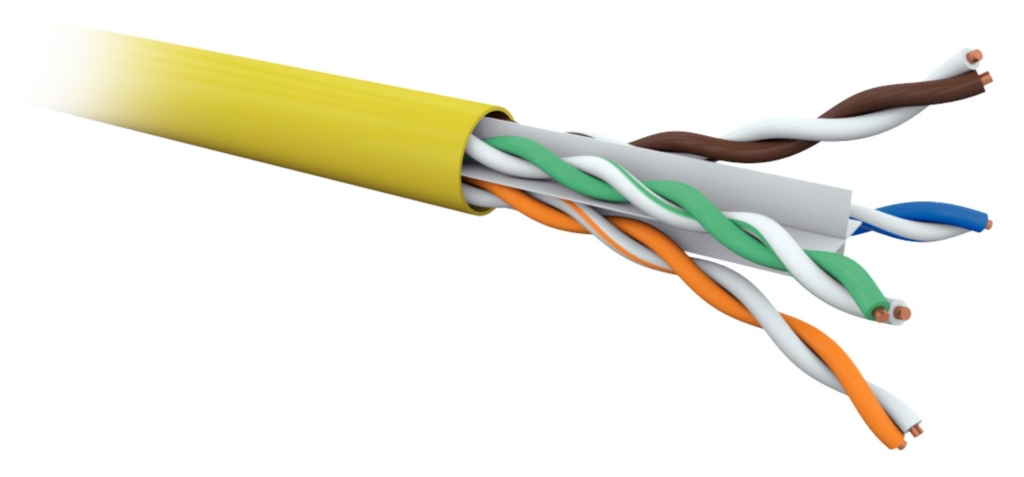

CABLE CAT6 4P AWG23 U/UTP LSZH-FR Cca, YELLOW T305M
Facilitates evacuation in case of fire! New Cat6 cable U/UTP limits flame propagation and meets the Construction Products Regulation EU 305/2011 and complies with EN 50575, certified Cca s1a, d1,a1.
Read more
Facilitates evacuation in case of fire!
New Cat6 cable
U/UTP limits flame propagation and meets the Construction Products Regulation EU 305/2011 and complies with EN 50575, certified Cca s1a, d1,a1.
Product features
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/UTP |
| Category | 6 |
| Standards | ISO/IEC 11801 ; EN 50173-1, EN 50173-2 et EN 50173-5 ; ISO/IEC 24764 ; IEC 61156-5 : Edition 2.0 2009-02,ISO/IEC 11801 ; EN 50173-1, EN 50173-2 et EN 50173-5 ; ISO/IEC 24764 ; IEC 61156-5 : Edition 2.0 2009-02 ; ANSI/TIA-568-C.2 |
| Frequency range | From 0 to 250 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
Article features
| Jacket type | LSZH-FR |
|---|---|
| Outer jacket colour | Yellow |
| Jacket RAL | RAL 1021 |
| Outer sheath diameter (mm) | 6.1 |
| NVP (%) | 67 |
| Fire behaviour | EN 13501-6 : Cca s1a d1 a1 ; EN 50575 ; EN 50399 ; EN 60332-1-2 |
| Insulation diameter (mm) | 0.96 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA EN50173 CAT6 U/UTP LSZH-FR C6U4PFROH-TP009A Cca NVP 67% 4 PAIRS 23AWG xxxM |
| Packaging | 305 m drum |
ETIM 9 features
| Shield type | U/UTP |
|---|---|
| Conductor material | Copper |
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor construction | Class 1 = solid |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Conductor identification | Colour |
| Shield | None |
| Stranding | Other |
| Approved type of underground installation | Underground installation tube |
| Jacket colour | Yellow |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Reaction-to-fire according to EN 13501-6 | Class : Cca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s1a |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d1 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Cable OD | 6.2 mm |
| NVP | 67 % |
| Segregation class according to EN 50174-2 | B |
