Product features
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/UTP |
| Category | 6 |
| Standards | IEC 61156-5, ANSI/TIA-568.2-D, EN50288-6-1 |
| Frequency range | From 0 to 300 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
Article features
| Jacket type | LSZH/PE |
|---|---|
| Outer jacket colour | Black |
| Jacket RAL | RAL 9005 |
| Outer sheath diameter (mm) | 7.3 |
| NVP (%) | 69 |
| Fire behaviour | N/A |
| Insulation diameter (mm) | 1 |
| Insulation Material | PE |

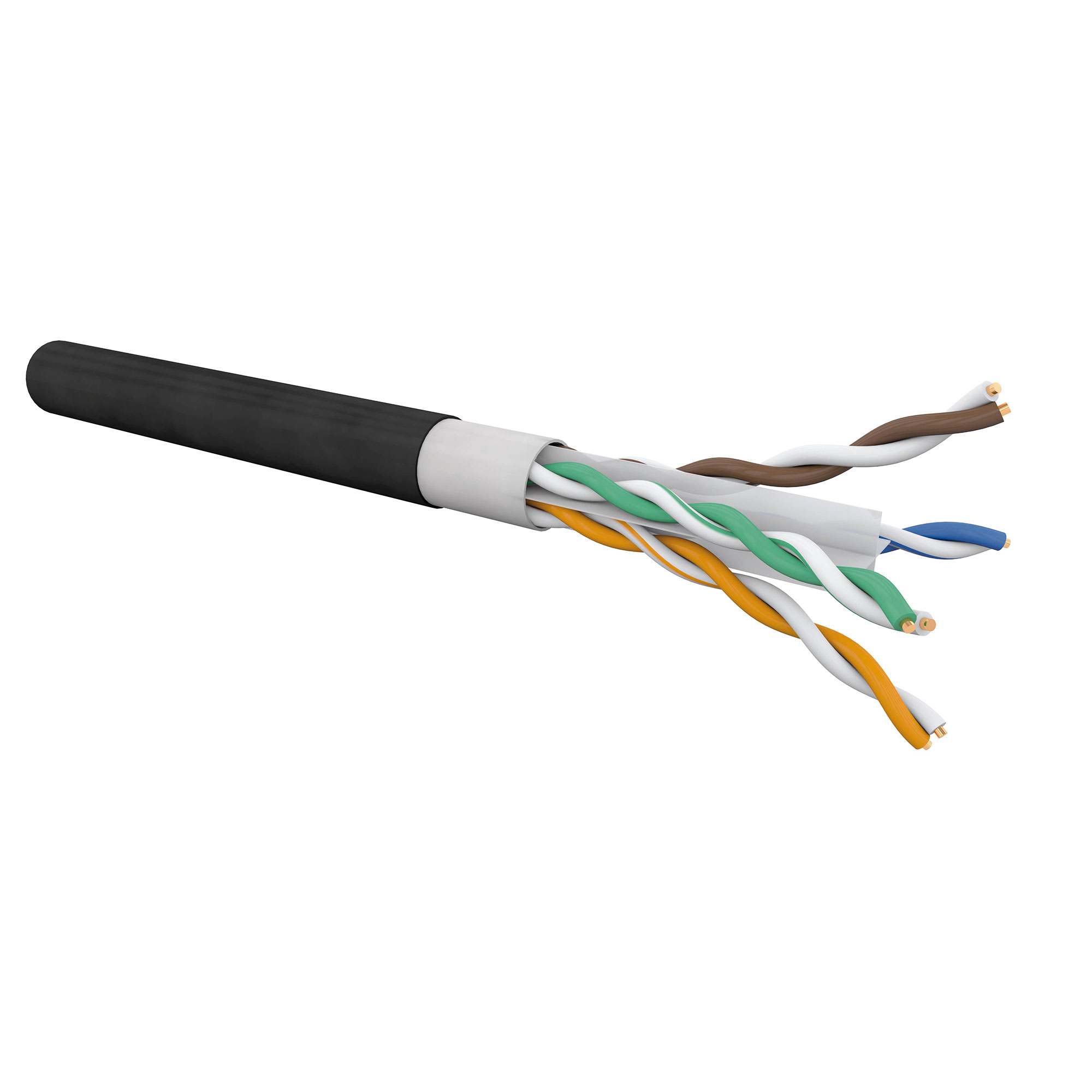

| Marking | GIGAMEDIA EN 50173 CAT6 U/UTP LSZH/PE OUTDOOR CABLE NVP 69% 4 PAIR 23AWG [lot n°] XXXXXX m |
| Packaging | 500 m drum |
ETIM 9 features
| Shield type | U/UTP |
|---|---|
| Conductor material | Copper |
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor construction | Class 1 = solid |
| Number of conductors | 8 |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Core identification according to HD 308 S2 | No |
| Conductor identification | Colour |
| Shield | None |
| Stranding | Other |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Specification material outer sheath | Polyethylene (PE) |
| Jacket colour | Black |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Low smoke according to EN IEC 61034-2 | No |
| Halogen free according to EN IEC 60754-2 | No |
| Reaction-to-fire according to EN 13501-6 | Class : None |
| Reaction-to-fire according to EN 13501-6 | Smoke production : None |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : None |
| Reaction-to-fire according to EN 13501-6 | Acidity : None |
| Oil resistant | No |
| Cable OD | 7 mm |
| Installation temperature | -30 - 60 |
| Operating temperature | -40 - 70 |
| NVP | 67 % |
| UV resistant | Yes |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | B |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
