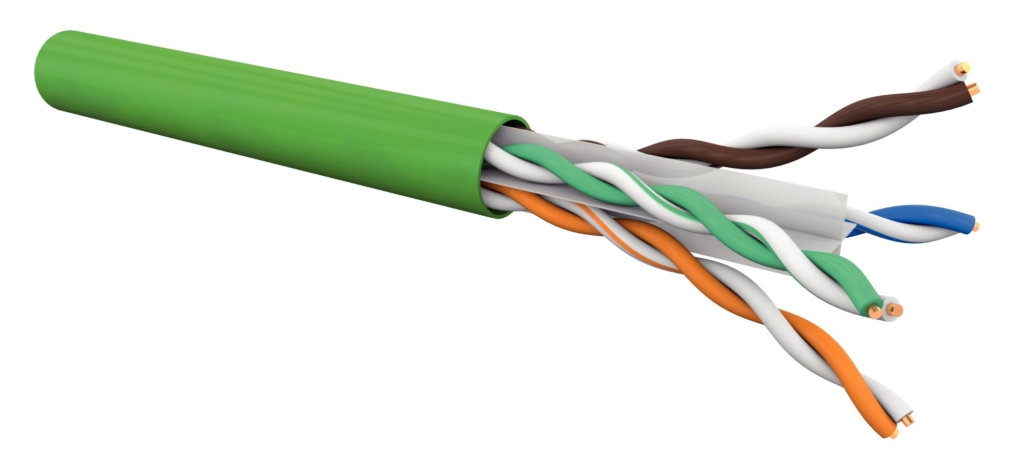

GGM C6U4PFRBT5
CABLE CAT6 4P AWG23 U/UTP LSZH-FR B2ca, GREENT500
Facilitates evacuation in case of fire! New Cat6 cable U/UTP limits flame propagation and meets the Construction Products Regulation EU 305/2011 and complies with EN 50575, certified B2ca s1a, d1,a1.
Read more
Facilitates evacuation in case of fire!
New Cat6 cable
U/UTP limits flame propagation and meets the Construction Products Regulation
EU 305/2011 and complies with EN 50575, certified B2ca s1a, d1,a1.
Product features
| Applications | IEEE802.3 : 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/UTP |
| Category | 6 |
| Standards | ISO/IEC 11801 ; EN 50173-1, EN 50173-2 et EN 50173-5 ; ISO/IEC 24764 ; IEC 61156-5 : Edition 2.0 2009-02,ISO/IEC 11801 ; EN 50173-1, EN 50173-2 et EN 50173-5 ; ISO/IEC 24764 ; IEC 61156-5 : Edition 2.0 2009-02 ; ANSI/TIA-568-C.2 |
| Frequency range | From 0 to 250 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
Article features
| Jacket type | LSZH-FR |
|---|---|
| Outer jacket colour | Green |
| Jacket RAL | RAL 6018 |
| Outer sheath diameter (mm) | 6.2 |
| NVP (%) | 67 |
| Fire behaviour | EN 13501-6 : B2ca s1a d1 a1 ; EN 50575 ; EN 50399 ; EN 60332-1-2 |
| Insulation diameter (mm) | 1 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA EN50173 CAT6 U/UTP LSZH-FR ? C6U4PFRB ? TP028A ? B2ca NVP 67% 4PAIR 23 AWG (lot n°) xxxxx m |
| Packaging | 500 m drum |
ETIM 9 features
| Shield type | U/UTP |
|---|---|
| Duplex | No |
| Conductor material | Copper |
| Conductor surface | Bare |
| Conductor OD | 0.53 mm |
| AWG size | 23 |
| Conductor construction | Class 1 = solid |
| Number of conductors | 8 |
| Number of stranding elements | 4 |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Core identification according to HD 308 S2 | No |
| Conductor identification | Colour |
| Shield | None |
| Stranding | Other |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Jacket colour | Green |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | Yes |
| Flame retardant according to IEC 60332-3-24 (Cat C) | Yes |
| Flame retardant according to IEC 60332-3-25 (Cat D) | Yes |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-1 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Halogen free according to EN IEC 60754-3 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : B2ca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s1a |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d1 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant | No |
| Cable OD | 6.2 mm |
| NVP | 67 % |
| UV resistant | No |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | B |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Suitable for use as security alarm cable | No |
| Drain wire | No |
| With rip cord | Yes |
| Rodent protected | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
