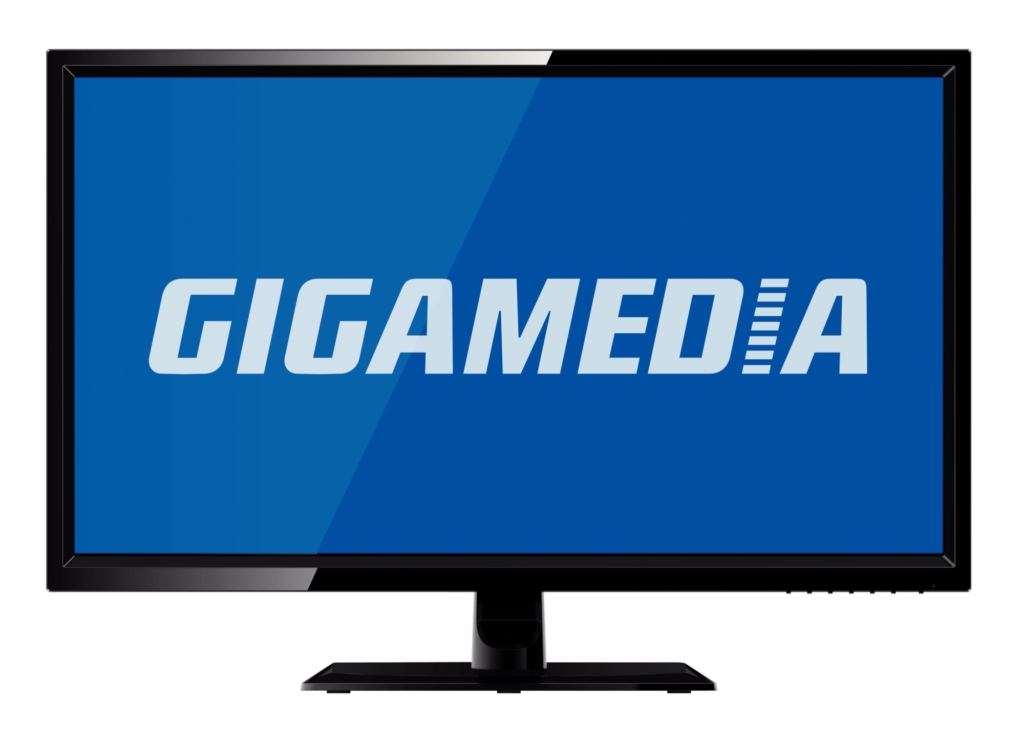

GGM CCMLCD28PP4K

28″ 4K plastic monitor for security application 24/7 working mode HDMi and DP in

Take your first steps in the 4K era with the GIGAMEDIA CCMLCD28PP4K screen. This 28″ monitor gives you an Ultra High Definition display (UHD). It is equipped with both an HDMI input and a DP input to facilitate the connection such as video-protection display sources. Its discrete design and plastic housing allow for a desktop or wall-mounted installation thanks to its VESA 100 compatibility. Powerful and easy to use, the 4K GIGAMEDIA solution will be a guarantee of success for your video protection installations.

Display Characteristics

Screen size (inches)	28
Active display Area (mm)	620.93 x 341.3
Display mode	16:9
Panel type	TFT-LED
Native Resolution (pxl)	3840 x 2160
Supported resolutions	480P,576P,720P,1080I, 1080P
Color display	1.073G
Pixel Pitch (mm)	0.1617(H)x0.1617(V)
Brightness (cd/m2)	350
Contrast	1000:1
Refresh rate	120hz
Viewing angle (H/V)	178°/178°
Response time (ms)	5
Backlight	LED
Auto On	Yes

Input & output

HDMI-CEC	No
HDMI 2.0	1
VGA	No
DP	1
USB	1
Power	220V AC
Speaker	2 x 3W

Video

Standard System	PAL/NTSC/SECAM
Osd control	Auto adjust, Brightness, Contrast, Hori/vert/ Position, Clock, phase, Color, Language
3d comb filter	Yes
Digital 3d noise reduction technology	Yes
Mounting style	Stand Mount, VESA 200 mount
Power supply (AC/DC)	220V AC
Operating temperature range	-30 +85°C
Language	English/Italian/German/French/Spainish/Portuguese/Russian
Mouting (VESA)	200
MTBF (H)	50000
Working time without interruption	24/7

Accessories

Included in the box	PSU, Screw, cable , quick start guide, HDMI
Dimensions	(mm) : 650 x 450 x 64
Weight (kg)	5
Chassis design	plastic
Warranty (year)	4

ETIM 9 features

Type of display	LCD
Colour display	Yes
Voltage type (supply voltage)	AC
Supply voltage AC 50 Hz	110 - 240
Supply voltage AC 60 Hz	110 - 240
With HW-interface video signal, analogue	No
With HW-interface digital video signal	Yes
With HW-interface USB	No
With HW-interface PS2	No
Number of colours of the display	24
Number of grey-scales/blue-scales of display	64
Number of pixels, horizontal	3840
Number of pixels, vertical	2160
With On Screen Display	Yes
Integrated keyboard	No
Number of function buttons	5
With touch screen	No
Mouse-cursor control integrated	No
IP protection	IP23
Operating temperature	00 - 50
Horizontal frequency	60 - 75
Frame frequency	60 - 75
Min. permitted supply voltage	110 V
Suitable for safety functions	Yes
Width	659.15 mm
Height	380.16 mm
Depth	47.3 mm
