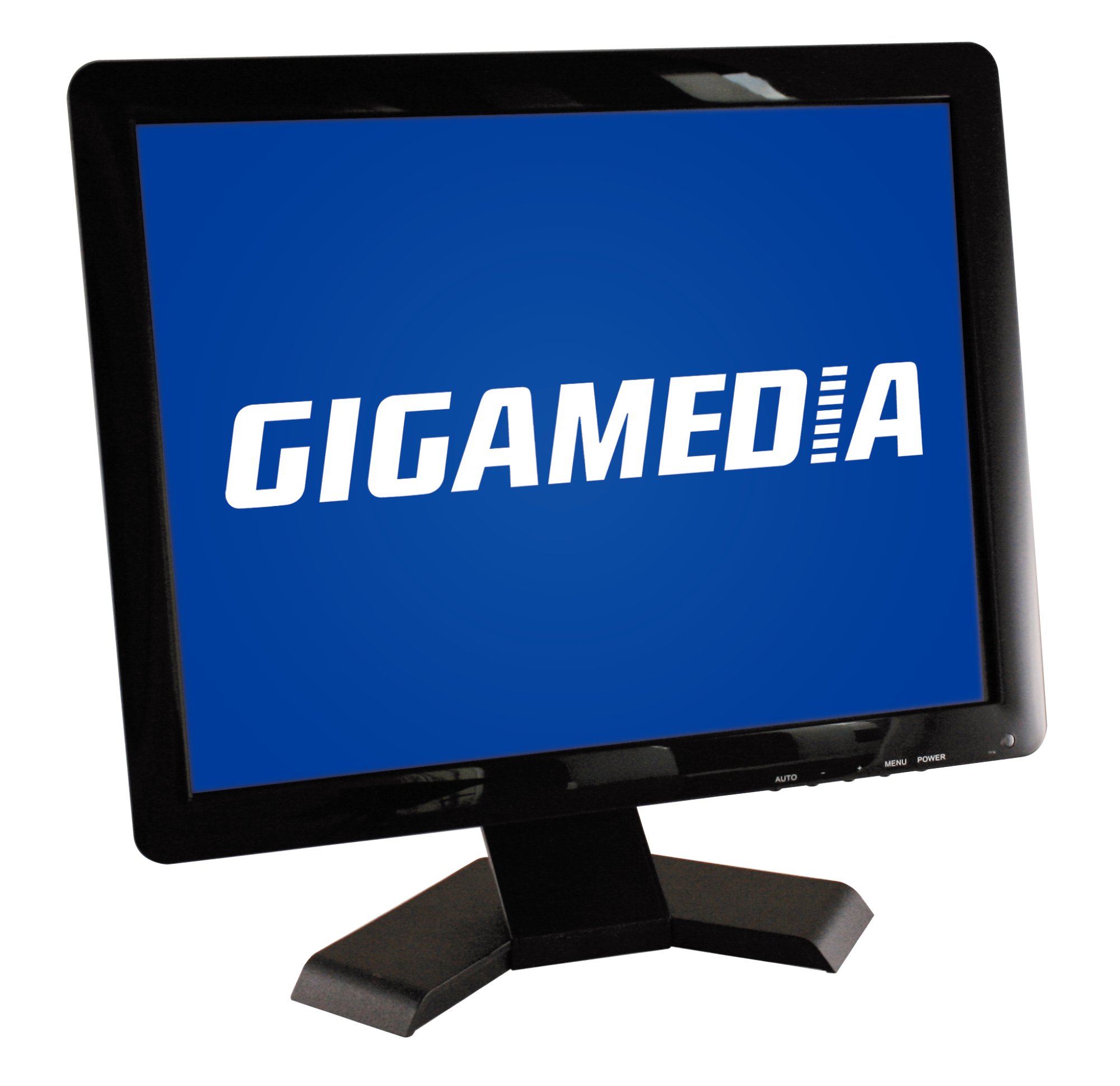

GGM CCMLCD15PPL

LCD MONITOR 15 INCH PLASTIC

The GIGAMEDIA GGM CCMLCD15PPL CCTV monitor is designed to comply with the requirements of the CCTV video protection market. The input connections, BNC, VGS, HDMI meet the requirements of the majority of recording systems. The OSD (On Screen Display) allows you to properly adjust the image quality. The LED technology delivers high quality with a viewing angle up to 140° (Horizontal) and guarantees a clean and pleasing view whether the GIGAMEDIA monitors are on a desk or wall mounted. Their sober and discrete design allows them to be integrated into any environment (office, reception area, shop ...).

Display Characteristics

Screen size (inches)	15
Active display Area (mm)	304.128 × 228.09
Display mode	4:3
Panel type	TFT-LED
Native Resolution (pxl)	1024 × 768
Supported resolutions	480P,576P,720P
Color display	16.7M
Pixel Pitch (mm)	0.248(H) x 0.248 ( H)
Brightness (cd/m2)	250
Contrast	700:1
Refresh rate	75 hz
Viewing angle (H/V)	178°/178°
Response time (ms)	5
Backlight	LED
Auto On	No

Input & output

HDMI-CEC	No
HDMI 2.0	1
VGA	Yes
BNC IN	2
Bnc output	1
USB	1
Power	12 VDC
Speaker	2 x 3W

Video

Standard System	PAL/NTSC/SECAM
Osd control	Brightness, Contrast, Hori/vert/ Position, Clock, phase, Color, Language
3d comb filter	Yes
Digital 3d noise reduction technology	Yes
Mounting style	Stand Mount, VESA 75 mount
Power supply (AC/DC)	12 VDC
Operating temperature range	-30 +85°C
Language	English/Italian/German/French/Spainish/Portuguese/Russian
Mouting (VESA)	75
MTBF (H)	50000
Working time without interruption	24/7

Accessories

Included in the box	PSU, Screw, cable , quick start guide, VGA
Dimensions	(mm) : 320 x 280 x 45
Weight (kg)	2
Chassis design	plastic
Warranty (year)	4

ETIM features

Type of display	LCD
Resolution	Full HD
Housing colour	Black
With display backlight	No
Colour display	Yes
Visible diagonal screen size (inch)	15.4 "
Image format	Other
With on-screen keyboard	No
With touch screen	No
Mouse-cursor control integrated	No
Voltage type (supply voltage)	DC
Number of HDMI connections	1
Number of BNC connections	2
VGA-connection (D-Sub 15-pole)	Yes
Number of ports USB-A	1
With HW-interface PS2	No
Operating temperature	00 - 50
Horizontal frequency	60 - 75
Frame frequency	60 - 75
Freestanding	Yes
Suitable for rail mounting	No
Wall mounting/direct mounting	Yes
Front built-in possible	No
Rack-assembly possible	No
Suitable for safety functions	Yes
Degree of protection (IP)	IP20
Width	349.5 mm
Height	274.5 mm
Depth	43.5 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
