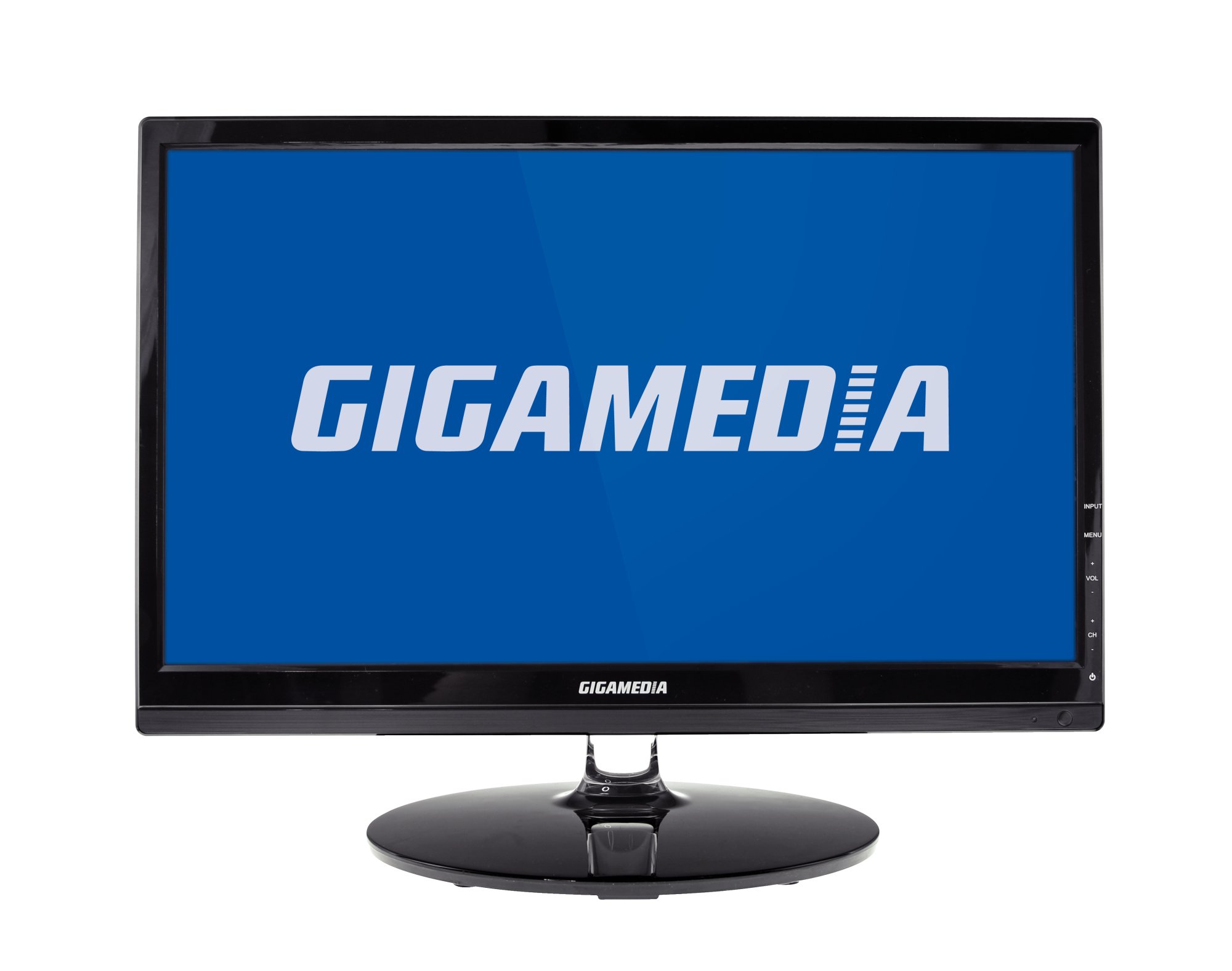

GGM CCMLCD21PPAHD

MONITOR AHD 21P PLASTIC

The GIGAMEDIA GGM CCMLCD21PPAHD screen is an LED monitor dedicated to professional applications. It is designed to operate 24/7. Its connections allow it to respond to the majority of products on the market for a display that is FULL HD 1080p. The new addition is the BNC connector capable of directly displaying AHD data 720p and 1080p coming from a camera without passing via a recorder. This screen has a wide opening angle (170°/160°) for comfortable viewing no matter what position you are in. It can be desk mounted or fixed to a wall, respecting the VESA 100 standard.

Display Characteristics

Screen size (inches)	22
Active display Area (mm)	476.64 x 268.11
Display mode	16:9
Panel type	TFT-LED
Native Resolution (pxl)	1920 x 1080
Supported resolutions	480P,576P,720P,1080I, 1080P
Color display	16.7M
Pixel Pitch (mm)	0.248(H) x 0.248 ( H)
Brightness (cd/m2)	250
Contrast	1000:1
Refresh rate	75 hz
Viewing angle (H/V)	178°/178°
Response time (ms)	5
Backlight	LED
Auto On	No

Input & output

HDMI-CEC	No
HDMI 2.0	1
VGA	Yes
BNC IN	1
Bnc output	1
BNC compatible with HD CCTV	1
USB	1
Power	12 VDC
Speaker	2 x 3W

Video

Standard System	PAL/NTSC/SECAM
Osd control	Brightness, Contrast, Hori/vert/ Position, Clock, phase, Color, Language
3d comb filter	Yes
Digital 3d noise reduction technology	Yes
Mounting style	Stand Mount, VESA 100 mount
Power supply (AC/DC)	12 VDC
Operating temperature range	-30 +85°C
Language	English/Italian/German/French/Spainish/Portuguese/Russian
Mouting (VESA)	100
MTBF (H)	50000
Working time without interruption	24/7

Accessories

Included in the box	PSU, Screw, cable , quick start guide
Dimensions	(mm) : 580 x 310 x 48
Weight (kg)	3.5
Chassis design	plastic
Warranty (year)	4

ETIM 9 features

Type of display	LCD
Colour display	Yes
Voltage type (supply voltage)	DC
Supply voltage DC	12 - 24
With HW-interface video signal, analogue	Yes
With HW-interface digital video signal	Yes
With HW-interface USB	No
With HW-interface PS2	No
Number of colours of the display	24
Number of grey-scales/blue-scales of display	64
Number of pixels, horizontal	1920
Number of pixels, vertical	1080
With On Screen Display	Yes
Integrated keyboard	No
Number of function buttons	5
With touch screen	No
Mouse-cursor control integrated	No
IP protection	IP23
Operating temperature	00 - 50
Horizontal frequency	60 - 75
Frame frequency	60 - 75
Min. permitted supply voltage	12 V
Suitable for safety functions	Yes
Width	508.35 mm
Height	305.93 mm
Depth	47.2 mm
