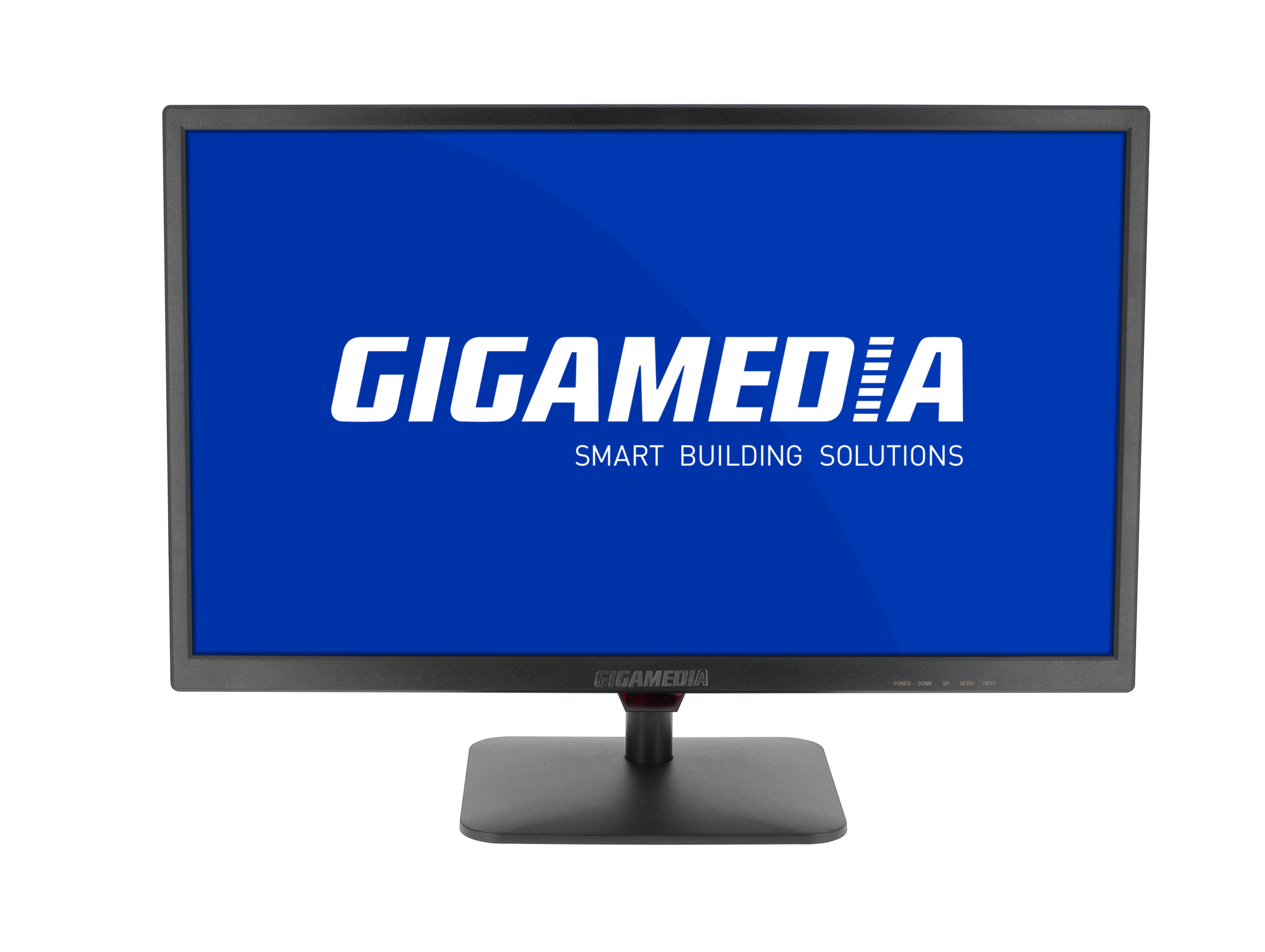

GGM CCMLCD24PPHV

24″ plastic monitor Full HD resolution 1080P HDMI/VGA 24/7 working mode

The GIGAMEDIA CCMLCD24PPHV monitor is a monitor dedicated to security applications. It can display image resolution up to 1080P (1920 x 1080). It is designed for 7 days a week, 24 hours a day operation. Its LED technology allows high quality display and color rendering. Its 178° viewing angle allows perfect viewing even from the side. Its HDMI/VGA inputs allow you to connect a large number of peripherals. Its size allows it to be installed on a desk with its supplied stand or to be fixed on a wall bracket using its VESA 100 mounting system. It also has 2…

The GIGAMEDIA CCMLCD24PPHV monitor is a monitor dedicated to security applications. It can display image resolution up to 1080P (1920 x 1080). It is designed for 7 days a week, 24 hours a day operation.
Its LED technology allows high quality display and color rendering.
Its 178° viewing angle allows perfect viewing even from the side.

Its HDMI/VGA inputs allow you to connect a large number of peripherals. Its size allows it to be installed on a desk with its supplied stand or to be fixed on a wall bracket using its VESA 100 mounting system.
It also has 2 speakers of 3W each.

The GIGAMEDIA screen is a major essential asset for your security applications

Display Characteristics

Screen size (inches)	24
Active display Area (mm)	521.28 x 293.22
Display mode	16:9
Panel type	TFT-LED
Native Resolution (pxl)	1920 x 1080
Supported resolutions	480P,576P,720P,1080I, 1080P
Color display	16.7M
Pixel Pitch (mm)	0.248(H)x0.248(V)
Brightness (cd/m2)	250
Contrast	1000:1
Refresh rate	75 hz
Viewing angle (H/V)	178°/178°
Response time (ms)	5
Backlight	LED
Auto On	Yes

Input & output

HDMI-CEC	No
HDMI 2.0	1
VGA	Yes
USB	1
Power	12 VDC
Speaker	2 x 3W

Video

Standard System	PAL/NTSC/SECAM
Osd control	Ajustement automatique, Luminosité, Contrast, Position H/V, horloge, Phase, Couleur,Langue
3d comb filter	Yes
Digital 3d noise reduction technology	Yes
Mounting style	Stand Mount, VESA 100 mount
Power supply (AC/DC)	12 VDC
Operating temperature range	-30 +85°C
Language	English/Italian/German/French/Spainish/Portuguese/Russian
Mouting (VESA)	100
MTBF (H)	50000
Working time without interruption	24/7

Accessories

Included in the box	PSU, Screw, cable , quick start guide, HDMI
Dimensions	(mm) : 550 x 400 x 49
Weight (kg)	3.8
Chassis design	plastic
Warranty (year)	4

ETIM features

Type of display	LCD
Resolution	Full HD
Housing colour	Black
With display backlight	No
Colour display	Yes
Image format	16:9
With on-screen keyboard	No
With touch screen	No
Mouse-cursor control integrated	No
Supply voltage DC	12 - 12
Voltage type (supply voltage)	DC
Number of HDMI connections	1
VGA-connection (D-Sub 15-pole)	Yes
Number of ports USB-A	1
With HW-interface PS2	No
Operating temperature	00 - 50
Horizontal frequency	60 - 75
Frame frequency	60 - 75
Freestanding	Yes
Suitable for rail mounting	No
Wall mounting/direct mounting	Yes
Front built-in possible	No
Rack-assembly possible	No
Suitable for safety functions	Yes
Degree of protection (IP)	IP20
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
