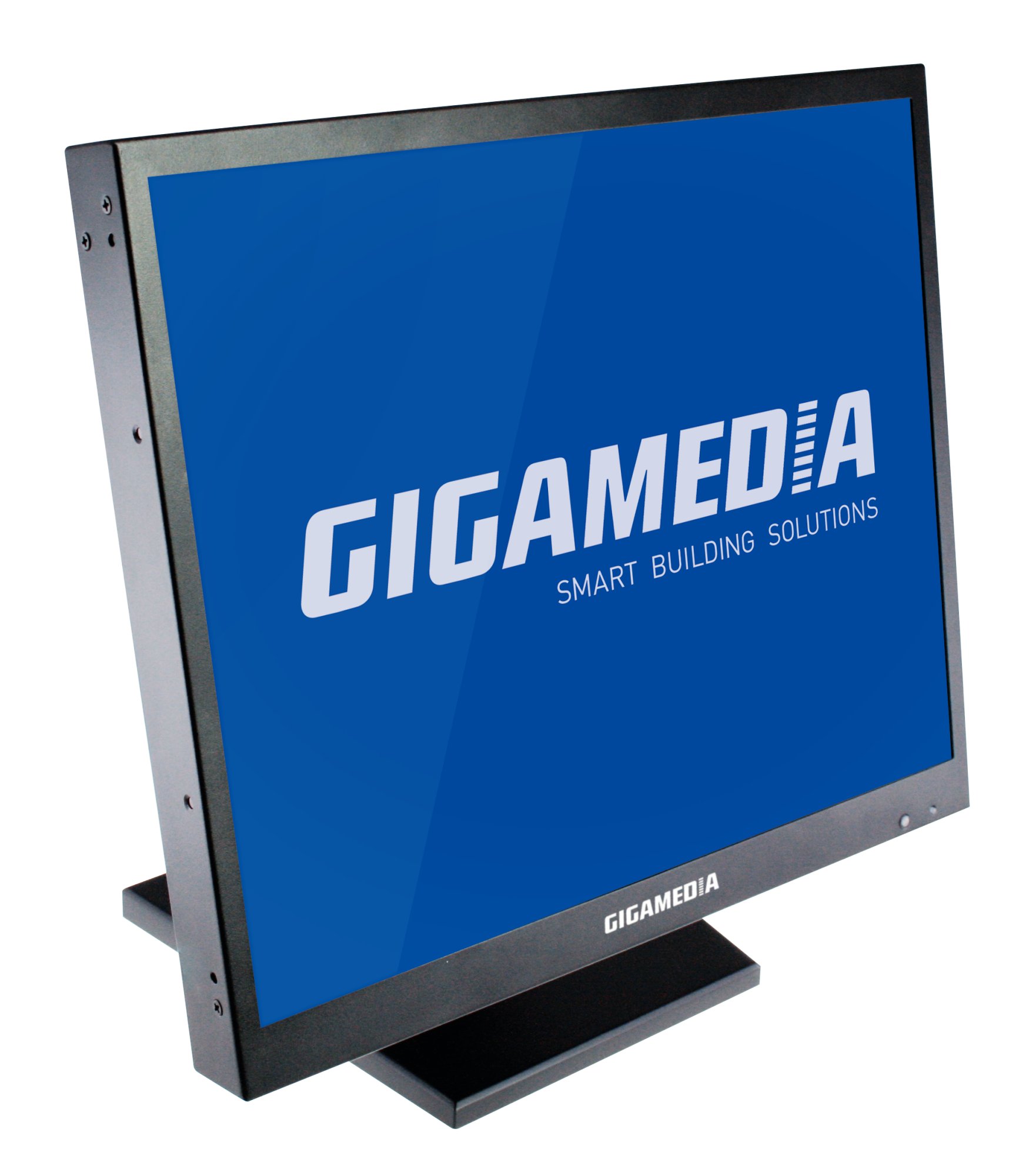

GGM CCMLCD17PM

LCD MONITOR 17INCH METAL CCTV

The GIGAMEDIA GGM CCMLCD17PM CCTV monitor is designed to comply with the requirements of the CCTV video protection market. The input connections, BNC, VGS, HDMI meet the requirements of the majority of recording systems. The OSD (On Screen Display) allows you to properly adjust the image quality. The LCD TFT technology delivers high quality with a viewing angle up to 170° (Horizontal) and guarantees a clean and pleasing view whether the GIGAMEDIA monitors are desk mounted or on the wall. Their sober and discrete design allows them to be integrated into any environment (office, reception area, shop ...).

Display Characteristics

Screen size (inches)	17
Active display Area (mm)	337.92 × 270.33
Display mode	4:3
Panel type	TFT-LED
Native Resolution (pxl)	1280 × 1024
Supported resolutions	480P,576P,720P
Color display	16.7M
Pixel Pitch (mm)	0.264(H)× 0.264(V)
Brightness (cd/m2)	250
Contrast	1000:1
Refresh rate	75 hz
Viewing angle (H/V)	178°/178°
Response time (ms)	5
Backlight	LED
Auto On	No

Input & output

HDMI-CEC	No
HDMI 2.0	1
VGA	Yes
BNC IN	2
Bnc output	1
USB	1
Power	12 VDC
Speaker	2 x 3W

Video

Standard System	PAL/NTSC/SECAM
Osd control	Brightness, Contrast, Hori/vert/ Position, Clock, phase, Color, Language
3d comb filter	Yes
Digital 3d noise reduction technology	Yes
Mounting style	Stand Mount, VESA 75 mount
Power supply (AC/DC)	12 VDC
Operating temperature range	-30 +85°C
Language	English/Italian/German/French/Spainish/Portuguese/Russian
Mouting (VESA)	75
MTBF (H)	50000
Working time without interruption	24/7

Accessories

Included in the box	PSU, Screw, cable , quick start guide, VGA
Dimensions	(mm) : 410 x 380 x 55
Weight (kg)	5
Chassis design	metal
Warranty (year)	4

ETIM 9 features

Type of display	LCD
Colour display	Yes
Voltage type (supply voltage)	DC
Supply voltage DC	12 - 24
With HW-interface video signal, analogue	Yes
With HW-interface digital video signal	Yes
With HW-interface USB	No
With HW-interface PS2	No
Number of colours of the display	24
Number of grey-scales/blue-scales of display	64
Number of pixels, horizontal	1280
Number of pixels, vertical	1024
With On Screen Display	Yes
Integrated keyboard	No
Number of function buttons	5
With touch screen	No
Mouse-cursor control integrated	No
IP protection	IP23
Operating temperature	00 - 50
Horizontal frequency	60 - 75
Frame frequency	60 - 75
Min. permitted supply voltage	12 V
Suitable for safety functions	Yes
Width	361 mm
Height	312 mm
Depth	69 mm
