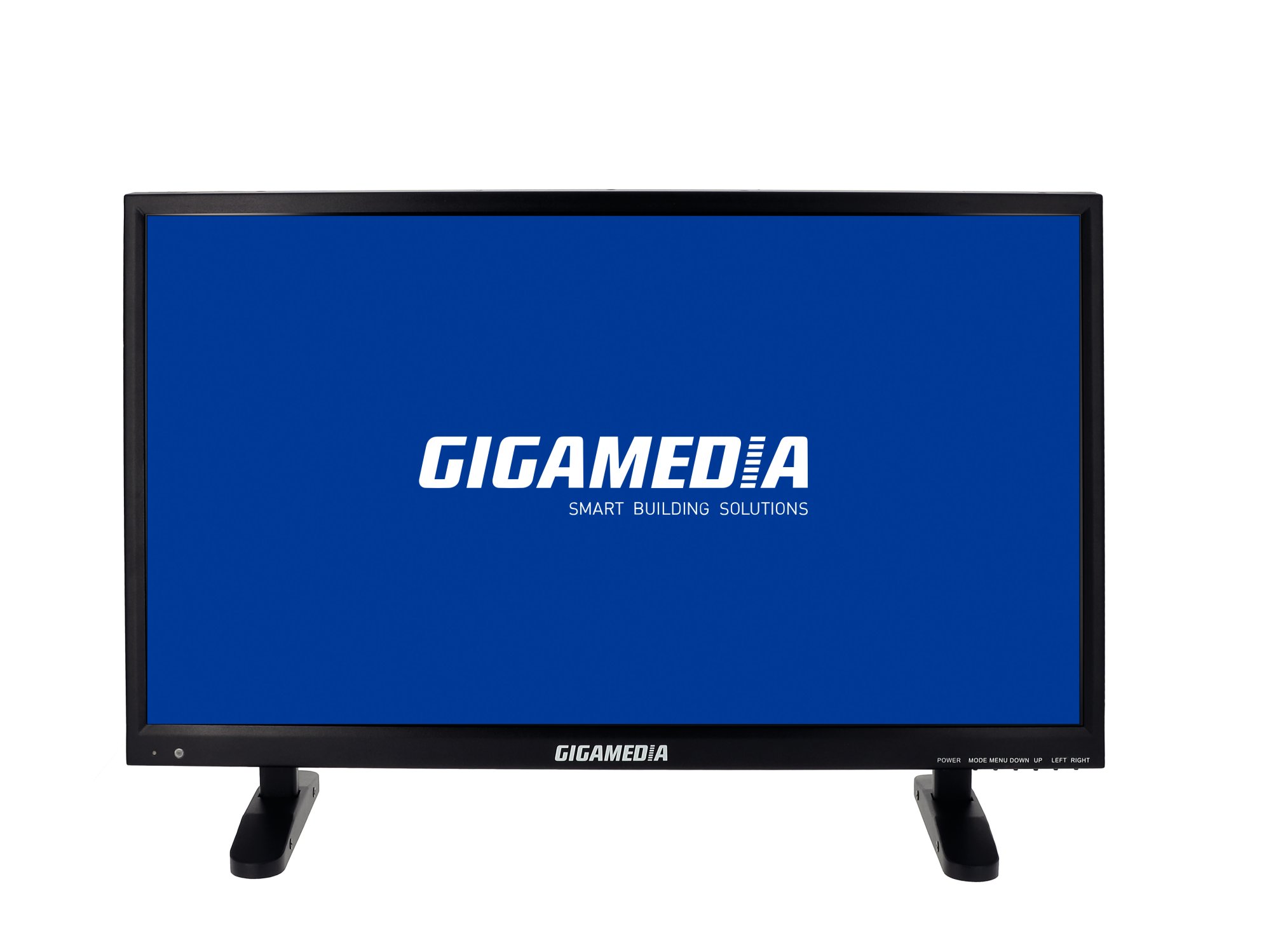

GGM CCMLCD28PM4K

28″ 4K METAL HDMI VGA DVI DP MONITOR

This 28″ screen has a metal housing to resist severe environments. It can display an image of very high quality with 4K (UHD) resolution. It has HDMI/DVI/VGA and DP video inputs allowing the majority of videos to be displayed from video surveillance market. Its reinforced electronics as well as software for protecting the screen from marking enables it to operate 24/7 for your security operations. Its high contrast as well as extra wide viewing angle at 178° allows it to be installed in numerous positions.

Display Characteristics

Screen size (inches)	28
Active display Area (mm)	620.9 × 341.3
Display mode	16:9
Panel type	TFT-LED
Native Resolution (pxl)	3840 x 2160
Supported resolutions	480P,576P,720P,1080I, 1080P
Color display	1.073G
Pixel Pitch (mm)	0.1617(H)×0.1617(V)
Brightness (cd/m2)	350
Contrast	1000:1
Refresh rate	120hz
Viewing angle (H/V)	178°/178°
Response time (ms)	5
Backlight	LED
Auto On	Yes

Input & output

HDMI-CEC	No
HDMI 2.0	1
VGA	Yes
DP	1
USB	1
Power	220V AC
Speaker	2 x 3W

Video

Standard System	PAL/NTSC/SECAM
Osd control	Brightness, Contrast, Hori/vert/ Position, Clock, phase, Color, Language
3d comb filter	Yes
Digital 3d noise reduction technology	Yes
Mounting style	Stand Mount, VESA 200 mount
Power supply (AC/DC)	220V AC
Operating temperature range	-30 +85°C
Language	English/Italian/German/French/Spainish/Portuguese/Russian
Mouting (VESA)	200
MTBF (H)	50000
Working time without interruption	24/7

Accessories

Included in the box	PSU, Screw, cable , quick start guide, HDMI
Dimensions	(mm) : 640 x 380 x 60
Weight (kg)	12
Chassis design	metal
Warranty (year)	4

ETIM features

Type of display	LCD
Resolution	4K UHD
Housing colour	Black
With display backlight	No
Colour display	Yes
Number of colours of the display	24
Number of grey-scales/blue-scales of display	64
Number of pixels, horizontal	3840
Number of pixels, vertical	2160
With on-screen keyboard	No
With touch screen	No
Mouse-cursor control integrated	No
Supply voltage AC 50 Hz	110 - 240
Supply voltage AC 60 Hz	110 - 240
Voltage type (supply voltage)	AC
Number of HDMI connections	1
Number of inputs DisplayPort (DP)	1
VGA-connection (D-Sub 15-pole)	No
Number of ports USB-A	1
With HW-interface PS2	No
Operating temperature	00 - 50
Horizontal frequency	60 - 75
Frame frequency	60 - 75
Freestanding	Yes
Suitable for rail mounting	No
Wall mounting/direct mounting	Yes
Front built-in possible	No
Rack-assembly possible	No
Suitable for safety functions	Yes
Degree of protection (IP)	IP23
Width	675 mm
Height	387 mm
Depth	90 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
