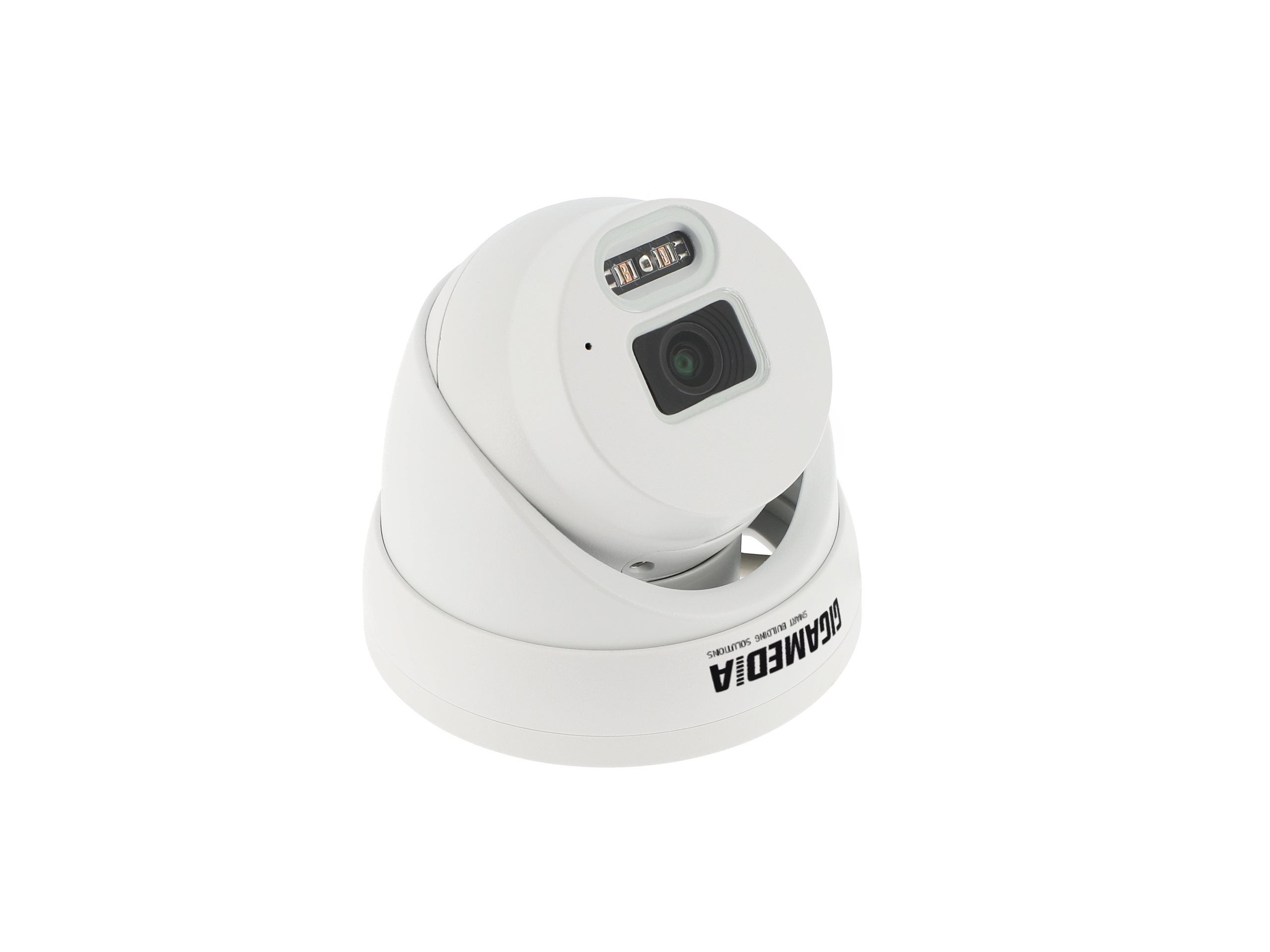

GGM IPCDA4F28
IP PoE Turret camera resolution 4MP IR 25m lens 2.8 mm built-in mic, IP67 Onvif
GIGAMEDIA cameras provide an excellent ratio price/performance for your surveillance projects. The IPCDA4F28 is an entry level turret dome camera with 2.8mm lens and infrared that can go up to 25m. This device can be installed in indoor or outdoor use thanks to the IP67 rating. A large space can be covered by the camera thanks to the large angle of view It also embbeds limited analytics functions for pro-active surveillance: Human and vehicule detection Perimeter intrusion detection Crossing line detection Zone entry Zone exit Built-in mic permits remote removal of doubt That camera is a good choice for very…
Read more
GIGAMEDIA cameras provide an excellent ratio price/performance for your surveillance projects.
The IPCDA4F28 is an entry level turret dome camera with 2.8mm lens and infrared that can go up to 25m.
This device can be installed in indoor or outdoor use thanks to the IP67 rating.
A large space can be covered by the camera thanks to the large angle of view
It also embbeds limited analytics functions for pro-active surveillance:
Built-in mic permits remote removal of doubt
That camera is a good choice for very small installation such has home use and small shops
The IPCDA4F28 is an entry level turret dome camera with 2.8mm lens and infrared that can go up to 25m.
This device can be installed in indoor or outdoor use thanks to the IP67 rating.
A large space can be covered by the camera thanks to the large angle of view
It also embbeds limited analytics functions for pro-active surveillance:
- Human and vehicule detection
- Perimeter intrusion detection
- Crossing line detection
- Zone entry
- Zone exit
Built-in mic permits remote removal of doubt
That camera is a good choice for very small installation such has home use and small shops
| Camera type | Dome turret |
|---|
Information system
| CPU | NT98562 |
|---|---|
| Flash memory | 16MB NOR |
| RAM | 64MB |
Technical features
| Sensor | SC401AI 1/3" CMOS progressive |
|---|---|
| Sensor max. resolution | 2560 x 1440 |
| Lens type | fixed |
| Focal lenght (mm) | 2.8 mm |
| Aperture | F1.6 |
| Auto iris | Fixed Iris |
| Horizontal viewing angle (°) | 96° |
| Vertical viewing angle (°) | 52° |
| Diagonal viewing angle (°) | 113° |
| Micro SD card slot | Yes |
| Digital input | No |
| Digital output | No |
| Audio in | No |
| Audio out | No |
| Built in microphone | Yes |
| Built-in speaker | No |
| Reset Button | Yes |
| POE | 802.3 af |
| Shutter speed | 1/5 - 1/20000s |
| Wdr (wide dynamic range) | D-WDR |
| Day/Night | Yes |
| Day / night switch | Automatic, manual, schedule |
| Minimum illumination | Color 0.004lux @ F1.6(AGC ON), N/B 0 lux @ IR ON |
| IR Range | 25 m |
| Embedded storage | micro SD card slot up to 256 Gb |
Video
| Video compression | H.265 and H.264 |
|---|---|
| Resolution and framerate | 2560 x 1440 @25 fps |
| Stream | 2 simultaneous streams |
| SNR | 40 |
| Day/ Night mode | Yes |
| IR management | Yes |
| Picture flip/ mirror | Yes |
| Corridor mode | No |
| BLC | Yes |
| HLC | Yes |
| 3D noise reduction | Yes |
| Image setting | Contrast, Brightness, Saturation, Sharpness, Hue, White balance |
| WDR management | No |
| Privacy mask | 4 zones |
| Defog | No |
| ROI | No |
Network
| Simultaneous connection on web | 5 |
|---|---|
| Supported protocols | TCP/IP, PPPoE, DNS, IPv4/IPv6, UDP, DDNS, NTP, FTP, RTP/RTSP, SMTP, HTTP, DHCP, HTTPS, SNMP, UPnP |
| Interface | RJ-45 10/100 Mbps |
| Onvif version/Profile | ONVIF (Profile S/G/T/M) |
PTZ
| 3D Positioning | No |
|---|---|
| Smart tracking | No |
Analytics
| Face detection | No |
|---|---|
| Human and vehicle detection | Yes |
| Perimeter Detection Intrusion | Yes |
| Crossing Line Detection | No |
| Stationnary Object Detection | No |
| Cross Counting | No |
| Heat Map | No |
| Crowd Density Detection | No |
| Queue length detection | No |
| Licence plate Detection | No |
| Rare Sound Detection | No |
Alarm and event
| Motion Detection | Yes |
|---|---|
| Manual triggering | No |
| Periodical Trigger | Yes |
| System boot | Yes |
| Recording notification | Yes |
| Camera tamper detection | Yes |
| Alarm action | Yes |
| Flash Alarm | No |
| Event notification using HTTP, SMTP, FTP, NAS server | Yes |
| File upload via HTTP, SMTP, FTP, NAS server and MicroSD card | Yes |
General information
| Connector | RJ-45, 12VDC |
|---|---|
| Power supply | PoE (802.3af) ou 12 VDC |
| Power Consumption | 4 W |
| Diameter (mm) | 100 |
| Height (mm) | 90 |
| Weight (kg) | 0.3 |
| Material | Plastic + metal |
| IP Protection | IP67 |
| Operating temperature range | from -35 to 60°C |
| Storage Temperature (°C) | De -35 à 60°C |
| Operating Humidity (% - non condensing) | 95% |
| Warranty period | 24 |
OS and required configuration
| OS | Microsoft Windows, MAC |
|---|---|
| Web browser | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
ETIM features
| Model | Standard (Fixed) |
|---|---|
| Construction type | Turret shape |
| Thermal camera | No |
| Number of pixels (Megapixel) | 4 |
| With lens | Yes |
| Modular (lens and camera separated) | No |
| Focal size | 2,8 - 2,8 |
| Shutter control | DC |
| Motor zoom | No |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for surface mounting | Yes |
| Flush-mounted installation/built-in installation | No |
| Suitable for outdoor use | Yes |
| Communication medium wired | Yes |
| Type of transmission medium | Twisted Pair |
| Type of interface | None |
| Protocol | TCP/IP |
| Power over Ethernet (PoE) | 802.3 af (PoE) |
| Picture system | NTSC |
| Property picture system | Colour |
| With infrared lighting | Yes |
| With video motion detector | Yes |
| Memory capacity | 256 Go |
| HDMI-connection | No |
| Mini HDMI-connection | No |
| VGA-connection (D-Sub 15-pole) | No |
| DVI-connection | No |
| BNC-connection | No |
| DisplayPort-connection | No |
| Mini DisplayPort | No |
| S-Video-connection | No |
| USB-C-connection | No |
| Vandal proof | No |
| Impact strength | None |
| Degree of protection (IP) | IP67 |
| Horizontal field of view | 96 - 96 |
| Vertical field of view | 52 - 52 |
| Power consumption | 8 W |
| Supply voltage | 12 - 12 |
| Voltage type | DC |
| Colour | White |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
