GGM C6AUF4PPET3

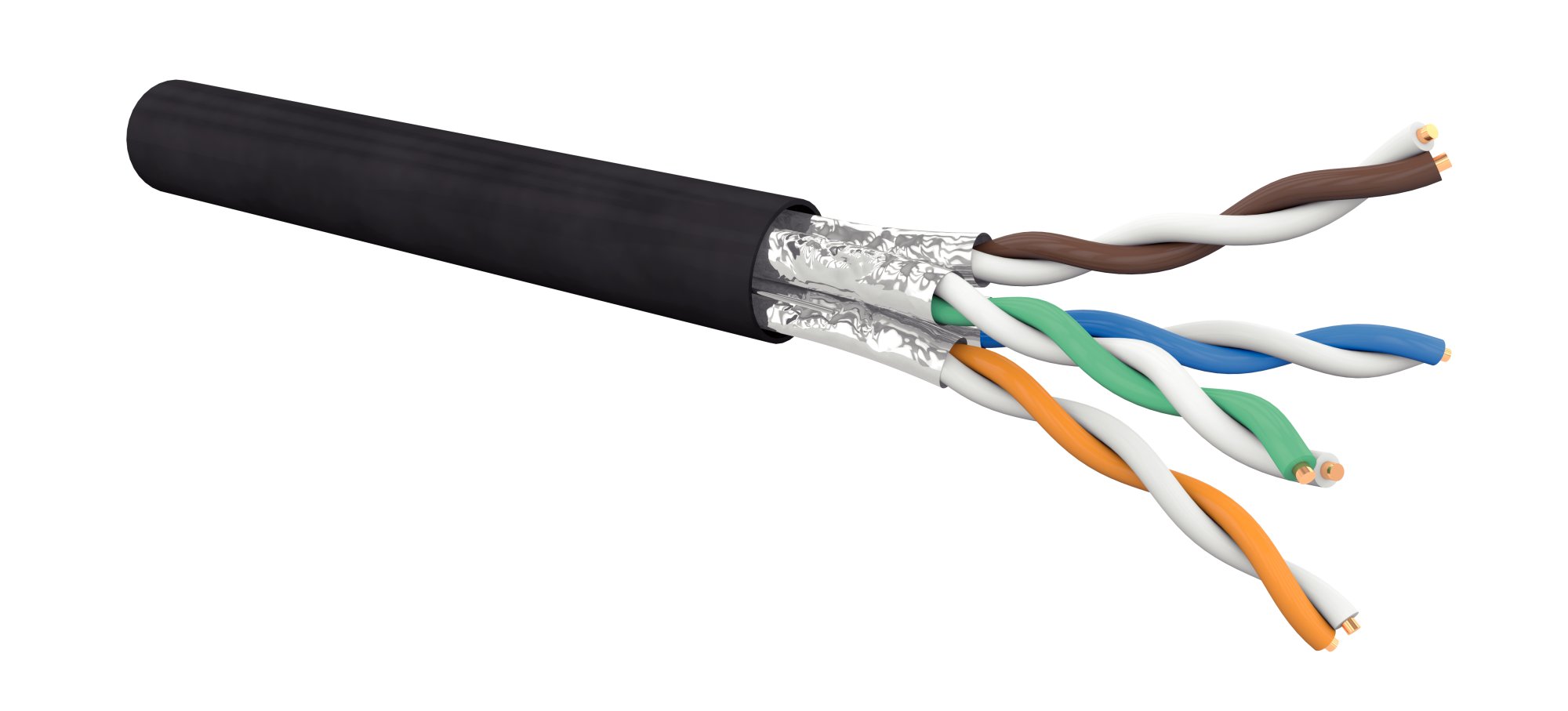

CAT6A 4P UFTP AWG23 PE BLACK EXTERNAL GRADE

This cable is designed to exceed the Class EA performance (Category 6A) and supports applications up to 10 Gigabit Ethernet (10GBaseT-T). Equipped with a polyethylene sheath it is especially suited for outdoor use. Its screening in pairs optimises its crosstalk performance (NEXT) Associated with Gigamedia CAT6A connectors, you have a high performance solution from the latest twisted pairs technology.

Applications	IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	U/FTP
Category	6A
Standards	ISO/IEC 11801 Ed.2.2 ; EN 50173-1, EN 50173-2 et EN 50173-5 ; ISO/IEC 24764 ; IEC 61156-5 : Edition 2.0 2009-02 ; ANSI/TIA-568-C.2
Frequency range	From 0 to 500 Mhz
Impedance	100
Gauge (awg)	23
Conductor type	Solid copper
Number of pairs	1X4
Jacket type	PVC
Outer jacket colour	Black
Jacket RAL	RAL 9005
Outer sheath diameter (mm)	7.5
NVP (%)	74
Fire behaviour	N/A
Insulation diameter (mm)	1.33
Insulation Material	Polyethylene
Marking	GIGAMEDIA VERIFIED ANSI/TIA-568-C.2 CATEGORY 6A U/FTP PE OUTDOOR CABLE NVP 68% 4 PAIR 23 AWG {Lot n° } xxxx m
Packaging	305 m drum

ETIM features

Cable type	U/FTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Diameter conductor	0.55 mm
Nominal cross section conductor	0.238 mm²
AWG size	23
Conductor category	Class 1 = solid
Number of cores	8
Number of stranding elements	4
Stranding element	Pairs
Material core insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	Foil
Stranding	Other
Screen over stranding	None
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	No
Approved type of underground installation	Underground installation tube
Specification material outer sheath	Polyethylene (PE)
Colour outer sheath	Black
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	No
Flame retardant according to IEC 60332-3-25 (Cat D)	No
Low smoke according to EN IEC 61034-2	No
Halogen free according to EN IEC 60754-2	No
Reaction-to-fire according to EN 13501-6	Class : None
Reaction-to-fire according to EN 13501-6	Smoke production : None
Reaction-to-fire according to EN 13501-6	Flaming droplets/particles : None
Reaction-to-fire according to EN 13501-6	Acidity : None
Oil resistant according to EN IEC 60811-404	No
Outer diameter approximate	7.5 mm
Permitted cable outer temperature during assembling/handling	-30 - 60
Permitted cable outer temperature after assembling without vibration	-40 - 70
NVP value	74 %
Certified for shipboard application	No
Segregation class according to EN 50174-2	C
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Suitable for use as security alarm cable	No
Drain wire	Yes
With rip cord	Yes
Characteristic impedance	100 Ohm
With rodent protection	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
