GGM C6AFF4PFRWBPET3

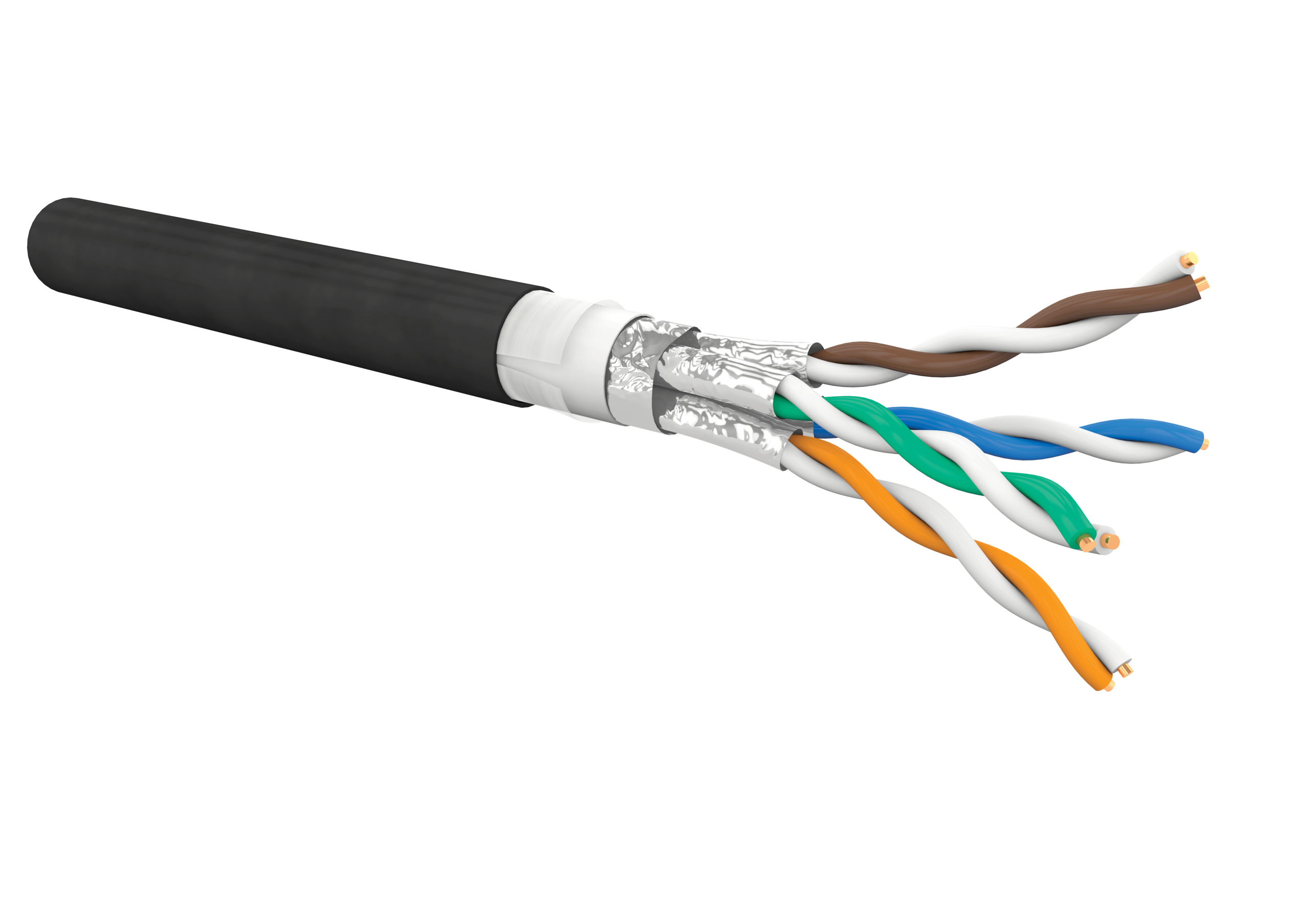

CAT6A F/FTP AWG23 4P LSZH-FR Cca/PE with water block tape, 305m drum
This cable has been designed to exceed the ISO/IEC, TIA and CENELEC component requirements for Category 6A/Augmented Category 6, and delivers Class EA link performance over distances of up to 90 m. When associated with Gigamedia high performance RJ45 connectivity, it supports highbitrate applications such as 10 Gigabit Ethernet, along with the remote power supply of equipment up to 90 W (4PPoE). With its LSZH/PE double jacket, it is particularly suitable for outdoor installations, while its waterblocking tape offers gel-free watertightness, thus reducing cable preparation time. Direct buried cable according EN 50289-3. It can also be installed indoors once the…
Read more
This cable has been designed to exceed the ISO/IEC, TIA and CENELEC component requirements for Category 6A/Augmented Category 6, and delivers Class EA link performance over distances of up to 90 m.
When associated with Gigamedia high performance RJ45 connectivity, it supports highbitrate applications such as 10 Gigabit Ethernet, along with the remote power supply of equipment up to 90 W (4PPoE).
With its LSZH/PE double jacket, it is particularly suitable for outdoor installations, while its waterblocking tape offers gel-free watertightness, thus reducing cable preparation time.
Direct buried cable according EN 50289-3.
It can also be installed indoors once the PE outer jacket has been withdrawn.
Product features
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | F/FTP |
| Category | 6A |
| Standards | IEC 61156-5, ANSI/TIA-568.2-D, EN50288-6-1 |
| Frequency range | From 0 to 500 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
Article features
| Jacket type | PE |
|---|---|
| Outer jacket colour | Black |
| Jacket RAL | RAL 9005 |
| Outer sheath diameter (mm) | 9.3 |
| NVP (%) | 76 |
| Fire behaviour | N/A |
| Insulation diameter (mm) | 1.37 |
| Insulation Material | Foam-PE |
| Marking | GIGAMEDIA C6AFF4PFRWBPET3 EN50173 CAT6A F/FTP LSZH-FR / PE WATER BLOCKED OUTDOOR CABLE NVP 76% 4 PAIRS 23AWG BATCH CODE xxxx M ( |
| Packaging | 305 M |
ETIM 9 features
| Shield type | F/FTP |
|---|---|
| Duplex | No |
| Conductor material | Copper |
| Conductor surface | Bare |
| Conductor OD | 1.37 mm |
| AWG size | 23 |
| Conductor construction | Class 1 = solid |
| Number of conductors | 4 |
| Insulation | Other |
| Specification core insulation | Other |
| Core identification according to HD 308 S2 | No |
| Conductor identification | Colour |
| Shield | Foil |
| Stranding | Other |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | Yes |
| Approved type of underground installation | Underground installation tube |
| Protective sheath | Other |
| Specification material outer sheath | Polyethylene (PE) |
| Jacket colour | Black |
| Number of sheath layers | 2 |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | No |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | No |
| Halogen free according to EN IEC 60754-1 | No |
| Halogen free according to EN IEC 60754-2 | No |
| Halogen free according to EN IEC 60754-3 | No |
| Reaction-to-fire according to EN 13501-6 | Class : Fca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : None |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : None |
| Reaction-to-fire according to EN 13501-6 | Acidity : None |
| Oil resistant | No |
| NVP | 78 % |
| UV resistant | Yes |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | C |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Suitable for use as security alarm cable | No |
| Drain wire | Yes |
| With rip cord | Yes |
| Rodent protected | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
