Product features
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | F/FTP |
| Category | 6A |
| Standards | ANSI/TIA-568-C.2, CAT6A ; EN 50173:2007 ; ISO/IEC 11801 2nd edition:2002 |
| Frequency range | From 0 to 550 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
Article features
| Jacket type | LSZH |
|---|---|
| Outer jacket colour | White |
| Jacket RAL | RAL 9001 |
| Outer sheath diameter (mm) | 6.4 |
| NVP (%) | 78 |
| Fire behaviour | EN 13501-6: Dca-s2, d2, a1; EN 50575; EN 50399; EN 60332-1 |
| Insulation diameter (mm) | 1.35 |
| Insulation Material | Foam PE |
| Marking | GIGAMEDIA EN50173 CAT6A F/FTP LSZH C6AFF4PSHF-TP028A Dca NVP 78% 4 PAIRS 23AWG |
| Packaging | 100 m box |
ETIM 9 features
| Shield type | F/FTP |
|---|---|
| Conductor material | Copper |
| Conductor surface | Bare |
| AWG size | 23 |
| Conductor construction | Class 1 = solid |
| Pairing | Pairs |
| Insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Conductor identification | Colour |
| Shield | Foil |
| Stranding | Other |
| Approved type of underground installation | Underground installation tube |
| Jacket colour | White |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Reaction-to-fire according to EN 13501-6 | Class : Dca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s2 |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d2 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Segregation class according to EN 50174-2 | C |
CABLE CAT6A 4P AWG23 F/FTP LSZH-FR B2ca, GREEN T500
GGM C6AFF4PFRBT5
CABLE CAT6A 4P AWG23 F/FTP LSZH-FR Cca, YELLOW T500
GGM C6AFF4PFRT5
Cable category 6A FFTP 4P AWG23 SLIM HF-FR Cca white, box 100M
GGM C6AFF4PSFRU1
Cable category 6A FFTP 4P AWG23 SLIM HF-FR Cca white, box 200M
GGM C6AFF4PSFRU200
Cable category 6A FFTP 4P AWG23 SLIM HF-FR Cca white, box 305M
GGM C6AFF4PSFRU3
Cable category 6A FFTP 4P AWG23 SLIM HF-FR Cca white, 500m
GGM C6AFF4PSFRT5
CABLE CAT6A 4P AWG23 F/FTP LSZH Dca, WHITE T500M
GGM C6AFF4PZHT5
CABLE CAT6A 2X4P AWG23 F/FTP LSZH Dca, WHITE T500M
GGM C6AFF2X4ZHT5
CABLE 4P CAT6A AWG23 F/FTP LSZH Dca, BLUE T500M
GGM C6AFF4PDBET5
CABLE CAT6 A2X4P AWG23 F/FTP LSZH Dca, BLUE T500M
GGM C6AFF2X4DBET5
CAT6A cable 4 pairs AWG23 F/FTP SLIM LSOH Dca, White (Reel in box 200m)
GGM C6AFF4PSHFU200
CAT6A 4 pairs AWG23 F/FTP SLIM LSOH Dca cable, White (305m box Reelex)
GGM C6AFF4PSHFU3
CAT6A 4 pairs AWG23 F/FTP SLIM LSOH Dca cable, White (500m drum)
GGM C6AFF4PSHFT5
CAT6A F/FTP AWG23 4P LSZH-FR Cca/PE with water block tape, 305m drum
GGM C6AFF4PFRWBPET3
CABLE CAT6A 4P AWG23 U/FTP LSZH-FR Cca, YELLOW T500
GGM C6AUF4PFRT5
CAT6A 4P U/UTP CCA 23 AWG WHITE 500M DRUM
GGM C6AU4PFRT5
Cable Category 6A 4 pairs AWG23 U/FTP LSOH Dca s2, d2, a1 White (305M drum)
GGM C6AUF4PZHT3
CABLE CAT6A 4P U/FTP LSZH, Dca, WHITE T500M
GGM C6AUF4PZHT5
CABLE CAT6A 2X4P U/FTP LSZH, Dca, WHITE T500M
GGM C6AUF2X4ZHT5
CABLE CAT6A 4P AWG23 U/FTP LSZH Dca, WHITE D305M
GGM C6AF4PZHT3
CABLE CAT6A 4P U/FTP LSZH, Dca, WHITE T500M
GGM C6AF4PZHT5
CABLE CAT6A 4P U/FTP LSZH, Dca, WHITE T1000M
GGM C6AF4PZHTM
CABLE CAT6A 2X4P U/FTP LSZH, Dca, WHITE T500M
GGM C6AF2X4ZHT5
CAT6A 4 pairs AWG23 U/FTP LSOH Dca cable, White (305m Reelex II)
GGM C6AUF4PHFU3
CAT6A 4 pairs AWG23 U/FTP LSOH Dca cable, White (500m drum)
GGM C6AUF4PHFT5
CAT6A cable UFTP 2X4 pairs AWG23 HF Dca WHITE, 500M drum
GGM C6AUF2X4HFT5
CAT6A 4P UFTP AWG23 PE BLACK EXTERNAL GRADE
GGM C6AUF4PPET3
CAT6A 4P U/UTP CCA 23 AWG WHITE 305M RIB
GGM C6AU4PFRTU3
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM C6AFF4PSHFU1

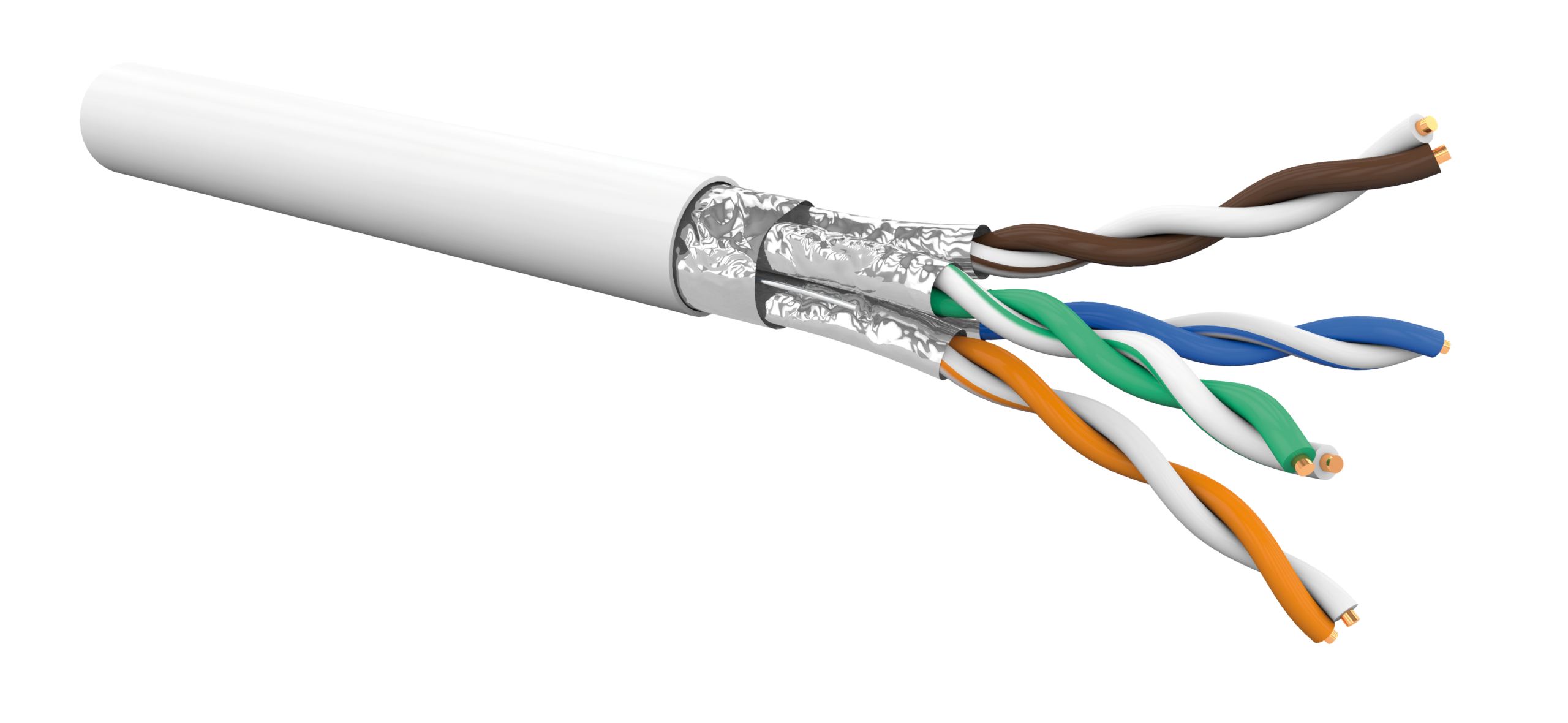

CAT6A 4 pairs AWG23 F/FTP SLIM LSOH Dca cable, White (box 100m)
