GGM C6AFF4PSFRT5

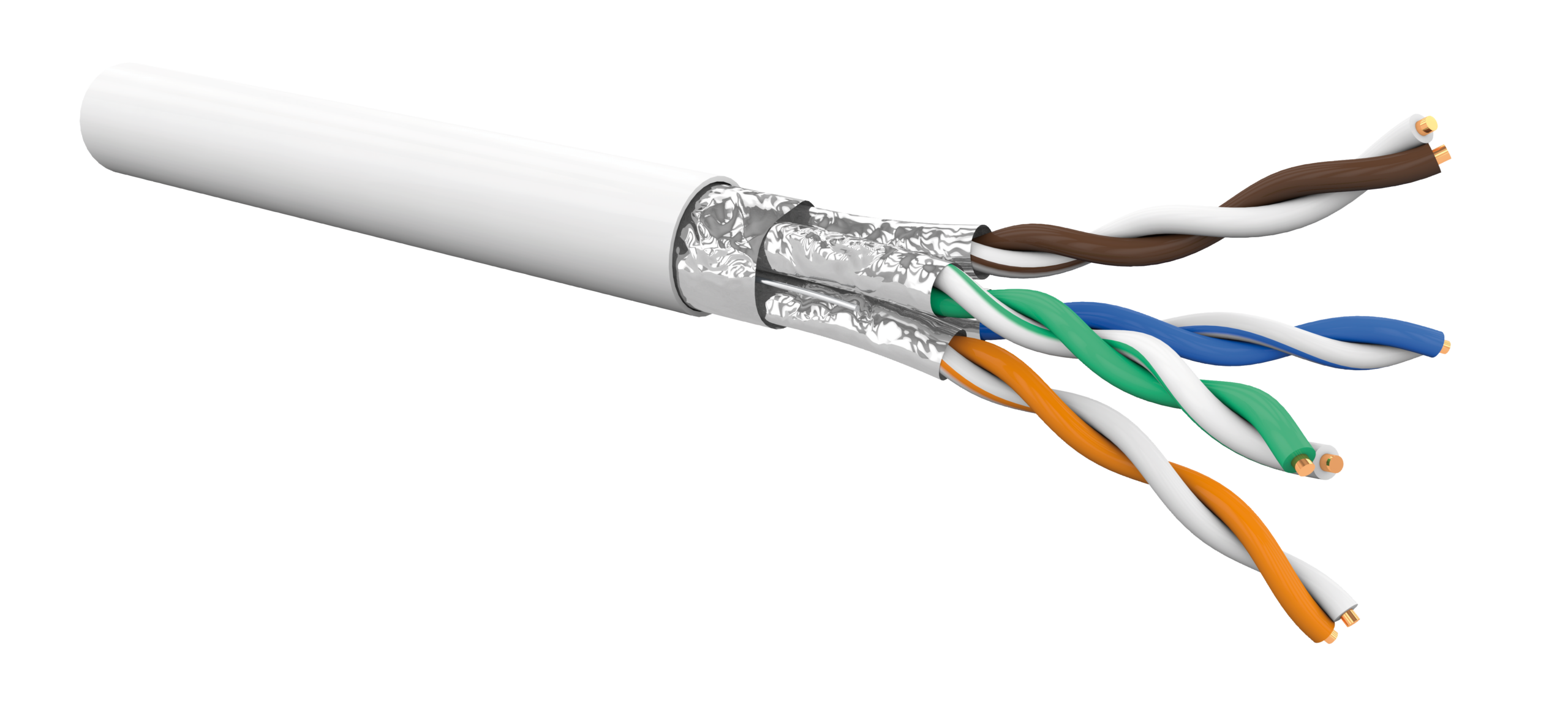

Cable category 6A FFTP 4P AWG23 SLIM HF-FR Cca white, 500m
ENSURE Fire Safety inside Buildings ! This series of cables meets and exceeds the requirement of Augmented category 6 (CAT6A) and ISO 11801 or EN 50173 Class EA when associated with Gigamedia High Performance RJ45 jacks. The individual shield applied on each pair helps to optimize NEXT Performance and ensure the user that field test results will show a 100% Pass rate of installed links. It is the ideal solution when deploying 10Gbits capable Network cabling Infrastructure. (i.e 10GBASE-T). It is also backward compatible with relevant application standards such as 1000BASE-T and other applications. Thanks to a 3P dedicated certificate,…
Read more
ENSURE Fire Safety inside Buildings !
This series of cables meets and exceeds the requirement of Augmented category 6 (CAT6A) and ISO 11801 or EN 50173 Class EA when associated with Gigamedia High Performance RJ45 jacks.
The individual shield applied on each pair helps to optimize NEXT Performance and ensure the user that field test results will show a 100% Pass rate of installed links.
It is the ideal solution when deploying 10Gbits capable Network cabling Infrastructure. (i.e 10GBASE-T). It is also backward compatible with relevant application standards such as 1000BASE-T and other applications.
Thanks to a 3P dedicated certificate, the user is guaranteed to use a CAT6A component cable that also has a high level of Fire performance : LSZH & Flame retardant in accordance with IEC 60332-3 & EN 50267 to meet latest European regulation (CPR).
This series of cables meets and exceeds the requirement of Augmented category 6 (CAT6A) and ISO 11801 or EN 50173 Class EA when associated with Gigamedia High Performance RJ45 jacks.
The individual shield applied on each pair helps to optimize NEXT Performance and ensure the user that field test results will show a 100% Pass rate of installed links.
It is the ideal solution when deploying 10Gbits capable Network cabling Infrastructure. (i.e 10GBASE-T). It is also backward compatible with relevant application standards such as 1000BASE-T and other applications.
Thanks to a 3P dedicated certificate, the user is guaranteed to use a CAT6A component cable that also has a high level of Fire performance : LSZH & Flame retardant in accordance with IEC 60332-3 & EN 50267 to meet latest European regulation (CPR).
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | F/FTP |
| Category | 6A |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Frequency range | From 0 to 500 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
| Jacket type | LSZH-FR |
| Outer jacket colour | White |
| Jacket RAL | RAL 9001 |
| Outer sheath diameter (mm) | 6.4 |
| NVP (%) | 78 |
| Fire behaviour | EN 13501-6: Cca-s1a, d1, a1; EN 50575; EN 50399; EN 60332-3 |
| Insulation diameter (mm) | 1.35 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA EN50173 CAT6A F/FTP LSZH-FR C6AFF4PSFR-TP029A Cca NVP 78% 4 PAIRS 23AWG[ Lot n°] [meter mark xxxx M] |
| Packaging | 500 m drum |
ETIM features
| Cable type | F/FTP |
|---|---|
| Duplex | No |
| Conductor material | Copper |
| Conductor surface | Bare |
| Diameter conductor | 0.556 mm |
| Nominal cross section conductor | 0.243 mm² |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Number of cores | 8 |
| Number of stranding elements | 4 |
| Stranding element | Pairs |
| Material core insulation | Other |
| Specification core insulation | Other |
| Core identification according to HD 308 S2 | No |
| Core identification | Colour |
| Screen over stranding element | Foil |
| Stranding | Other |
| Screen over stranding | Foil |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Other |
| Protective sheath | Other |
| Material outer sheath | Other |
| Specification material outer sheath | Other |
| Colour outer sheath | White |
| Armouring/reinforcement | None |
| Material armouring | Other |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | Yes |
| Flame retardant according to IEC 60332-3-25 (Cat D) | Yes |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : Cca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s1a |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d1 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant according to EN IEC 60811-404 | No |
| Outer diameter approximate | 6.4 mm |
| Permitted cable outer temperature during assembling/handling | 00 - 50 |
| Permitted cable outer temperature after assembling without vibration | -20 - 60 |
| NVP value | 78 % |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | C |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Suitable for use as security alarm cable | No |
| Drain wire | Yes |
| With rip cord | No |
| Characteristic impedance | 100 Ohm |
| With rodent protection | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
