GGM KITIP48CDM5MP

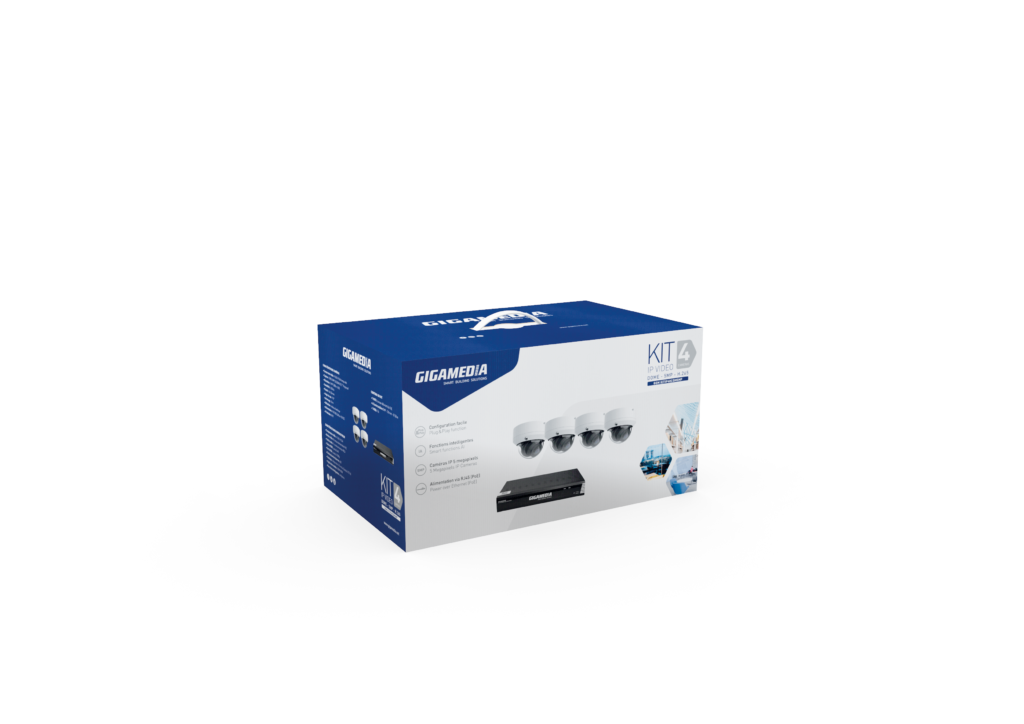

Videosurveillance Kit 4 mini dome 5MP cameras + 1 NVR 8 channels PoE + 2 TB HDD

This kit will bring you to CCTV easily.
This kit is composed by one NVR 8 channels PoE with 2 Tb Hard drive. It is possible to record video streams up to 8MP (4K). It is delivered with 4 dome cameras with 5 MP resolution, lens 2.8 mm and Infrared can go up to 20 m . You will be able to see colored pictures even in low light condition thanks to the 0,004 lux sensitivity of the camera. Microphone is integrated for remote doubt removal.
You can add 4 additional cameras that are part of the GIGAMEDIA range (IPC)
Analytics functions will bring you more added value to your videosurveillance system by decreasing the false alarm rate. It is possible to classify people and vehicle to limit untimely outdoor detections.
ANALYTICS FUNCTIONS ARE THE FOLLOWING *:

Human & Vehicle detection
Face detection
Perimeter intrusion
Line crossing
Object detection
Cross counting
Heat Map
Crowd density
Queue length detection
Rare Sound Detection

The friendly interface will help you to manage the system. The first basic configuration can be done in less than 10 minutes
GGM VIEW app will connect to the NVR remotely with your smartphone to see live view, playback and alarms. You can also receive push notifications in case of alarm.
This premium kit will give you full satisfaction for the security of your office.
* All Analytics functions can’t be activated at the same time in one camera

Product features

Installation	Interior Exterior

Article features

Number of Digital input	8
Number of Digital output	1
Continous recording	128 Mbps
Power Consumption	6 W
Form factor	Dome
Format	Desktop
Infrared lighting distance (m)	20
Intelligent analysis functions supported	No
LAN	8 x 10/100 Mbps
Max recording resolution	8 MP (4K)
Number of channels	8
Number of frames/sec.	30
HDD slots	1 (2 Tb included)
Operating temperature range	-35° to + 60°C
Ethernet RJ45 LAN Port	8 x 10/ 100 Mbps
Ethernet RJ45 WAN Port	1 x 1000 Mbps
IP Protection	IP66
Image Size	5MP
Sensitivity	0.004 Lux @F1.6 ( AGC ON), B/W 0 lux IR On
Power supply	48 VDC
Type of sensor	1/2.7 Progressive CMOS SC5035
Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Horizontal viewing angle (°)	110 °
WAN	1
Wdr (wide dynamic range)	120 dB

ETIM 9 features

Number of cameras	4
With IR lamp	Yes
Number of pixels (Megapixel)	5
Integrated power-supply for cameras	Yes
Wired camera connection	Yes
Wireless camera connection	No
Max. number of video inputs	8
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
