GGM IPCMD5F28

IP PoE Flat Dome camera 5MP IR 20 m, Fixed lens 2.8 mm, built-in mic. – NDAA

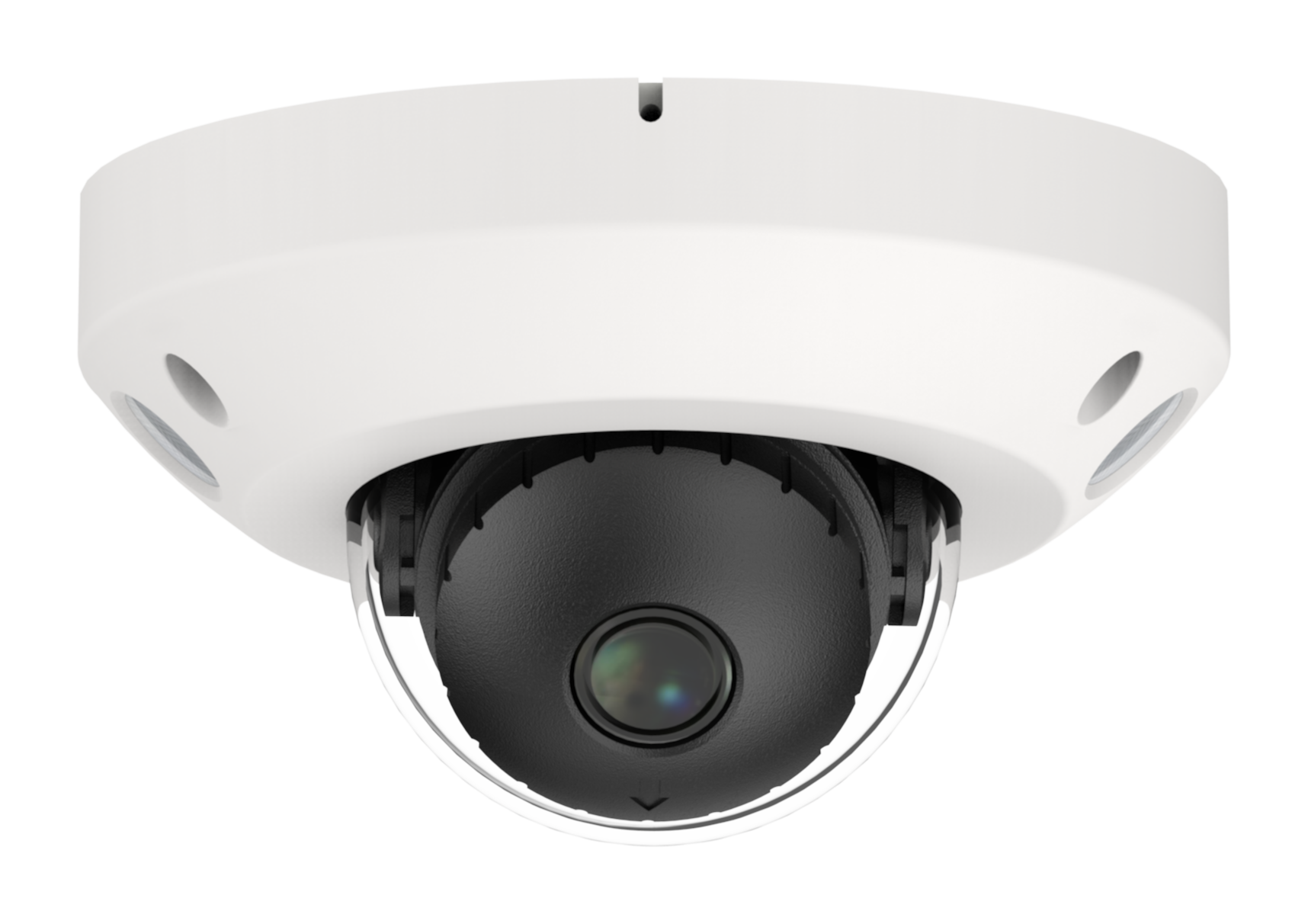

The IPCMD5F28 is a flat dome camera with resolution of 5MP and IR light up to 20 m. It has an embedded micro SD card slot with maximum capacity of 256 MB. This camera is PoE powered and has an integrated microphone. The wide angle of view (110°) can cover large area AI analytics are the following: Face détection Human and vehicule detection Perimeter intrusion detection Line crossing detection Stationnary object detection Cross counting Heatmap Crowd density detection Queue lenght detection Licence plate detection Rare sound detection This model is IP66 rated for an indoor/outdoor use. The compact design will…

Face détection
Human and vehicule detection
Perimeter intrusion detection
Line crossing detection
Stationnary object detection
Cross counting
Heatmap
Crowd density detection
Queue lenght detection
Licence plate detection
Rare sound detection

This model is IP66 rated for an indoor/outdoor use.
The compact design will allow for discrete installation.

Camera type	Flat dome

Information system

CPU	SSC30KQ
Flash memory	128MB NAND
RAM	256 MB

Technical features

Sensor	SC500AI , 1/2.7"CMOS Progressive
Sensor max. resolution	2880 x 1620
Lens type	Fixed lens
Focal lenght (mm)	2.8 mm
Aperture	F1.6
Auto iris	Fixed Iris
Horizontal viewing angle (°)	110°
Vertical viewing angle (°)	58°
Diagonal viewing angle (°)	133°
Micro SD card slot	Yes
Digital input	No
Digital output	No
Audio in	No
Audio out	No
Built in microphone	Yes
Built-in speaker	No
Reset Button	Yes
POE	802.3 af
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	120 dB
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Minimum illumination	Color 0.004lux @ F1.6(AGC ON), B/W: 0 lux @ IR ON
IR Range	20 m
Embedded storage	Micro SD card slot max 256 GB

Video

Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	2880 x 1620 @30 fps
Stream	3 simultaneous streams
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	Yes
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Contrast, White balance, Brightness, Sharpness, Saturation, Hue
WDR management	Yes
Privacy mask	4 zones
Defog	No
ROI	Yes

Network

Simultaneous connection on web	9
Supported protocols	SMTP, RTP/RTSP, PPPoE, UPnP, DNS, FTP, DHCP, DDNS, NTP, HTTP, SNMP, UDP, TCP/IP, HTTPS, IPv4/IPv6
Interface	RJ-45 10/100 Mbps
Onvif version/Profile	ONVIF (Profile S/G/T)

PTZ

3D Positioning	No
Smart tracking	No

Analytics

Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	No
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes

Alarm and event

Motion Detection	Yes
Manual triggering	No
Periodical Trigger	Yes
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	Yes
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes

General information

Connector	RJ-45, 12VDC
Power supply	PoE (802.3af) or 12 VDC
Diameter (mm)	115.3
Height (mm)	64
Weight (kg)	0.276
Material	Metal
IP Protection	IP66
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	De -35 à 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24

OS and required configuration

OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

ETIM features

Model	Standard (Fixed)
Construction type	Dome shape
Thermal camera	No
Number of pixels (Megapixel)	5
With lens	Yes
Modular (lens and camera separated)	No
Focal size	2,8 - 2,8
Shutter control	DC
Motor zoom	No
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Flush-mounted installation/built-in installation	No
Suitable for outdoor use	Yes
Communication medium wired	Yes
Type of transmission medium	Twisted Pair
Type of interface	None
Protocol	TCP/IP
Power over Ethernet (PoE)	802.3 af (PoE)
Picture system	PAL
Property picture system	Colour
With infrared lighting	Yes
Max. infrared reach	20 m
With video motion detector	Yes
Memory capacity	256 Go
HDMI-connection	No
Mini HDMI-connection	No
VGA-connection (D-Sub 15-pole)	No
DVI-connection	No
BNC-connection	No
DisplayPort-connection	No
Mini DisplayPort	No
S-Video-connection	No
USB-C-connection	No
Vandal proof	No
Impact strength	None
Degree of protection (IP)	IP66
Horizontal field of view	110 - 110
Vertical field of view	58 - 58
Power consumption	8 W
Supply voltage	12 - 12
Voltage type	DC
Colour	White
Diameter	115.3 mm
Height	64.3 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
