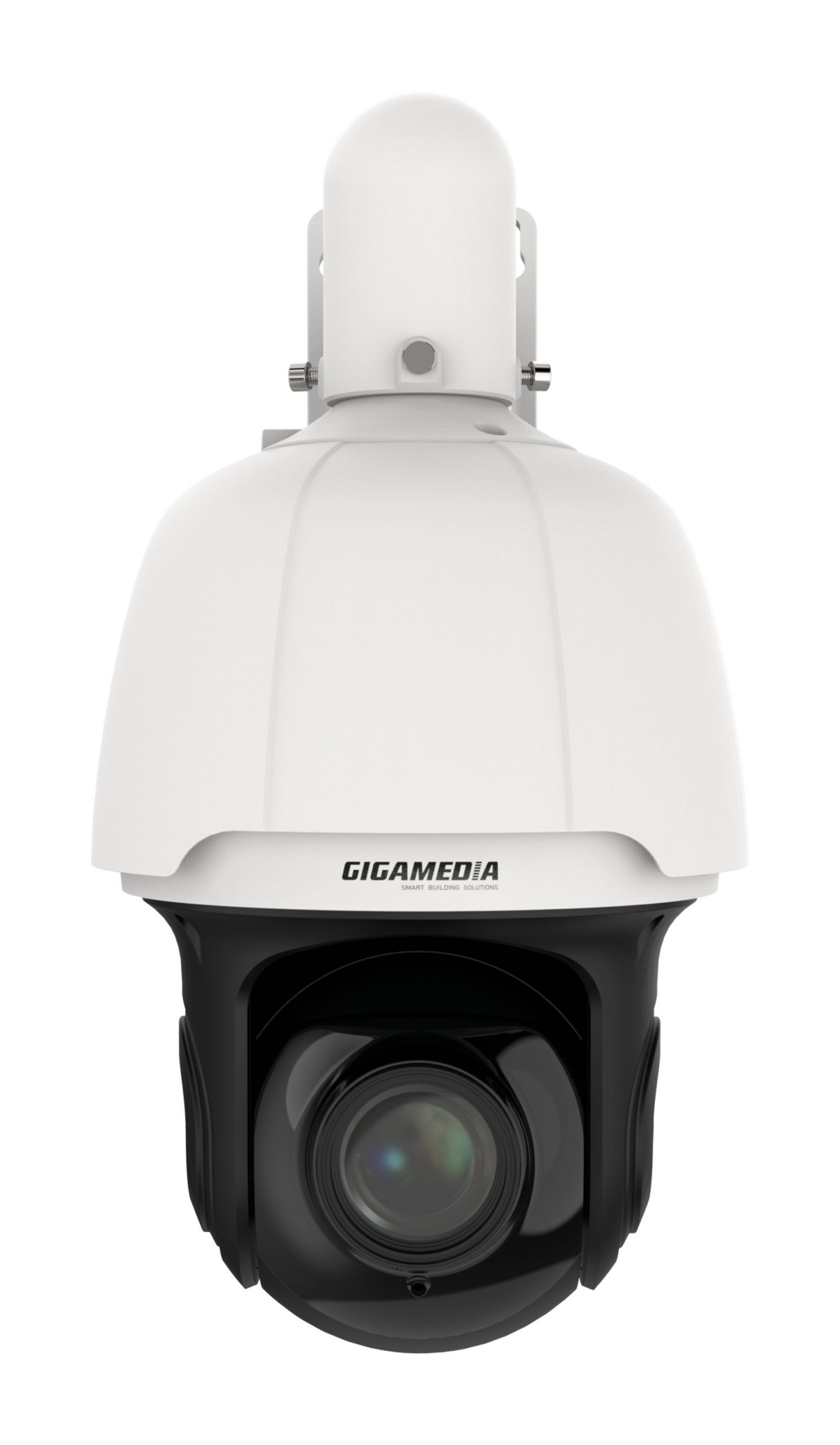

GGM IPCSD5X33IR150

IP PoE Speed Dome camera 5MP IR 150 m, Optical zoom 33X, tracking – NDAA

The speed dome IPCSD5X33IR150 is 5MP camera with 33x optical zoom. Infrared can light up to 150 m. Many analytics functions ( AI) are supported by the camera: Face detection Human & vehicle detection Perimeter intrusion Crossing line detection Object detection Cross counting Heatmap Crowd density detection Queue lenght detection License plate detection Rare sound detection Auto tracking function is embedded. you can conifgure up to 255 presets and 4 patrols. It is IP66 rated for an outdoor installation. Audio and alarm I/O are integrated to connect third part devices. It also integrated micro SD card slot up to 256…

The speed dome IPCSD5X33IR150 is 5MP camera with 33x optical zoom. Infrared can light up to 150 m.
Many analytics functions ( AI) are supported by the camera:

Face detection
Human & vehicle detection
Perimeter intrusion
Crossing line detection
Object detection
Cross counting
Heatmap
Crowd density detection
Queue lenght detection
License plate detection
Rare sound detection

Auto tracking function is embedded. you can conifgure up to 255 presets and 4 patrols.
It is IP66 rated for an outdoor installation.
Audio and alarm I/O are integrated to connect third part devices.
It also integrated micro SD card slot up to 256 GB
This device is PoE + powered.
This solution is the best choice for large spaces,such as school, garden, buildings, shopping malls , industry.

Camera type	Speed dome

Information system

CPU	NT98528
Flash memory	128MB NAND
RAM	256MB*2

Technical features

Sensor	OS05A20, 1/2.7"CMOS Progressive
Sensor max. resolution	2592 x 1944
Lens type	Motorized lens
Focal lenght (mm)	4.3-142 mm
Aperture	F1.6
Auto iris	Motorized
Horizontal viewing angle (°)	2.3-55°
Vertical viewing angle (°)	1.7-41.6°
Diagonal viewing angle (°)	2.8-67.9°
Micro SD card slot	Yes
Digital input	Yes
Number of Digital input	1
Digital output	Yes
Number of Digital output	1
Audio in	Yes
Number of audio in	1
Audio out	Yes
Number of audio out	1
Built in microphone	No
Built-in speaker	No
Reset Button	Yes
POE	802.3at
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	120 dB
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Minimum illumination	Color 0.003lux @ F1.6(AGC ON), B/W: 0 lux @ IR ON
IR Range	150 m
Embedded storage	Micro SD card slot max 256 GB

Video

Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	25 fps@2592x1944
Stream	3 simultaneous streams
SNR	43
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	No
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Contrast, Saturation, White balance, Sharpness, Brightness, Hue
WDR management	Yes
Privacy mask	4 zones
Defog	No
ROI	No

Network

Simultaneous connection on web	5
Supported protocols	UPnP, DHCP, SNMP, HTTPS, UDP, DDNS, TCP/IP, FTP, NTP, IPv4/IPv6, PPPoE, DNS, SMTP, HTTP, RTP/RTSP
Interface	RJ-45 10/100 Mbps
Onvif version/Profile	ONVIF (Profile S/G/T)

PTZ

PAN (°)	360
Tilt	-10° to 90° (auto flip)
VPAN (°/s)	200°/s
VTILT (°/s)	100°/s
Number of preset	255
Number of patrols	1
3D Positioning	Yes
Smart tracking	Yes

Analytics

Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	No
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes

Alarm and event

Motion Detection	Yes
Manual triggering	Yes
Periodical Trigger	Yes
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	No
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes

General information

Connector	RJ-45, 12VDC, Alarm I/O Audio I/O
Power supply	PoE (802.3at) or 12 VDC
Power Consumption	25.6 W
Diameter (mm)	206.4
Height (mm)	351
Weight (kg)	3.7
Material	Metal
IP Protection	IP66
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	De -35 à 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24

OS and required configuration

OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

ETIM features

Model	Pan-Tilt-Zoom
Construction type	Other
Thermal camera	No
Number of pixels (Megapixel)	5
With lens	Yes
Modular (lens and camera separated)	No
Focal size	5 - 125
Shutter control	DC
Motor zoom	Yes
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Flush-mounted installation/built-in installation	No
Suitable for outdoor use	Yes
Communication medium wired	Yes
Type of transmission medium	Twisted Pair
Type of interface	None
Protocol	TCP/IP
Power over Ethernet (PoE)	802.3 at (PoE+)
Picture system	PAL
Property picture system	Colour
With infrared lighting	Yes
Max. infrared reach	150 m
With video motion detector	Yes
Number of digital inputs	1
Number of digital outputs	1
Number of audio inputs	1
Number of audio outputs	1
HDMI-connection	No
Mini HDMI-connection	No
VGA-connection (D-Sub 15-pole)	No
DVI-connection	No
BNC-connection	No
DisplayPort-connection	No
Mini DisplayPort	No
S-Video-connection	No
USB-C-connection	No
Vandal proof	No
Impact strength	None
Degree of protection (IP)	IP66
Horizontal field of view	2,9 - 56,9
Vertical field of view	1,6 - 32,2
Power consumption	25 W
Supply voltage	12 - 12
Voltage type	DC
Height	352 mm
Width	206.4 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
