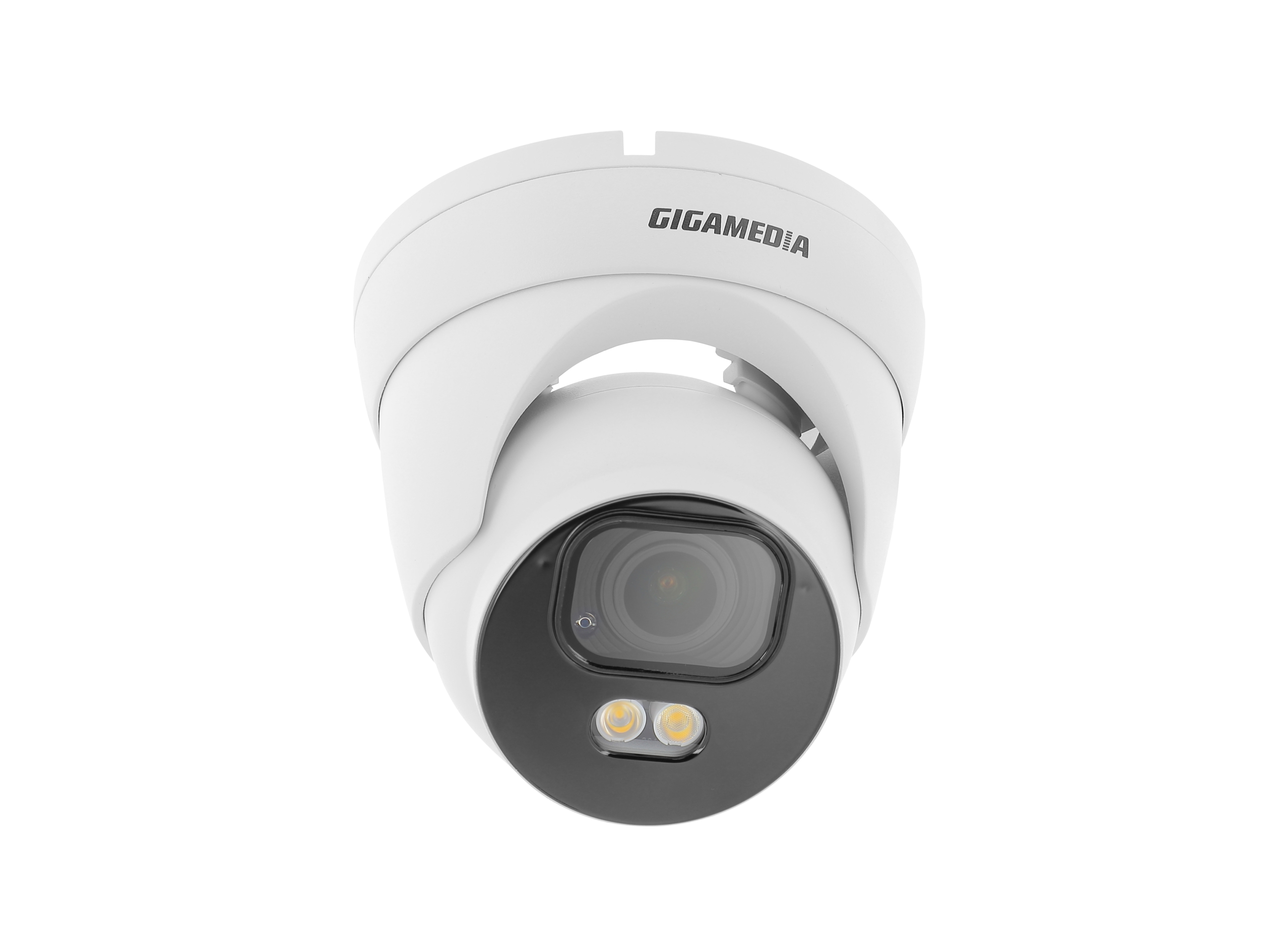

GGM IPCD4MV12L

IP Camera turret dome full color 4MP white led + IR 25 m Lens 2.8-12mm PoE

IPCD4MV12L camera can be used in many cases. It integrates 2.8~12 mm motorized lens that is suitable for many situations. White/IR led can light up to 30m depending on installation environment. It can also be installed outside thanks to IP67 rating. Embedded electronics are very qualitative and offers perfect picture quality in day or night. This cameras allows you to see in a ultra low light condition ( 0.0005 Lux) thanks to the 1.8" sensor and F1.2 lens aperture. Many analytics functions ( AI) are supported by the camera: Face detection Human & vehicle detection Perimeter intrusion Crossing line detection…

IPCD4MV12L camera can be used in many cases. It integrates 2.8~12 mm motorized lens that is suitable for many situations. White/IR led can light up to 30m depending on installation environment. It can also be installed outside thanks to IP67 rating.
Embedded electronics are very qualitative and offers perfect picture quality in day or night. This cameras allows you to see in a ultra low light condition ( 0.0005 Lux) thanks to the 1.8" sensor and F1.2 lens aperture.

Many analytics functions ( AI) are supported by the camera:

Face detection
Human & vehicle detection
Perimeter intrusion
Crossing line detection
Object detection
Cross counting
Heatmap
Crowd density detection
Queue lenght detection
License plate detection
Rare sound detection

This device also embbed Alarm I / O, Audio I / O and micro sd card slot for 256 GB maximum capacity.
This camera is very usefull to secure sensitive sites, shops, buildings, schools or industrial sites...

Camera type	Dome eyeball

Information system

CPU	NT98529
Flash memory	128MB NAND
RAM	256MB*2

Technical features

Sensor	SC4210, 1/1.8" CMOS Progressive
Sensor max. resolution	2560 x1440
Lens type	Motorized lens
Focal lenght (mm)	2.8-12 mm
Aperture	F1.2
Auto iris	Motorized
Horizontal viewing angle (°)	115-48°
Vertical viewing angle (°)	59° - 27°
Diagonal viewing angle (°)	141° - 55°
Micro SD card slot	Yes
Digital input	No
Number of Digital input	1
Digital output	Yes
Number of Digital output	1
Audio in	Yes
Number of audio in	1
Audio out	No
Number of audio out	1
Built in microphone	No
Built-in speaker	No
Reset Button	Yes
POE	802.3 af
Shutter speed	1/5 - 1/20000s
Wdr (wide dynamic range)	120 dB
Day/Night	Yes
Day / night switch	Automatic, manual, schedule
Minimum illumination	Color 0.0005lux @ F1.0(AGC ON), B/W: 0 lux @ IR ON
IR Range	30 m
Embedded storage	Micro SD card slot max 256 GB

Video

Video compression	H.265+, H.265, H.264+, H.264 and MJPEG
Resolution and framerate	60 fps@2560x1440
Stream	3 simultaneous streams
Day/ Night mode	Yes
IR management	Yes
Picture flip/ mirror	Yes
Corridor mode	No
BLC	Yes
HLC	Yes
3D noise reduction	Yes
Image setting	Brightness, Hue, White balance, Contrast, Saturation, Sharpness
WDR management	Yes
Privacy mask	4 zones
Defog	No
ROI	No

Network

Simultaneous connection on web	7
Supported protocols	FTP, RTP/RTSP, SMTP, TCP/IP, HTTP, HTTPS, SNMP, DHCP, PPPoE, DDNS, UPnP, NTP, UDP, DNS, IPv4/IPv6
Interface	RJ-45 10/100 Mbps
Onvif version/Profile	ONVIF (Profile S/G/T)

PTZ

3D Positioning	No
Smart tracking	No

Analytics

Face detection	Yes
Human and vehicle detection	Yes
Perimeter Detection Intrusion	Yes
Crossing Line Detection	No
Stationnary Object Detection	Yes
Cross Counting	Yes
Heat Map	Yes
Crowd Density Detection	Yes
Queue length detection	Yes
Licence plate Detection	Yes
Rare Sound Detection	Yes

Alarm and event

Motion Detection	Yes
Manual triggering	Yes
Periodical Trigger	No
System boot	Yes
Recording notification	Yes
Camera tamper detection	Yes
Alarm action	Yes
Flash Alarm	Yes
Event notification using HTTP, SMTP, FTP, NAS server	Yes
File upload via HTTP, SMTP, FTP, NAS server and MicroSD card	Yes

General information

Connector	RJ-45, 12VDC, Alarm I/O Audio I/O
Power supply	PoE (802.3af) or 12 VDC
Power Consumption	8.6W
Diameter (mm)	135
Height (mm)	126
Weight (kg)	0.824
IP Protection	IP67
Operating temperature range	From -35 to 60°C
Storage Temperature (°C)	De -35 à 60°C
Operating Humidity (% - non condensing)	95%
Warranty period	24

OS and required configuration

OS	Microsoft Windows, MAC
Web browser	IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above

ETIM features

Model	Standard (Fixed)
Construction type	Turret shape
Thermal camera	No
Number of pixels (Megapixel)	4
With lens	Yes
Modular (lens and camera separated)	No
Focal size	2,8 - 12
Shutter control	DC
Motor zoom	Yes
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for surface mounting	Yes
Flush-mounted installation/built-in installation	No
Suitable for outdoor use	Yes
Communication medium wired	Yes
Type of transmission medium	Twisted Pair
Type of interface	None
Protocol	TCP/IP
Power over Ethernet (PoE)	802.3 af (PoE)
Picture system	PAL
Property picture system	Colour
With infrared lighting	Yes
Max. infrared reach	30 m
With video motion detector	Yes
Memory capacity	256 Go
Number of digital inputs	1
Number of digital outputs	1
Number of audio inputs	1
Number of audio outputs	1
HDMI-connection	No
Mini HDMI-connection	No
VGA-connection (D-Sub 15-pole)	No
DVI-connection	No
BNC-connection	No
DisplayPort-connection	No
Mini DisplayPort	No
S-Video-connection	No
USB-C-connection	No
Vandal proof	No
Impact strength	None
Degree of protection (IP)	IP67
Horizontal field of view	48 - 115
Vertical field of view	27 - 59
Power consumption	12 W
Supply voltage	12 - 12
Voltage type	DC
Colour	White
Diameter	135.6 mm
Height	126 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
