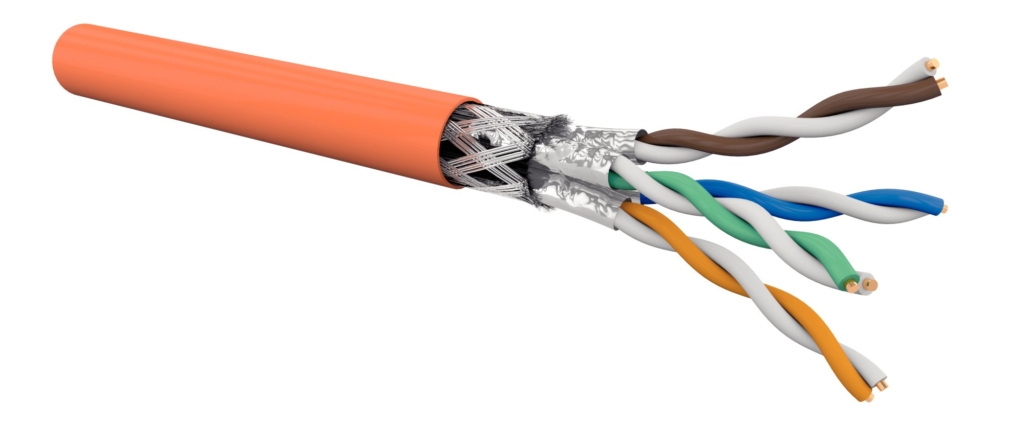

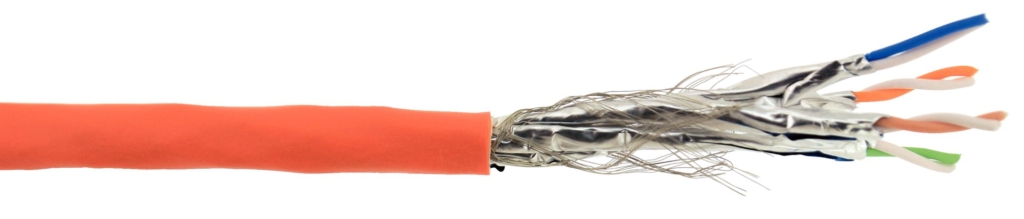

GGM C7SF4PHFT5

4P CAT7 S/FTP 900MHZ AWG23 LSHF ORANGE 500M DRUM

The GIGAMEDIA CAT7 cables are designed to exceed the specifications relative to the corresponding Class F standards and support applications up to 10 Gigabit Ethernet (10GBaseT) These cables are screened in pairs in order to optimise the NEXT (crosstalk) performance and possess a braid for overall screening. Associated with the GIGAMEDIA CAT6A screened connectors, screening by pairs as well as the overall braid also offers the possibility of optimising electromagnetic interference immunity.

Applications	IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	S/FTP
Category	7
Standards	EN50288-4-1, ; EN50173-1, ; ISO/IEC11801, ; IEC 61156-5
Frequency range	From 0 to 900 Mhz
Impedance	100
Gauge (awg)	23
Conductor type	Solid copper
Number of pairs	1X4
Jacket type	LSZH
Outer jacket colour	Orange
Jacket RAL	RAL 2003
Outer sheath diameter (mm)	7.2
NVP (%)	79
Fire behaviour	EN 13501-6: Dca, s2, d2, a2; EN 50575; EN 50399; EN 60332-1
Insulation diameter (mm)	1.35
Insulation Material	Polyethylene
Marking	GIGAMEDIA EN 50173 CAT7 S/FTP LSHF -C7SF4PHF-TP014A ? Dca NVP 79% 4PAIR 23 AWG [lot n°] XXXXXX m
Packaging	500 m drum

ETIM features

Cable type	S/FTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Diameter conductor	0.574 mm
Nominal cross section conductor	0.259 mm²
AWG size	23
Conductor category	Class 1 = solid
Number of cores	8
Number of stranding elements	4
Stranding element	Pairs
Material core insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	Foil
Stranding	Other
Screen over stranding	Braiding
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	No
Approved type of underground installation	Underground installation tube
Colour outer sheath	Orange
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	No
Flame retardant according to IEC 60332-3-25 (Cat D)	Yes
Low smoke according to EN IEC 61034-2	Yes
Reaction-to-fire according to EN 13501-6	Class : Dca
Reaction-to-fire according to EN 13501-6	Smoke production : s2
Reaction-to-fire according to EN 13501-6	Flaming droplets/particles : d2
Reaction-to-fire according to EN 13501-6	Acidity : a2
Oil resistant according to EN IEC 60811-404	No
Outer diameter approximate	7.2 mm
Permitted cable outer temperature during assembling/handling	00 - 50
Permitted cable outer temperature after assembling without vibration	-20 - 60
NVP value	79 %
Certified for shipboard application	No
Segregation class according to EN 50174-2	D
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Suitable for use as security alarm cable	No
Drain wire	Yes
With rip cord	No
Characteristic impedance	100 Ohm
With rodent protection	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
