GGM C7SF2X4PWDT5

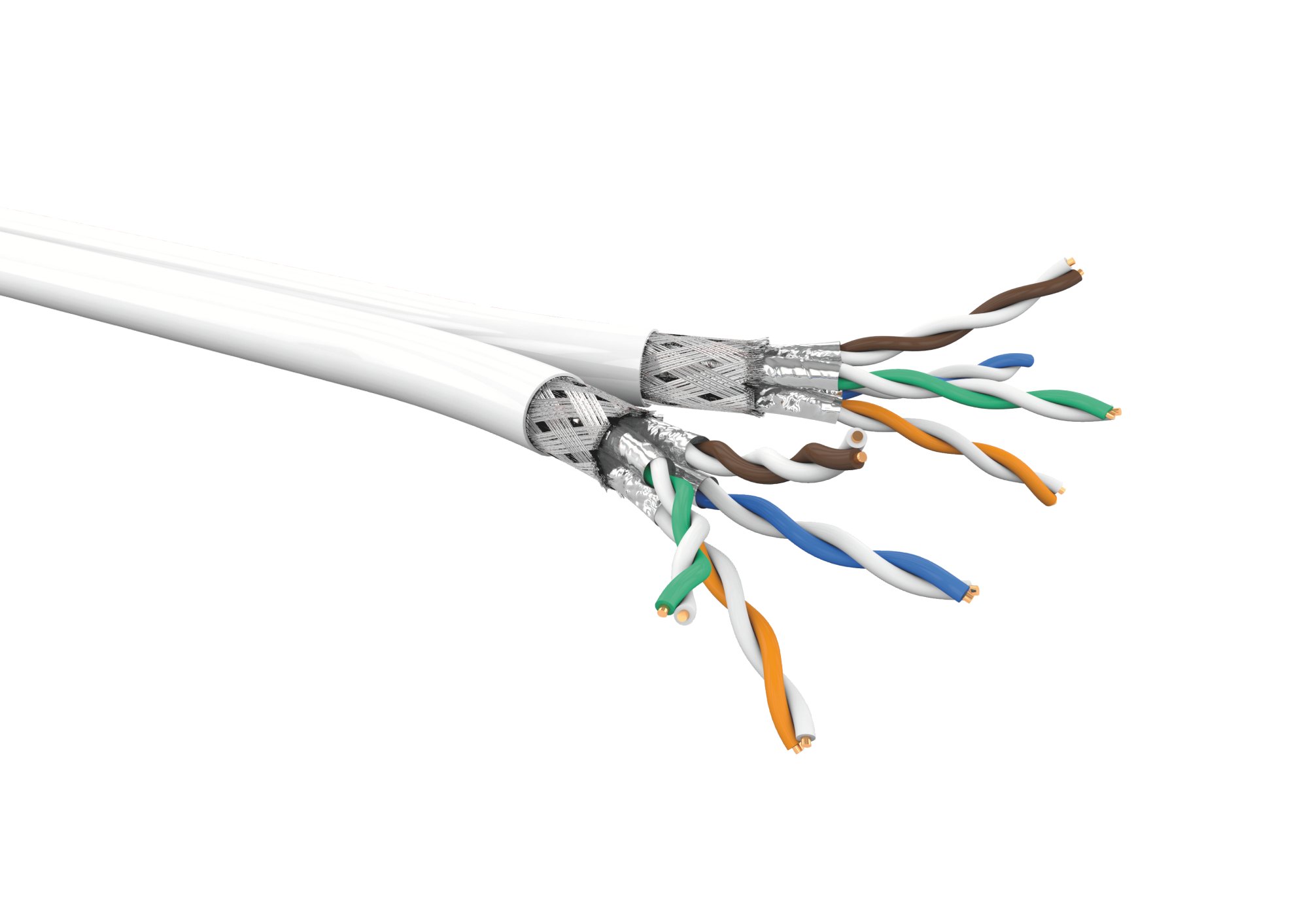

Category 7 AWG23 2X4P ISO/IEC 11801 S/FTP PIMF LSHF IEC 60332-1 Dca White
New Cat7 SFTP 23AWG cable, designed to support speeds up to 10 Gbps. S/FTP shield is applied to reduce electromagnetic interference and ensure reliable performance. Compliant with current standards (3P certification) to guarantee high performance, combined with GIGAMEDIA jacks, will be an obvious choice to meet current and future needs of your network
Read more
New Cat7 SFTP 23AWG cable, designed to support speeds up to 10 Gbps. S/FTP shield is applied to reduce electromagnetic interference and ensure reliable performance. Compliant with current standards (3P certification) to guarantee high performance, combined with GIGAMEDIA jacks, will be an obvious choice to meet current and future needs of your network
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | S/FTP |
| Category | 7 |
| Standards | ANSI/TIA-568.2-D, ; EN 50173 ; ISO/IEC 11801 |
| Frequency range | From 0 to 900 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 2X4 |
| Jacket type | LSZH |
| Outer jacket colour | White |
| Jacket RAL | RAL 9010 |
| Outer sheath diameter (mm) | 15 |
| NVP (%) | 78 |
| Fire behaviour | EN 13501-6 : Dca-s1, d0, a1 EN 50575, EN 50399, EN 60332-1 |
| Insulation diameter (mm) | 1.3 |
| Insulation Material | Foam Polyethylene |
| Marking | GIGAMEDIA EN 50173 CAT7 S/FTP LSZH - C7SF4PWD - TP042 - Dca s1 d0 a1 NVP 78% 4PAIR 23AWG [lot n°] XXXX m |
| Packaging | 500 m drum |
ETIM features
| Cable type | S/FTP |
|---|---|
| Conductor material | Copper |
| Conductor surface | Bare |
| Diameter conductor | 0.56 mm |
| Nominal cross section conductor | 0.246 mm² |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Number of cores | 16 |
| Number of stranding elements | 16 |
| Stranding element | Pairs |
| Material core insulation | Other |
| Specification core insulation | Other |
| Core identification according to HD 308 S2 | No |
| Core identification | Colour |
| Screen over stranding element | Foil |
| Stranding | None |
| Screen over stranding | Braiding |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Other |
| Protective sheath | Other |
| Material outer sheath | Other |
| Specification material outer sheath | Other |
| Colour outer sheath | White |
| Armouring/reinforcement | Other |
| Material armouring | Other |
| Cable geometry | Round |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : Dca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s1 |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d0 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant according to EN IEC 60811-404 | No |
| Outer diameter approximate | 7.2 mm |
| NVP value | 74 % |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | C |
| Suitable as telephone cable | No |
| Suitable as computer data cable | No |
| Suitable as signalling cable | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
