GGM C5EU4PZHBT5

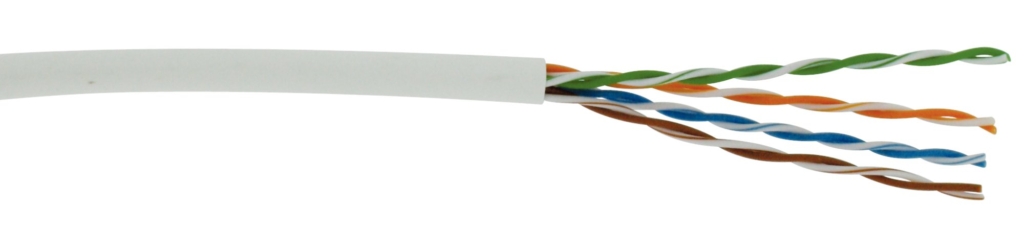

CABLE CAT5E 4P U/UTP LSZH Eca, WHITE T500M

GIGAMEDIA CAT5e cables are cables with better performance than standards such as EIA/TIA, ISO, EN, ... These cables are intended for local IT networks for capillary links. These cables allow the use of protocols supported by Class D and up to Gigabit Ethernet. They are used for digital and analogue signals for the voice, data transmission and video links.

Product features

Applications	IEEE802.3 : 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	U/UTP
Category	5E
Standards	ANSI/TIA-568-C.2 ; EN 50173 ; ISO/IEC 11801
Frequency range	From 0 to 100 Mhz
Impedance	100
Gauge (awg)	24
Number of pairs	1X4

Article features

Jacket type	LSZH
Outer jacket colour	White
Jacket RAL	RAL 9010
Outer sheath diameter (mm)	5
NVP (%)	70
Fire behaviour	Eca
Insulation diameter (mm)	0.9
Insulation Material	Polyethylene
Marking	GIGAMEDIA EN 50173 CAT5E U/UTP LSZH -C5EU4PZH-TP003A ? Eca NVP 69% 4PAIR 24 AWG [lot n°] xxxx m
Packaging	500 m drum

ETIM 9 features

Shield type	U/UTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Conductor OD	0.45 mm
Conductor cross-section	0.163 mm²
AWG size	24
Conductor construction	Class 1 = solid
Number of conductors	8
Number of stranding elements	4
Pairing	Pairs
Insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Conductor identification	Colour
Shield	None
Stranding	Other
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	No
Approved type of underground installation	Underground installation tube
Jacket colour	White
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	No
Flame retardant according to IEC 60332-3-25 (Cat D)	No
Low smoke according to EN IEC 61034-2	Yes
Reaction-to-fire according to EN 13501-6	Class : Eca
Reaction-to-fire according to EN 13501-6	Smoke production : None
Reaction-to-fire according to EN 13501-6	Flaming droplets/particles : None
Reaction-to-fire according to EN 13501-6	Acidity : None
Oil resistant	No
Cable OD	5 mm
Installation temperature	00 - 50
Operating temperature	-20 - 60
NVP	70 %
UV resistant	No
Certified for shipboard application	No
Segregation class according to EN 50174-2	B
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Suitable for use as security alarm cable	No
Drain wire	No
With rip cord	Yes
Rodent protected	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
