GGM C5EU4PPVCT5

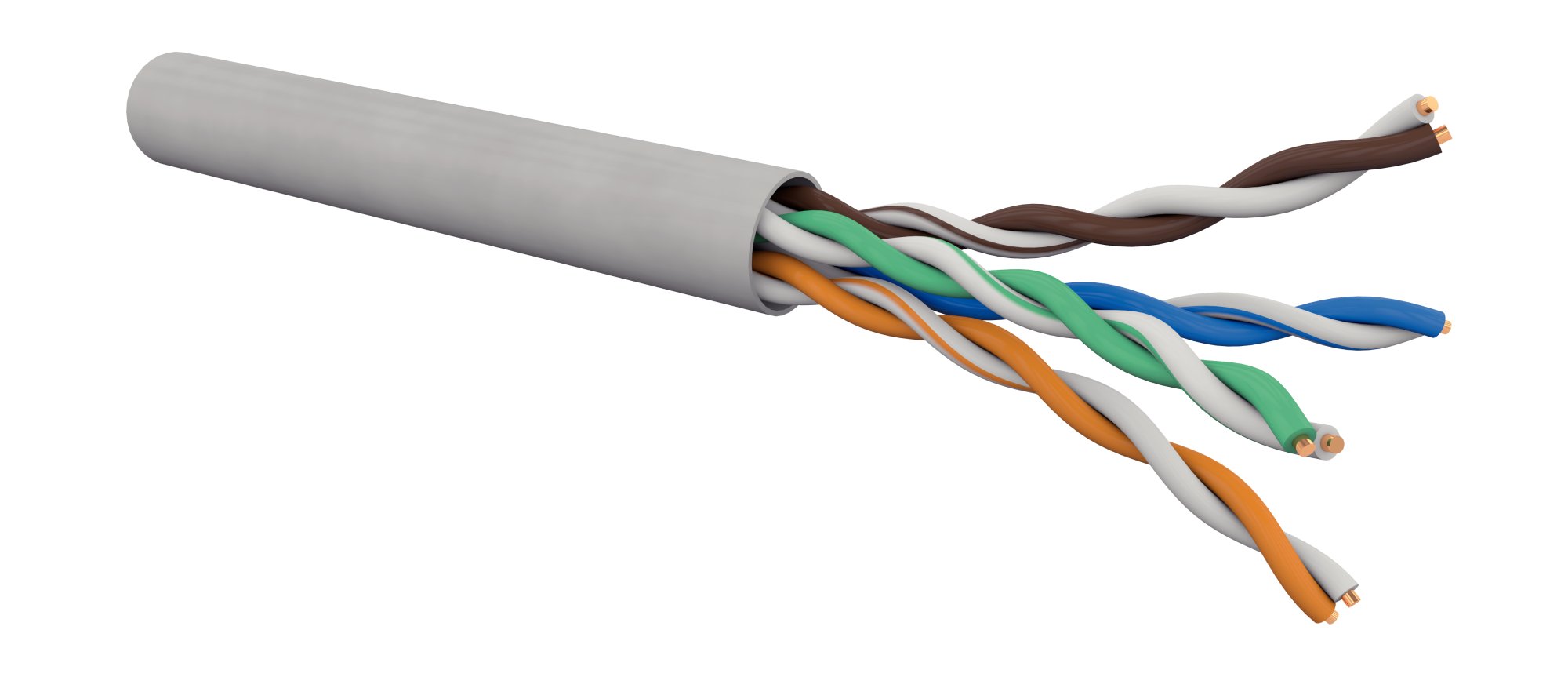

CABLE CAT5E 4P U/UTP PVC Eca, GREY T500M

GIGAMEDIA CAT5e cables are cables with better performance than standards such as EIA/TIA, ISO, EN, ... These cables are intended for local IT networks for capillary links. These cables allow the use of protocols supported by Class D and up to Gigabit Ethernet. They are used for digital and analogue signals for the voice, data transmission and video links.

Applications	IEEE802.3 : 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE)
Shielding	U/UTP
Category	5E
Standards	ANSI/TIA-568-C.2 ; EN 50173 ; ISO/IEC 11801
Frequency range	From 0 to 100 Mhz
Impedance	100
Gauge (awg)	25
Number of pairs	1X4
Jacket type	PVC
Outer jacket colour	Grey
Jacket RAL	RAL 7035
Outer sheath diameter (mm)	4.7
NVP (%)	69.7
Fire behaviour	Eca
Insulation diameter (mm)	0.86
Insulation Material	Polyethylene
Marking	GIGAMEDIA EN 50173 CAT5E U/UTP PVC ? C5EU4PPVC -TP002A ? Eca NVP 67% 4 PAIR [lot n°] XXXX m.
Packaging	500 m drum

ETIM features

Cable type	U/UTP
Duplex	No
Conductor material	Copper
Conductor surface	Bare
Diameter conductor	0.475 mm
Nominal cross section conductor	0.173 mm²
AWG size	Other
Conductor category	Class 1 = solid
Number of cores	8
Number of stranding elements	4
Stranding element	Pairs
Material core insulation	Other
Specification core insulation	Polyethylene (PE)
Core identification according to HD 308 S2	No
Core identification	Colour
Screen over stranding element	None
Stranding	Other
Screen over stranding	None
Longitudinal water blocking cable	No
Radial water blocking cable	No
Suitable for underground installation	No
Approved type of underground installation	Underground installation tube
Material outer sheath	Polyvinyl chloride (PVC)
Colour outer sheath	Grey
Armouring/reinforcement	None
Cable geometry	Round
Flame retardant according to IEC 60332-1-2	Yes
Flame retardant according to IEC 60332-3-22 (Cat A)	No
Flame retardant according to IEC 60332-3-23 (Cat B)	No
Flame retardant according to IEC 60332-3-24 (Cat C)	No
Flame retardant according to IEC 60332-3-25 (Cat D)	No
Low smoke according to EN IEC 61034-2	No
Halogen free according to EN IEC 60754-1	No
Halogen free according to EN IEC 60754-2	No
Reaction-to-fire according to EN 13501-6	Class : Eca
Reaction-to-fire according to EN 13501-6	Smoke production : None
Reaction-to-fire according to EN 13501-6	Flaming droplets/particles : None
Reaction-to-fire according to EN 13501-6	Acidity : None
Oil resistant according to EN IEC 60811-404	No
Outer diameter approximate	4.7 mm
Min. permitted bending radius, moving application/free movement	8 mm
Min. permitted bending radius, stationary application/permanent installation	4 mm
Permitted cable outer temperature during assembling/handling	00 - 50
Permitted cable outer temperature after assembling without vibration	-20 - 60
NVP value	69.7 %
Certified for shipboard application	No
Segregation class according to EN 50174-2	B
Suitable as telephone cable	No
Suitable as computer data cable	Yes
Suitable as signalling cable	No
Suitable for use as security alarm cable	No
Drain wire	No
With rip cord	Yes
Weight	13.5 kg/km
Characteristic impedance	100 Ohm
Max. tensile strength during installation	0.4 kN
Nominal voltage U	300 V
With rodent protection	No
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
