| Applications | IEEE802.3 : 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | U/UTP |
| Category | 5E |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Frequency range | From 0 to 100 Mhz |
| Impedance | 100 |
| Gauge (awg) | 24 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
| Jacket type | PE |
| Outer jacket colour | Black |
| Jacket RAL | RAL 9005 |
| Outer sheath diameter (mm) | 5.4 |
| NVP (%) | 67 |
| Fire behaviour | N/A |
| Insulation diameter (mm) | 1 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA |
| Packaging | 305 m drum |
ETIM features
| Cable type | U/UTP |
|---|---|
| Duplex | No |
| Conductor material | Copper |
| Conductor surface | Bare |
| Diameter conductor | 0.49 mm |
| Nominal cross section conductor | 0.189 mm² |
| AWG size | 24 |
| Conductor category | Class 1 = solid |
| Number of cores | 8 |
| Number of stranding elements | 4 |
| Stranding element | Pairs |
| Material core insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Core identification according to HD 308 S2 | No |
| Core identification | Colour |
| Screen over stranding element | None |
| Stranding | Other |
| Screen over stranding | None |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Colour outer sheath | Black |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | No |
| Reaction-to-fire according to EN 13501-6 | Class : Fca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : None |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : None |
| Reaction-to-fire according to EN 13501-6 | Acidity : None |
| Oil resistant according to EN IEC 60811-404 | No |
| Outer diameter approximate | 5.4 mm |
| Permitted cable outer temperature during assembling/handling | -30 - 60 |
| Permitted cable outer temperature after assembling without vibration | -40 - 70 |
| NVP value | 67 % |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | B |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Suitable for use as security alarm cable | No |
| Drain wire | No |
| With rip cord | Yes |
| Characteristic impedance | 100 Ohm |
| With rodent protection | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
CABLE CAT5E 4P F/UTP LSZH Eca, GREY C100M
GGM C5EF4PZHC1
CABLE CAT5E 4P F/UTP LSZH Eca, GREY 305M BOX
GGM C5EF4PZHU3
CABLE CAT5E 4P F/UTP LSZH Eca, GREY T500M
GGM C5EF4PZHT5
CABLE CAT5E 2X4P F/UTP LSZH Eca, GREY T500M
GGM C5EF2X4ZHT5
CABLE CAT5E 4P U/UTP LSZH Eca, WHITE Box 305M
GGM C5EU4PZHBU3
CABLE CAT5E 4P U/UTP LSZH Eca, WHITE T500M
GGM C5EU4PZHBT5
CABLE CAT5E 4P U/UTP PVC Eca, GREY Box 100M
GGM C5EU4PPVCU1
CABLE CAT5E 4P U/UTP PVC Eca, GREY Box 305M
GGM C5EU4PPVCU3
CABLE CAT5E 4P U/UTP PVC Eca, GREY T500M
GGM C5EU4PPVCT5
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM C5EU4PPET3

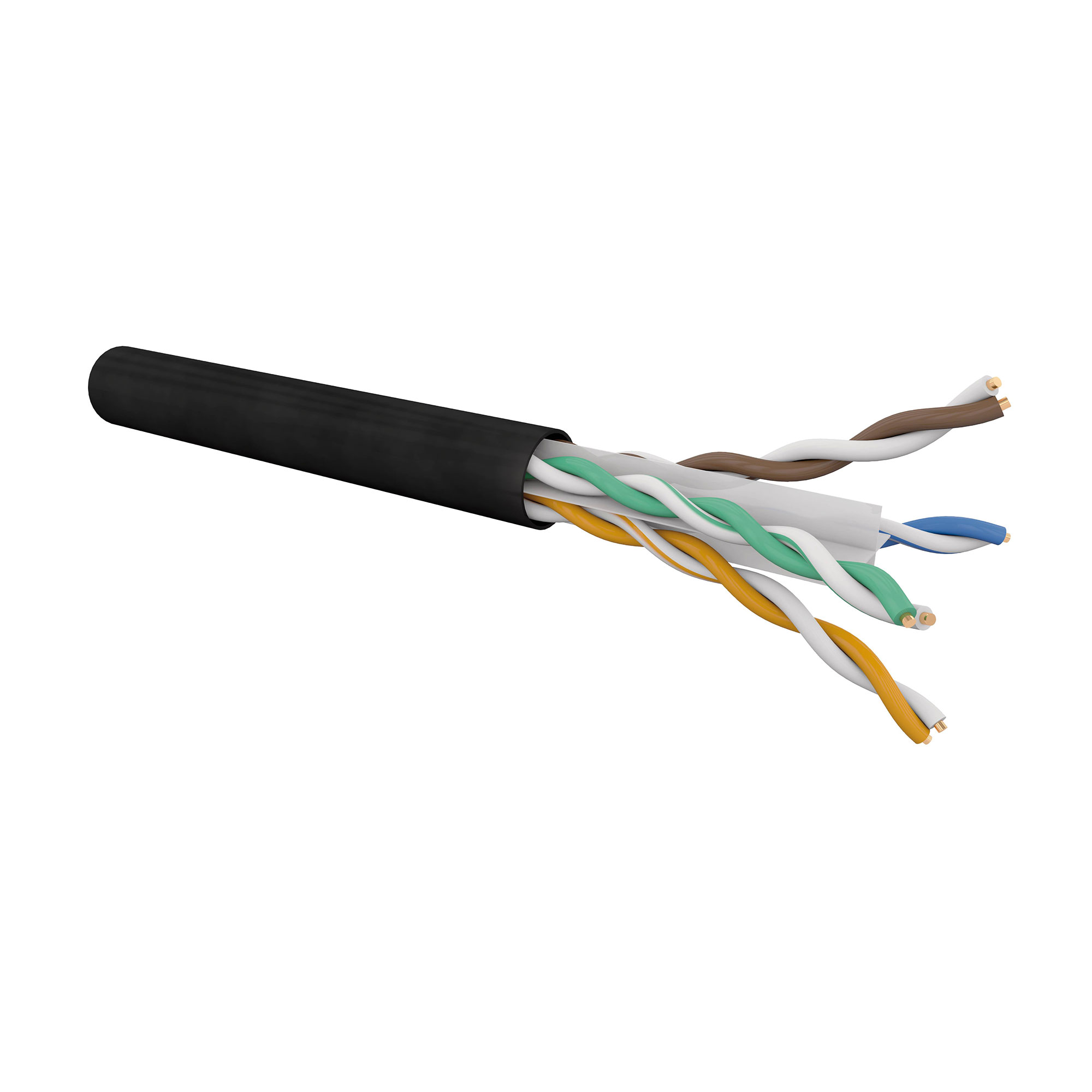

CAT5E 4P UUTP AWG24 PE BLACK EXTERNAL GRADE
