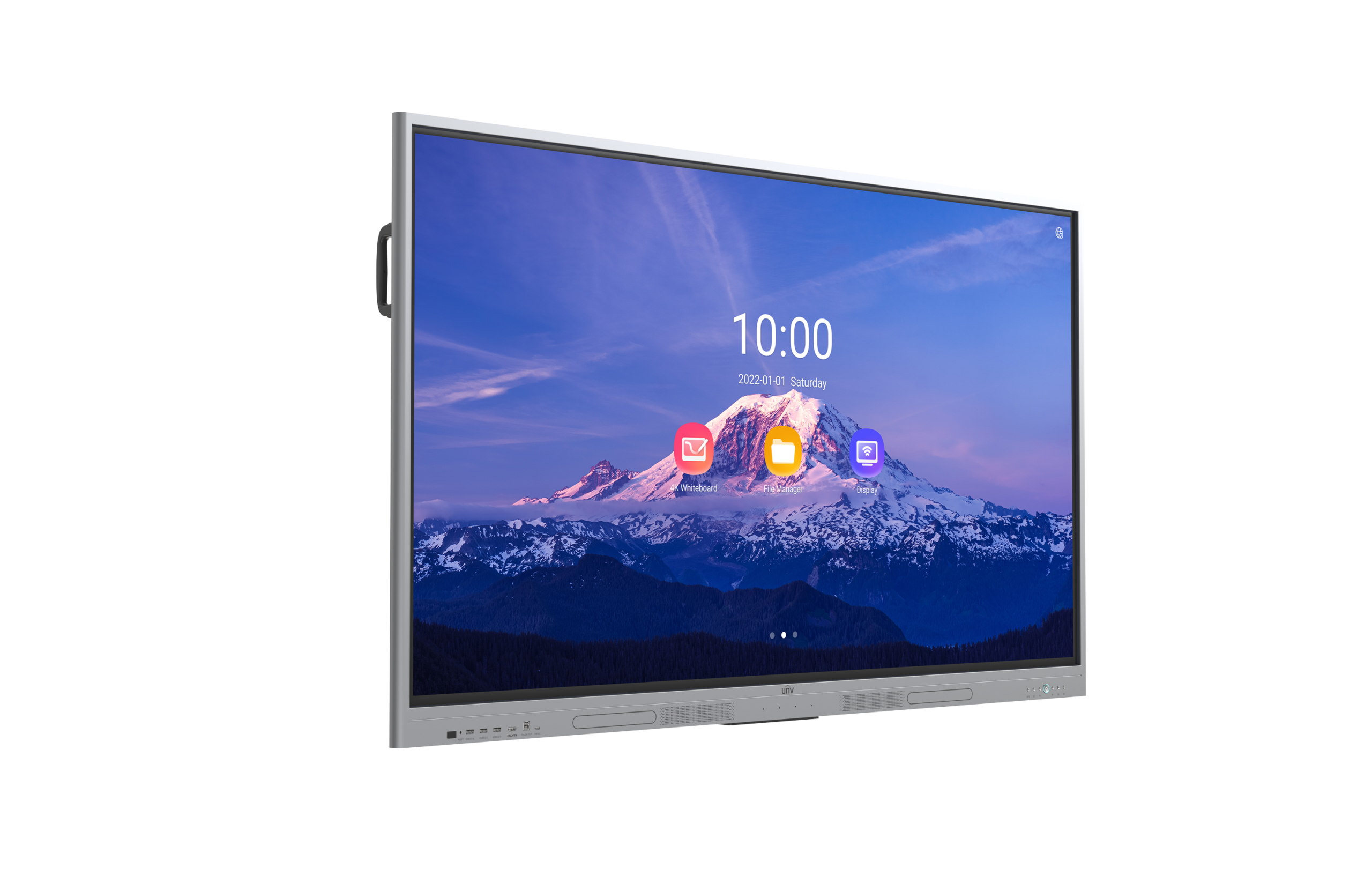

UNW MW3586UC
86″ Smart interactive board UC series 4K resolution network Android 11.0
This 86" panel offers impressive specifications tailored for high-resolution display and interactive touch capabilities: Panel Size: 86" Resolution: 3840 x 2160 pixels (4K UHD) Brightness: 350 cd/m² Contrast Ratio: 1200 : 1 Viewing Angle (H/V): 178°/178° Color Support: 1.07 billion colors System Compatibility: Android 13.0 Touch Control: Contactless IR sensor, supports 32-point touch, 20-point write Touch Precision: ±1 mm CPU: Amlogic T982 (4 x A55 cores) with Mali G52 GPU Touch Response Time: ≤6 ms RAM/ROM: DDR4 4GB / eMMC 32GB This panel combines high-resolution visuals with advanced touch capabilities, making it suitable for interactive applications and providing a smooth…
Read more
This 86" panel offers impressive specifications tailored for high-resolution display and interactive touch capabilities:
Panel Size: 86"
Resolution: 3840 x 2160 pixels (4K UHD)
Brightness: 350 cd/m²
Contrast Ratio: 1200 : 1
Viewing Angle (H/V): 178°/178°
Color Support: 1.07 billion colors
System Compatibility: Android 13.0
Touch Control: Contactless IR sensor, supports 32-point touch, 20-point write
Touch Precision: ±1 mm
CPU: Amlogic T982 (4 x A55 cores) with Mali G52 GPU
Touch Response Time: ≤6 ms
RAM/ROM: DDR4 4GB / eMMC 32GB
This panel combines high-resolution visuals with advanced touch capabilities, making it suitable for interactive applications and providing a smooth and responsive user experience. The Android 13.0 system compatibility ensures modern software support and functionality, enhancing its versatility in various environments.
| Produit | Interactive monitor |
|---|
ETIM features
| Type of display | Other |
|---|---|
| Resolution | 4K UHD |
| Housing colour | Anthracite |
| With display backlight | Yes |
| Colour display | Yes |
| Number of colours of the display | 1070000000 |
| Visible diagonal screen size | 219 cm |
| Visible diagonal screen size (inch) | 86 " |
| Number of pixels, horizontal | 3840 |
| Number of pixels, vertical | 2160 |
| Image format | 16:9 |
| With on-screen keyboard | Yes |
| With touch screen | Yes |
| Mouse-cursor control integrated | No |
| Supply voltage AC 50 Hz | 220 - 220 |
| Supply voltage AC 60 Hz | 110 - 110 |
| Supply voltage DC | 00 - 00 |
| Voltage type (supply voltage) | AC |
| Number of HDMI connections | 4 |
| Number of inputs DisplayPort (DP) | 1 |
| VGA-connection (D-Sub 15-pole) | Yes |
| Number of ports USB-A | 5 |
| Number of ports USB-C | 1 |
| With HW-interface PS2 | No |
| Operating temperature | 00 - 50 |
| Frame frequency | 60 - 60 |
| Freestanding | Yes |
| Suitable for rail mounting | No |
| Wall mounting/direct mounting | Yes |
| Front built-in possible | No |
| Rack-assembly possible | No |
| Mounting Interface Standard (MIS) according to VESA | Other |
| Suitable for safety functions | No |
| Degree of protection (IP) | IP20 |
| Width | 1967 mm |
| Height | 1173 mm |
| Depth | 89 mm |
| Angle of inclination | 00 - 00 |
| Height adjusting range | 00 - 00 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
