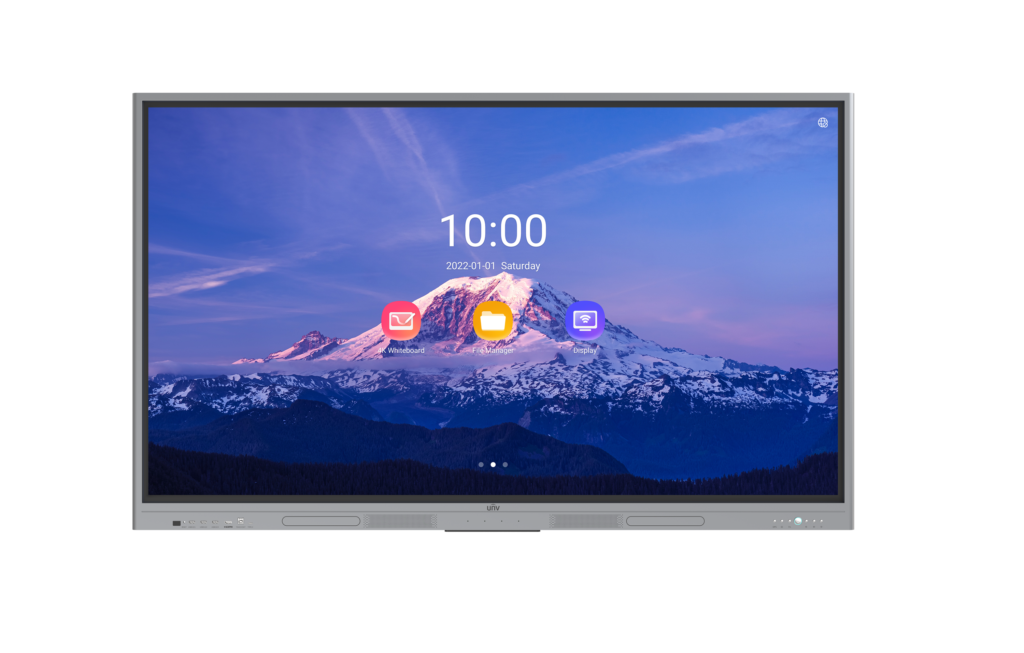

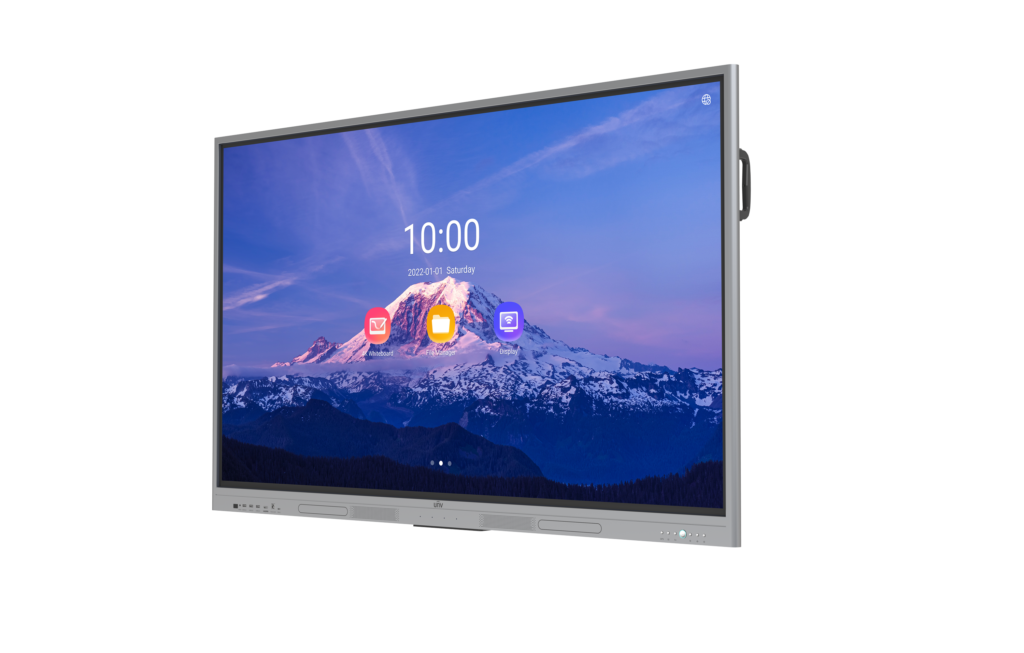

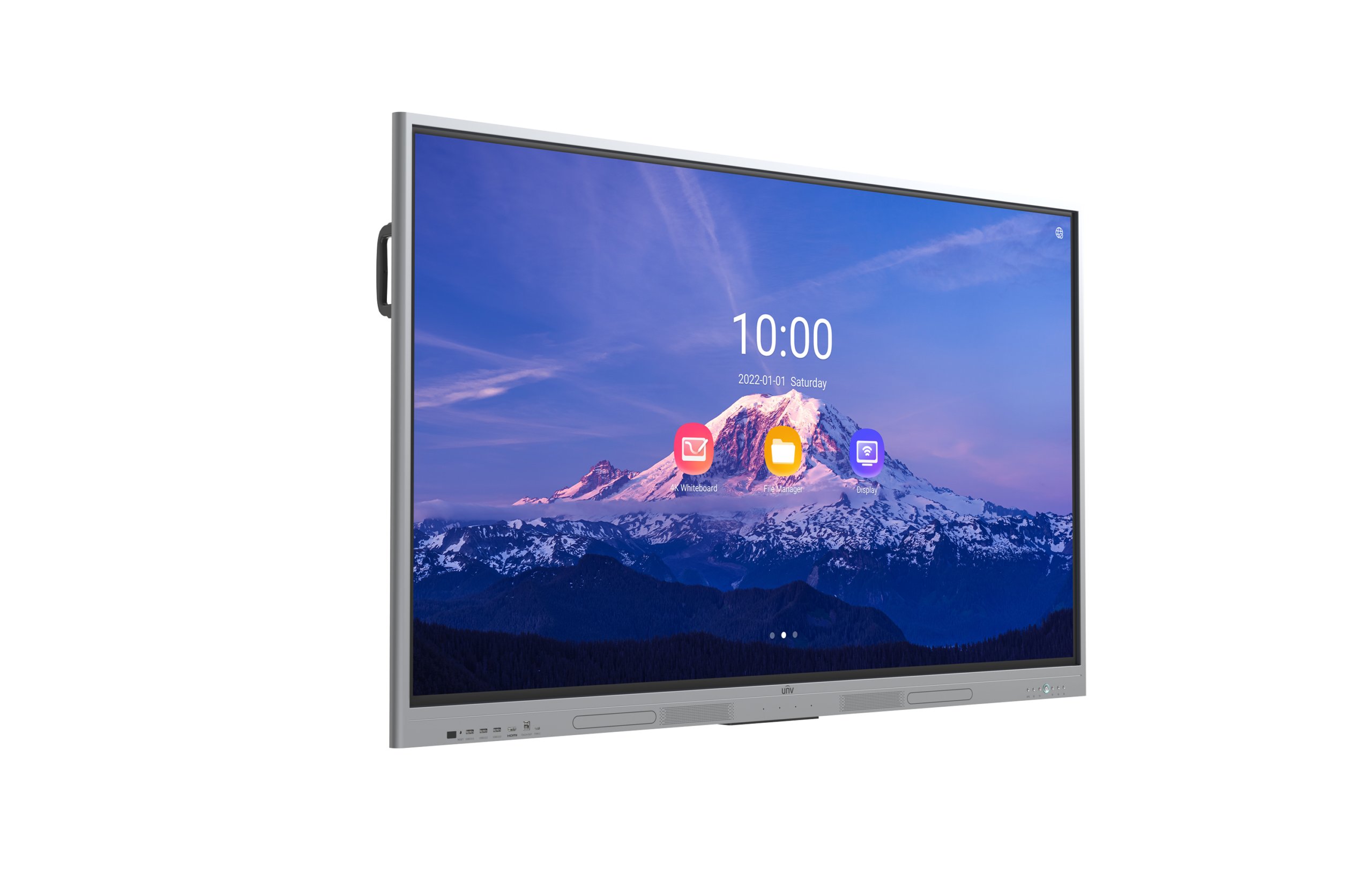

UNW MW3575UC
75 ” Smart interactive board UC series 4K resolution network Android 11.0
This 75" panel offers high-resolution visuals with vibrant colors and wide viewing angles, suitable for various applications. It features advanced touch capabilities with precise control, powered by a robust CPU and GPU combination, and runs on Android 13.0 for a modern and intuitive user experience. Panel Size: 75" Resolution: 3840 x 2160 pixels (4K UHD) Brightness: 350 cd/m² Contrast Ratio: 1200 : 1 Viewing Angle (H/V): 178°/178° Color Support: 1.07 billion colors System Compatibility: Android 13.0 Touch Control: Contactless IR sensor, supports 32-point touch and 20-point write Touch Precision: ±1 mm CPU: Amlogic T982 (4 x A55 cores) and Mali…
Read more
This 75" panel offers high-resolution visuals with vibrant colors and wide viewing angles, suitable for various applications. It features advanced touch capabilities with precise control, powered by a robust CPU and GPU combination, and runs on Android 13.0 for a modern and intuitive user experience.
Panel Size: 75"
Resolution: 3840 x 2160 pixels (4K UHD)
Brightness: 350 cd/m²
Contrast Ratio: 1200 : 1
Viewing Angle (H/V): 178°/178°
Color Support: 1.07 billion colors
System Compatibility: Android 13.0
Touch Control: Contactless IR sensor, supports 32-point touch and 20-point write
Touch Precision: ±1 mm
CPU: Amlogic T982 (4 x A55 cores) and Mali G52 GPU
Touch Response Time: ≤6 ms
Product features
| Produit | Interactive monitor |
|---|
ETIM 9 features
| Type of display | Other |
|---|---|
| Colour display | Yes |
| Voltage type (supply voltage) | AC |
| Supply voltage AC 50 Hz | 220 |
| Supply voltage AC 60 Hz | 110 |
| With HW-interface video signal, analogue | No |
| With HW-interface digital video signal | Yes |
| With HW-interface USB | Yes |
| With HW-interface PS2 | No |
| Number of pixels, horizontal | 3840 |
| Number of pixels, vertical | 2160 |
| With On Screen Display | Yes |
| Integrated keyboard | No |
| With touch screen | Yes |
| Mouse-cursor control integrated | No |
| IP protection | IP20 |
| Operating temperature | 0 - 50 |
| Min. permitted supply voltage | 100 V |
| Suitable for safety functions | No |
| Width | 1720 mm |
| Height | 1035 mm |
| Depth | 89 mm |
