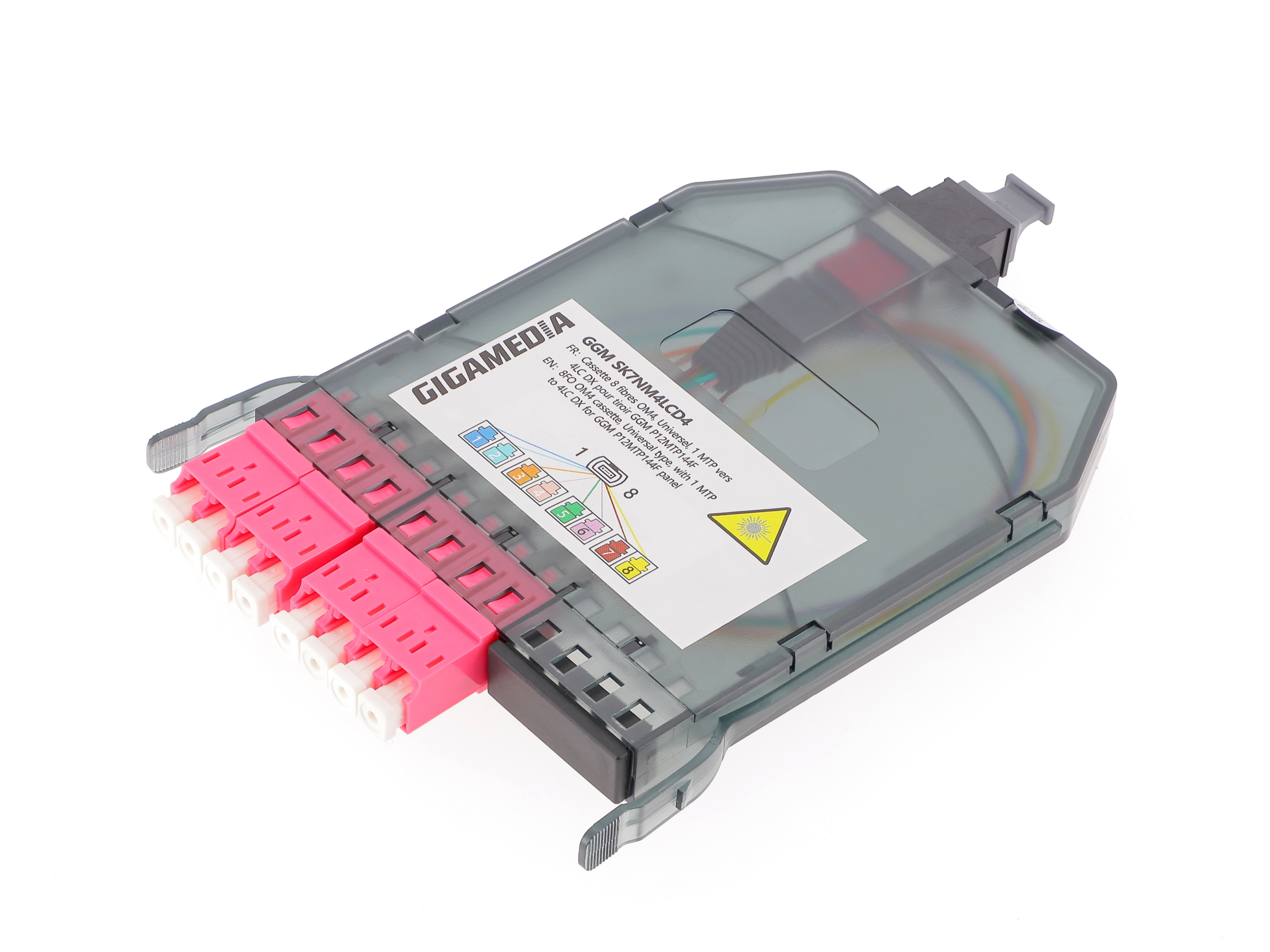

GGM SK7NM4LCD4
8FO OM4 cassette, Universal type, with 1 MTP to 4LC DX for GGM P12MTP144F panel
Dedicated to GGM P12MTP144F datacenter patchpanel, this cassette can split one preterminated multimode OM4 links of 8FO MTP connectors to 4 LC duplex adapters at the front. It offers 40Gbit/s to 10Gbit/s or 100Gbit/s to 25Gbit/s deployments Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.
Read more
Dedicated to GGM P12MTP144F datacenter patchpanel, this cassette can split one preterminated multimode OM4 links of 8FO MTP connectors to 4 LC duplex adapters at the front.
It offers 40Gbit/s to 10Gbit/s or 100Gbit/s to 25Gbit/s deployments
Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.
It offers 40Gbit/s to 10Gbit/s or 100Gbit/s to 25Gbit/s deployments
Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.
| Materials | Plastic |
|---|---|
| Operating temperature | -40° to +85°C |
| Cassette type | SK7N slim |
| Weight (kg) | 0.08 |
| Fiber amount | 8 |
| Fiber type | multimode OM4 |
| Polarity | Universal U1 |
| Total insertion loss (IL) of the cassette | 0,35 / 0,5 |
| Total reflection (RL) of the cassette Typical / Max (dB) | 35 / 25 |
| Cable entry | N/A |
| Cable diameter | N/A |
| Number of adapters (front face) | 4 |
| Number of connectors (front face) | 8 |
| Adapter type (front face) | LC duplex |
| Adapter colour (front face) | erika violet |
| Connector type (front face) | LC duplex |
| Connector gender (front face) | Male |
| Insertion loss (IL) - Front face | 0,1 / 0,15 |
| Return loss (RL) - Front face | N/A |
| Ferrule type (front face) | PC |
| Ferrule material (front face) | ceramic |
| Number of blank plugs (front face) | 1 |
| Number of adapters (rear side) | 1 |
| Number of connectors (rear side) | 1 |
| Adapter type (rear side) | MPO |
| Adapter colour (rear side) | Black |
| Connector type (rear side) | MPO12/8 |
| Connector gender (rear side) | Female |
| Insertion loss (IL) - Rear side | 0,25 / 0,35 |
| Return loss (RL) - Rear side | 35 / 25 |
| Ferrule type (rear side) | PC |
| Ferrule material (rear side) | composite |
ETIM features
| Suitable for number of couplings/adaptors | 4 |
|---|---|
| With number of couplings/adaptors | 4 |
| With front plate | Yes |
| With housing | Yes |
| With pigtails | Yes |
| Fibre type | Multi mode 50/125 |
| Fibre class | OM4 |
| APC-version | No |
| Type of connector external | LC-Duplex |
| Type of connector interior | MT/MPO |
| Colour | Black |
| RAL-number | 9005 |
| Mounting method | 482.6 mm (19 inch) mounting |
| Height | 11.8 mm |
| Width | 95 mm |
| Depth | 123 mm |
