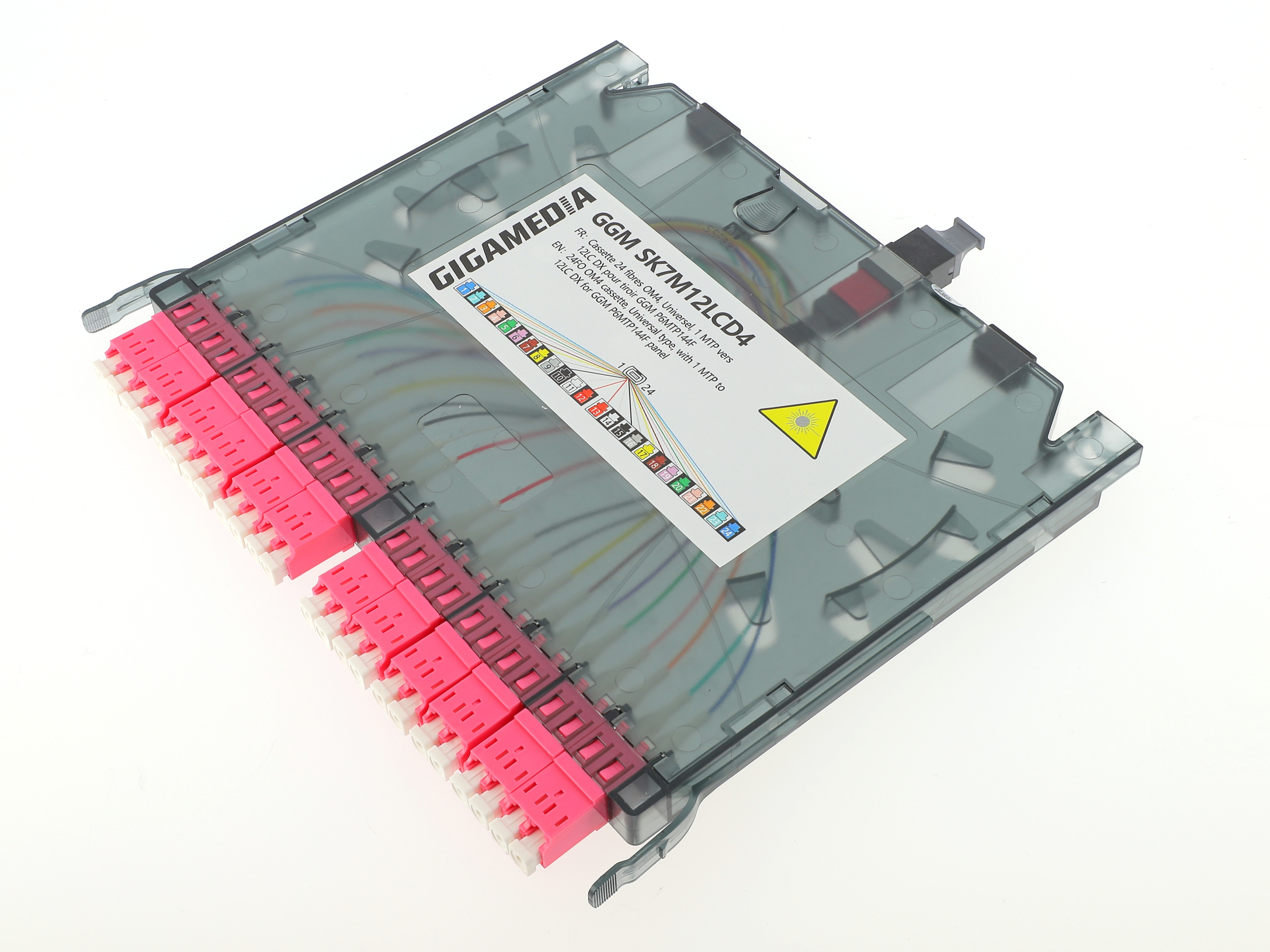

GGM SK7M12LCD4
24FO OM4 cassette, Universal type, with 1 MTP to 12LC DX for GGM P6MTP144F panel
Dedicated to GGM P6MTP144F datacenter patchpanel, this cassette can split one preterminated multimode OM4 link of 24FO MTP connectors to 12 LC duplex adapters at the front. It offers 10Gbit/s performances deployment or ease of migrations to 40Gbit/s ou 100Gbit/s. Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.
Read more
Dedicated to GGM P6MTP144F datacenter patchpanel, this cassette can split one preterminated multimode OM4 link of 24FO MTP connectors to 12 LC duplex adapters at the front.
It offers 10Gbit/s performances deployment or ease of migrations to 40Gbit/s ou 100Gbit/s.
Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.
It offers 10Gbit/s performances deployment or ease of migrations to 40Gbit/s ou 100Gbit/s.
Ultra compact & lightweight, slim format (transparent plastic) with universal polarity.
| Materials | Plastic |
|---|---|
| Operating temperature | -40° to +85°C |
| Cassette type | SK7M slim |
| Weight (kg) | 0.2 |
| Fiber amount | 24 |
| Fiber type | multimode OM4 |
| Polarity | Universal U1 |
| Total insertion loss (IL) of the cassette | 0,35 / 0,5 |
| Total reflection (RL) of the cassette Typical / Max (dB) | 35 / 25 |
| Cable entry | 2 |
| Cable diameter | 8mm |
| Number of adapters (front face) | 12 |
| Number of connectors (front face) | 24 |
| Adapter type (front face) | LC duplex |
| Adapter colour (front face) | erika violet |
| Connector type (front face) | LC duplex |
| Connector gender (front face) | Male |
| Insertion loss (IL) - Front face | 0,1 / 0,15 |
| Return loss (RL) - Front face | N/A |
| Ferrule type (front face) | PC |
| Ferrule material (front face) | ceramic |
| Number of adapters (rear side) | 1 |
| Number of connectors (rear side) | 1 |
| Adapter type (rear side) | MPO |
| Adapter colour (rear side) | Black |
| Connector type (rear side) | MPO24 |
| Connector gender (rear side) | Male |
| Insertion loss (IL) - Rear side | 0,25 / 0,35 |
| Return loss (RL) - Rear side | 35 / 25 |
| Ferrule type (rear side) | PC |
| Ferrule material (rear side) | composite |
| Number of blank plugs (rear side) | 2 |
ETIM features
| Suitable for number of couplings/adaptors | 24 |
|---|---|
| Suitable for number of module inserts | 12 |
| With number of couplings/adaptors | 12 |
| With front plate | Yes |
| With housing | Yes |
| With pigtails | Yes |
| Fibre type | Multi mode 50/125 |
| Fibre class | OM4 |
| APC-version | No |
| Type of connector external | LC-Duplex |
| Type of connector interior | MT/MPO |
| Colour | Black |
| RAL-number | 9005 |
| Mounting method | 482.6 mm (19 inch) mounting |
| Height | 11.8 mm |
| Width | 200 mm |
| Depth | 160 mm |
