GGM INSP5G

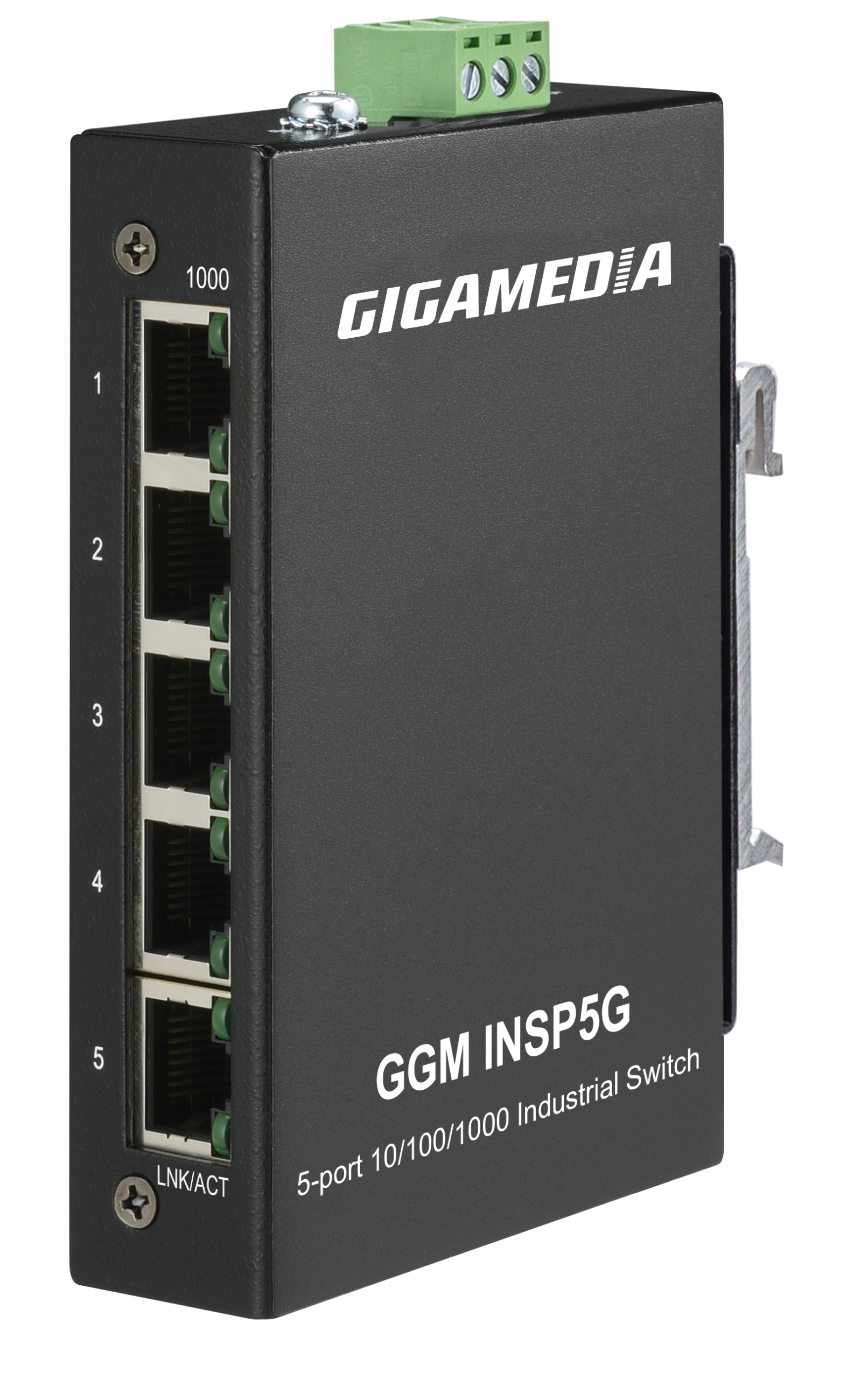

Premium Unmanaged Industrial DIN RAIL Switch 5-port GE

GGM INSP5G is a non-manageable Industrial switch with 5 Gigabit RJ45 ports and Premium features for simplified interconnection between devices, but with high traffic requirements.
This switch is used with robots and their peripherals, such as PLCs and HMIs.
What's more, it offers auto-negotiation on all its ports for easy device aggregation in industrial Ethernet applications.
GGM INSP5G offers a range of integrated traffic optimization and network performance functions to prioritize important industrial data packets, prevent data loss during communication and ensure stable transmission, such as flow control and VLAN Passthru. It prioritizes industrial protocols such as Ethernet/IP, PROFINET and GOOSE packets. In addition, it offers per-port and per-tag 802.1p QoS to guarantee transmission of high-priority data.
GGM INSP5G is built with industrial-grade components to protect it from hazards such as vibration, shock, drops, interference and dust, making it resistant to harsh industrial environments.

Rugged components designed for harsh industrial environments
Fast, convenient installation with auto-negotiation
Prevents packet loss thanks to VLAN Passthru
Industrial QoS (EIP (EtherNet/IP), PROFINET and GOOSE packets, port priority, 802.1p tag)

Produit	Unmanaged Switch

Hardware

CPU	N/A
Housing	Aluminum
Mounting type	DIN RAIL
IP rating	IP30
MTBF (H)	1473883

Standards

IEEE 802.3 10BASE-T Ethernet	Yes
IEEE 802.3u 100BASE-TX Fast Ethernet	Yes
IEEE 802.3ab 1000BASE-T Gigabit Ethernet	Yes
IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic	No
IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic	No
IEEE 802.3ae 10 Gigabit Ethernet	No
IEEE 802.3bz 2.5 & 5 Gigabit Ethernet	No
IEEE 802.3 NWay auto-negotiation	Yes
IEEE 802.3x Flow Control	Yes
IEEE 802.3az Energy-Efficient Ethernet (EEE)	No

Port Configuration

10M/100M/1G RJ45 Port	5
Physical Stack	No
Console Port Type	None

PoE Function

IEEE802.3at (PoE+ 30W)	No
IEEE802.3af (PoE 15.4W)	No
UPoE(60W)	No
IEEE802.3bt (PoE+ 90W)	No
Long Range PoE (250m)	No

Hardware Performance

Transmission Mode	Store and Forward
Switching Bandwidth (Gbps)	10
Forwarding Performance (Mpps)	7.4
MAC Address (K)	2
Jumbo Frames (Bytes)	9216

Environmental Specification

Operating Temperature (°C)	-40 - 75
Operating Humidity (% - non condensing)	5 - 95
Storage Temperature (°C)	-40 - 85
Storage Humidity (% - non condensing)	5 - 95
Heat Dissipation - Idle (BTU/H)	10.23
Heat Dissipation - Max (Full Load) (BTU/H)	10.23
Green Feature (802.3az) - Power saving by link status	No
Green Feature (802.3az) - Power saving by cable length	No
Green Feature (802.3az) - Time-based PoE	No
Green Feature (802.3az) - Power saving by LED shut-off	No
Green Feature (802.3az) - Power saving by port shut-off	No
Green Feature (802.3az) - Power saving by system hibernation	No

Mechanical Specification

Product Dimensions - w/o packaging - Width (mm)	23.6
Product Dimensions - w/o packaging - Height (mm)	111.5
Product Dimensions - w/o packaging - Depth (mm)	73.8
Product Weight - without packaging (g)	183.4
FAN - Fan less	Yes

Power Source

Built-in Power Supply	No
AC Input (V)	0 - 0
DC Input (V)	12 - 48
Dual Input - Redundant power supply	No
Power Consumption - Idle (W)	3
Power Consumption - Max (Full Load) (W)	3
Reverse Polarity Protection	Yes
Over Load Protection	Yes

Certifications

EMI - FCC Part 15	Yes
EMI - EN 55011	Yes
EMI - EN 55032	Yes
EMI - EN 61000-6-4	Yes
EMS - EN 55024	Yes
EMS - EN 61000-6-2	Yes
EMS - EN 61000-4-2 (ESD)	Yes
EMS - EN 61000-4-3 (RS)	Yes
EMS - EN 61000-4-4 (Burst)	Yes
EMS - EN 61000-4-5 (for RJ45 Port, Surge 6KV)	Yes
EMS - EN 61000-4-6 (CS)	Yes
EMS - EN 61000-4-8 (PFMF)	Yes
Shock - IEC 60068-2-27	Yes
Freefall - IEC 60068-2-32	Yes
Vibration - IEC 60068-2-6	Yes
Rail Traffic - EN 50155	No
Rail Traffic - EN 50121-4	No
Power Substation - IEEE1613	No
Power Substation - IEC61850-3	No
Marine - DNV-CS-0339	2016 : No
Marine - DNV-RU-SHIP-Pt4Ch9	2018 : No
Marine - IEC-60945, IACS E10 (Rev.6 2014)	No
Marine - LR certify environmental category ENV1, ENV2 and ENV3	No

Premium Features

LLDP Filter	Yes
VLAN Passthru	Yes
Port Priority (P1)	Yes
802,1p/Tag QoS	Yes
EIP QoS (via TCP/UDP)	Yes
PROFINET QoS (via VLAN 10)	Yes
GOOSE QoS (via Ether-type)	Yes

ETIM features

Ethernet	Yes
Number of ports 10/100/1000 Mbps RJ45	5
Power over Ethernet (PoE)	None
Max. power consumption	3 W
Redundant power supply	No
Mounting method	DIN rail (top hat rail)
Layer 2	No
Layer 3	No
Manageable	No
Degree of protection (IP)	IP30
Height	111.5 mm
Width	23.6 mm
Depth	87 mm
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
