| Characteristic impedance (ohms) | 80 |
|---|---|
| Color code | DIN4700 |
| Conformity | DIN VDE-812 |
| Flame resistance | IEC 332-1 |
| Conductor type | Flexible stranded annealed copper core |
| Operating voltage | 250 V |
| Outer sheath marking | Gigamedia - liyy - din4700 - (number of conductors) x (section) - ce - rohs - (batch number) xxxxm |
| PB_Paginated | 1 |
| Sheath RAL | 7032 |
| Jacket color | Grey |
| Jacket | PVC |
| Insulation type | PVC |
| Maximum service temperature (°c) | 70 |
| Minimum service temperature (°c) | -5 |
| Packing method | On cut |
| Conductors size | 1 mm2 |
| Number of conductors | 4 |
ETIM features
| Conductor material | Copper |
|---|---|
| Conductor surface | Bare |
| Nominal cross section conductor | 1 mm² |
| Conductor category | Class 2 = stranded |
| Number of cores | 4 |
| Number of stranding elements | 4 |
| Screen over stranding element | Braiding |
| Stranding element | No |
| Screen over stranding | Braiding |
| Material core insulation | Other |
| Specification core insulation | Other |
| Core identification according to HD 308 S2 | No |
| Core identification | Colour |
| With protective conductor | No |
| Drain wire | No |
| Suspension element | None |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Specification material outer sheath | Polyethylene (PE) |
| Colour outer sheath | Grey |
| Screen | Yes |
| Cable geometry | Round |
| Armouring/reinforcement | Braiding |
| Material armouring | Copper |
| Flame retardant according to IEC 60332-1-2 | No |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | No |
| Halogen free according to EN IEC 60754-1 | No |
| Halogen free according to EN IEC 60754-2 | No |
| Halogen free according to EN IEC 60754-3 | No |
| Reaction-to-fire according to EN 13501-6 | Class : Eca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : None |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : None |
| Reaction-to-fire according to EN 13501-6 | Acidity : None |
| Oil resistant according to EN IEC 60811-404 | No |
| Low temperature resistant according to EN 60811-504+505+506 | No |
| Outer diameter approximate | 7.2 mm |
| Permitted cable outer temperature during assembling/handling | -05 - 60 |
| Permitted cable outer temperature after assembling without vibration | -30 - 70 |
| Nominal voltage U | 500 V |
| Shape of conductor | Round |
Product information
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects

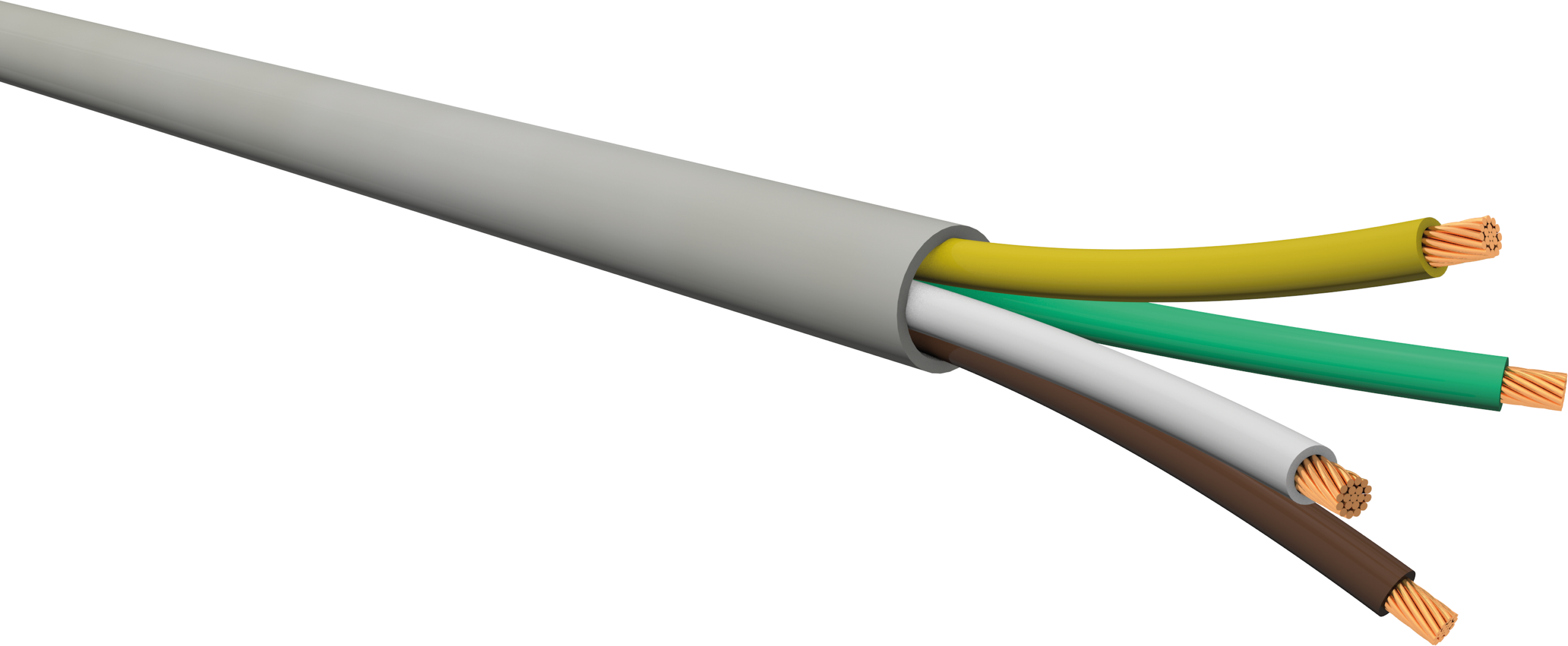

GGM FCSYY4X1ST
