Product features
| Frame | Zinc plated steel, mechanically welded |
|---|---|
| Mounting profiles | Adjustable in depth (zinc plated) |

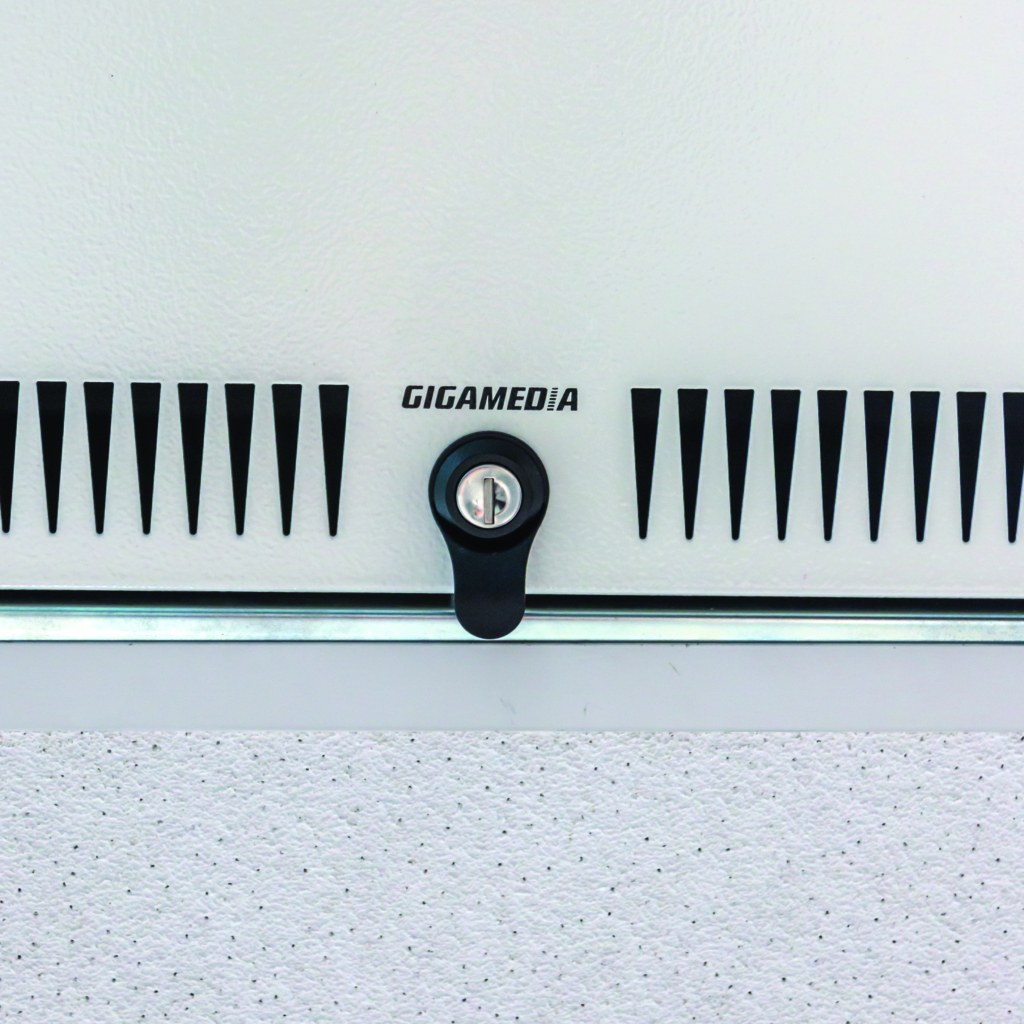

| Front door | Metal solid door (RAL 9010 white) with Ventilation, can be opened up to 90°, locked by using key lock (N°333) |
| Cable entries | Cables entries on each sides (brush and blanking panels included) |

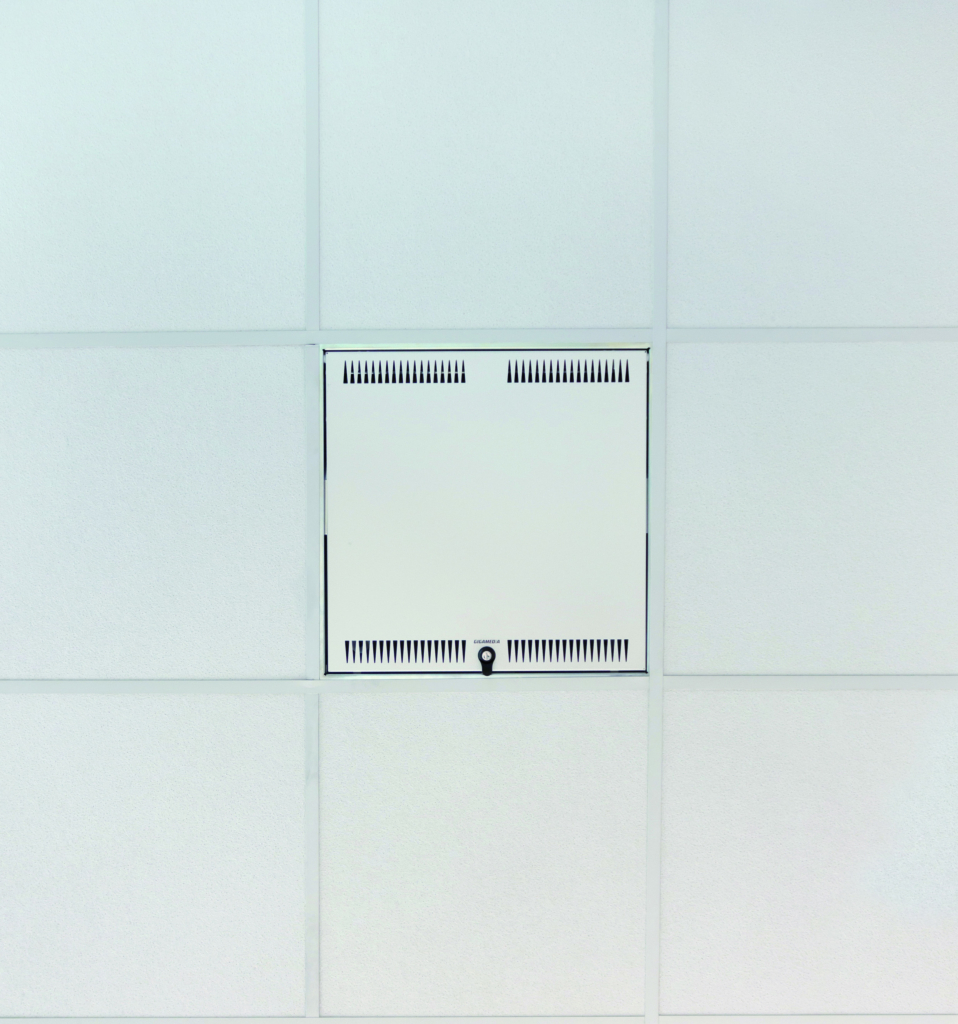

| Installation | In place of a suspended ceiling tile, suspended from the building's structure (4 attachment points provided) |
| Outside dimensions (D x W x H) mm | 595 x 595 x 315 mm |
| Useful Depth | 300 |
| Capacity | 4 |
| Load capacity | 20 |
| Earthing kit included | Yes |
| Cylinder | Gas cylinders |
ETIM 9 features
| Model | Other |
|---|---|
| Type of profile rail | L-shaped |
| Number of doors | 1 |
| Type of ventilation | Passive |
| Width | 595 mm |
| Height | 315 mm |
| Depth | 595 mm |
| Modular spacing | 482.6 mm (19 inch) |
| Height (U) | 4 |
| Max. load capacity | 20 kg |
| With earthing | Yes |
| Material | Steel |
| Surface finishing | Powder coating |
| Colour | White |
| RAL | 9010 |
| IP protection | Other |
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM CBOX
19″ Cabling ceiling mount cabinet CEILING BOX 4U – Black
