| Produit | CAT5E SFUTP PUR |
|---|---|
| Jacket type | PUR |
| Outer jacket colour | Green |
| Jacket RAL | RAL 6018 |
| Outer sheath diameter (mm) | 6.3 |
| NVP (%) | 67 |
| Fire behaviour | N/A |
| Insulation diameter (mm) | 1.51 |
| Insulation Material | Polyethylene |
| Marking | GIGAMEDIA PROFINET Type C Trailing cable IEC 61156-6 CAT5E SF/UTP PUR 4 CORE AWG22/7 E307279-FCHI35510 c(UL)us CMX XXXXXXXX (BATCH CODE) – XXXX M (circulated length mark in meters). (pulling start from 0500m) |
| Packaging | 500 m drum |
ETIM features
| Cable type | SF/UTP |
|---|---|
| Duplex | No |
| Conductor material | Copper |
| Conductor surface | Bare |
| Diameter conductor | 0.65 mm |
| Nominal cross section conductor | 0.332 mm² |
| AWG size | 22 |
| Conductor category | Class 2 = stranded |
| Number of cores | 4 |
| Number of stranding elements | 4 |
| Stranding element | Pairs |
| Material core insulation | Other |
| Specification core insulation | Polyethylene (PE) |
| Core identification according to HD 308 S2 | No |
| Core identification | Colour |
| Screen over stranding element | None |
| Screen over stranding | Foil + braiding |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Specification material outer sheath | Polyethylene (PE) |
| Colour outer sheath | Green |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | No |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | No |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | No |
| Reaction-to-fire according to EN 13501-6 | Class : None |
| Reaction-to-fire according to EN 13501-6 | Smoke production : None |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : None |
| Reaction-to-fire according to EN 13501-6 | Acidity : None |
| Oil resistant according to EN IEC 60811-404 | No |
| Outer diameter approximate | 6.3 mm |
| Permitted cable outer temperature during assembling/handling | 00 - 50 |
| Permitted cable outer temperature after assembling without vibration | -30 - 85 |
| Category | 5E |
| NVP value | 67 % |
| Certified for shipboard application | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
Product information
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM C5EPROFPURST

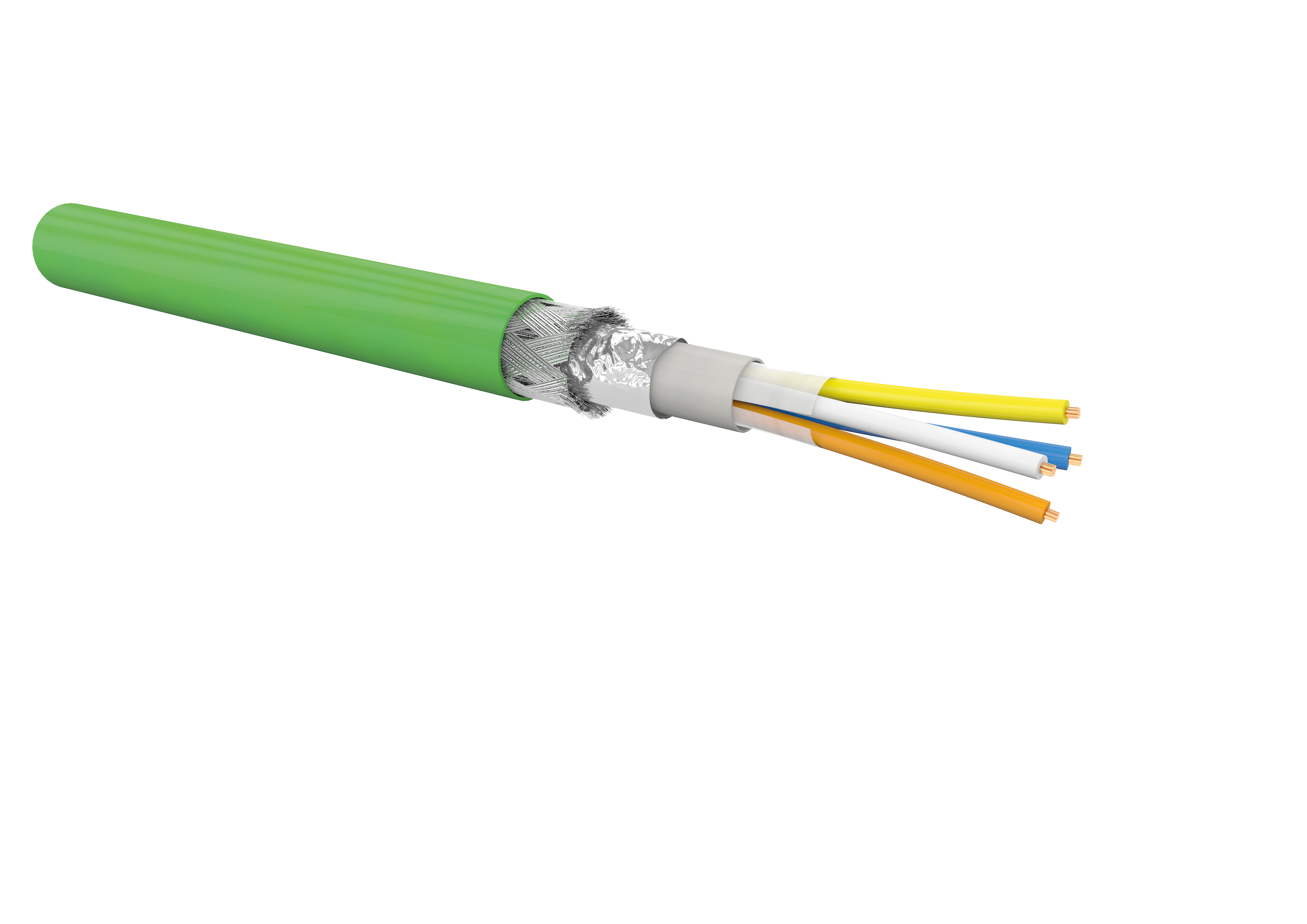

Category 5E profinet type C cable 4P AWG22/7 SF/UTP PUR green jacket
