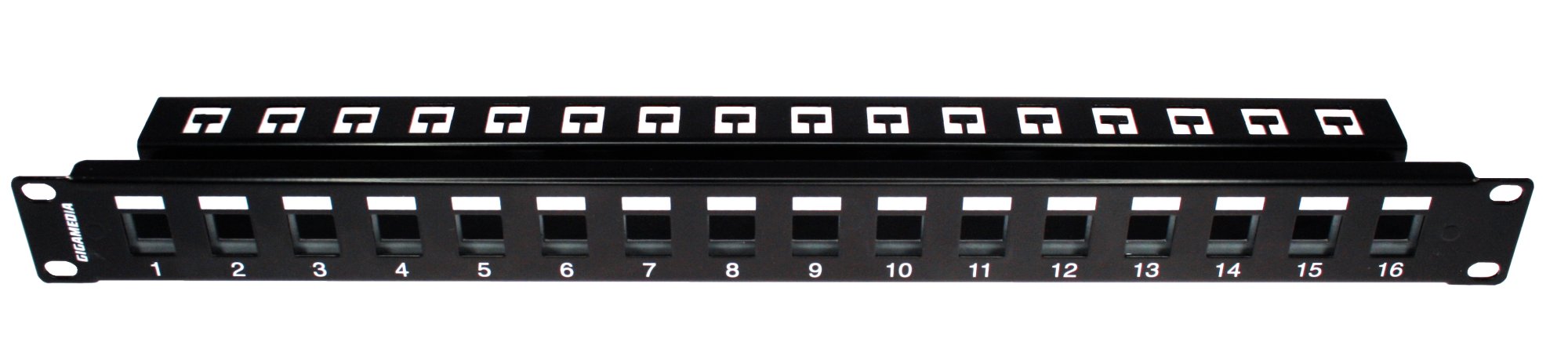

GGM PANV16PMKB

16″ 1U EMPTY METAL PANEL

From a completely modular design or not, the GIGAMEDIA range of panels offers an economic solution and competitive cost/port ratio. It has possibility for markings and identification. Ready to accept a substantial number of active links, they are robust, have a rear support plate and thus guarantee reliability when mounted in a 19″ environment. NB: Delivered without connectors

Applications	N/A
Category	N/A
Color code	N/A
Standards	ANSI/TIA-568.2-D, ; EN 50173 ; ISO/IEC 11801
Connector type	Female
Height in U	1
Impedance	100
Connection mode	N/A
Equip	No
Port density	16
Port identification	Numbering, marking area
Color	Black
Pro. 110 IDC block with cutting blade	N/A

ETIM features

Number of buses/couplings	16
Suitable for number of connectors	16
Type of connector	RJ45 8(8)
Screened	Yes
Connection type	Other
Number of height units	1
Colour	Black
RAL-number	9005
Mounting method	482.6 mm (19 inch) mounting
Height	44.45 mm
Width	482.6 mm
Depth	160 mm
Compatible with Grade2TV according to XP-C 90-483	No
Compatible with Grade3TV according to XP-C 90-483	No
