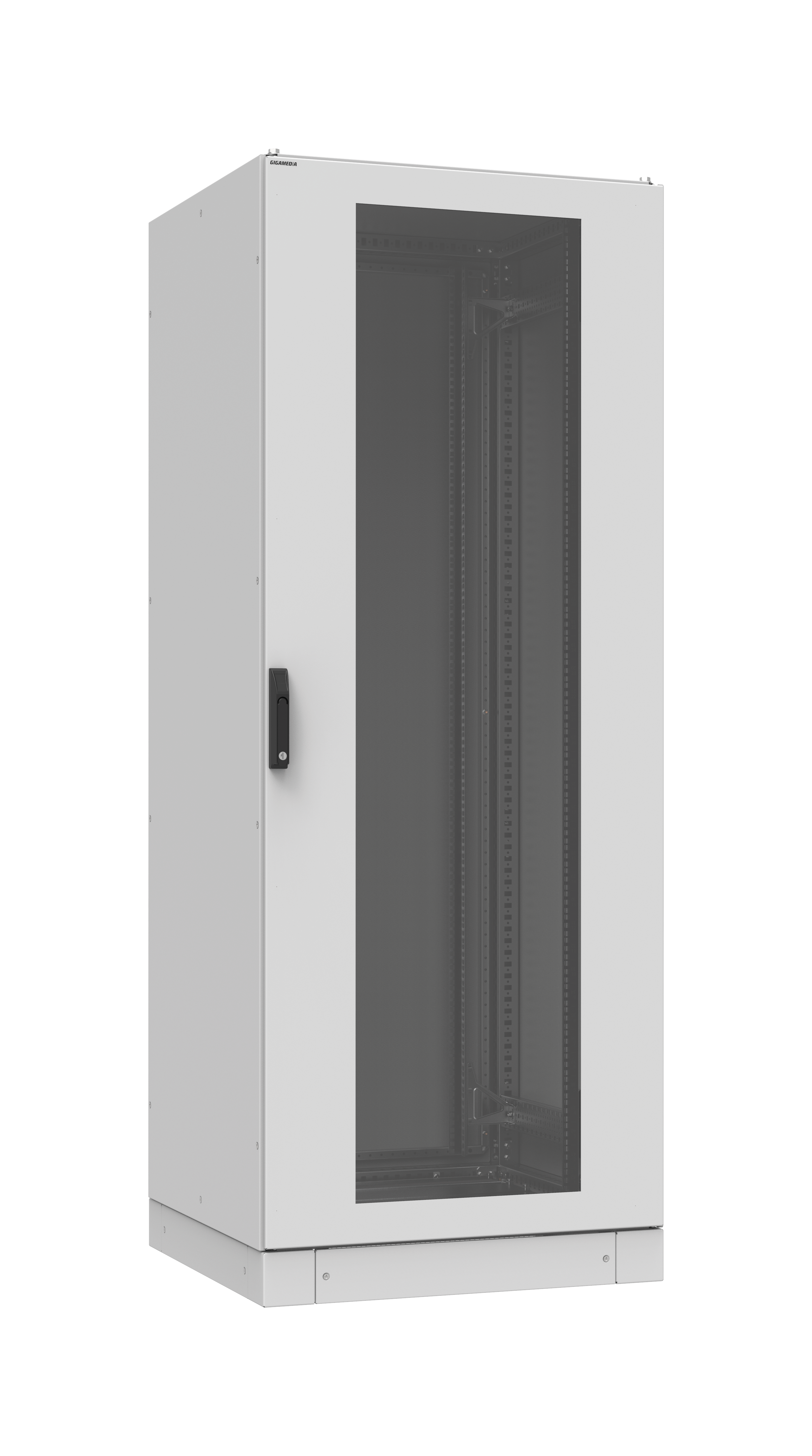

GGM IP4288N

19″ Cabling floor standing cabinet IPRACK 42U 800 X 800 mm – Grey

Specially designed to meet (according to their classification) the requirements required within some premises ( Ex : Industry, warehouse, car park, ...). The IPRACK is characterized by the level of sealing it provides against dust and against water jets from all directions at the lance, according to the IEC 60529 standard. A product of very high quality, both in terms of design and finish, it will meet the most stringent requirements. For indoor installation only. Other dimensions and configurations possible, please ontact us.

Specially designed to meet (according to their classification) the requirements required within some premises ( Ex : Industry, warehouse, car park, ...).
The IPRACK is characterized by the level of sealing it provides against dust and against water jets from all directions at the lance, according to the IEC 60529 standard.

A product of very high quality, both in terms of design and finish, it will meet the most stringent requirements.
For indoor installation only.
Other dimensions and configurations possible, please ontact us.

Type	Cabling
Frame	Galvanized steel, mechanically screwed (fully removable)
Mounting profiles	Four 19″ mounting profiles adjustable in depth (zinc plated), “U” markings, 9.5 x 9.5 mm perforations
Front door	Reversible security front glass door with frame, can be opened up to 150°, locked by using multipoint swing handle with key lock (N°333)
Rear door	Reversible full metal door, can be opened up to 150°, locked by using multipoint swing handle with key lock (N°333)
Side panels	Removable, locked by using screws to the frame
Roof	Full metal plate
Base	Full, with 3 removable partial shutter plates
Ground contact	100 mm plinth
Colour	Grey
Paint feature	Doors, panels and top sheet are coated with epoxy-polyester paint
Gaskets feature	All gaskets are in hot-cast polyurethane
Protection (IP)	55
Load capacity	1300
Earthing kit included	Yes
Capacity (U)	42
Height (mm)	2100
Width (mm)	800
Depth (mm)	800

ETIM features

Mounting level	Front and rear
Type of profile rail	L-shape
Number of doors	2
Type of ventilation	None
Width	800 mm
Height	2110 mm
Depth	800 mm
Modular spacing	482.6 mm (19 inch)
Number of height units	42
Max. load capacity	1300 kg
With roof plate	Yes
With earthing	Yes
With front door	Yes
Material front door	Glass
Front door locking system	3-point
With rear door	Yes
Material rear door	Steel
Rear door locking system	3-point
With glazed door	No
With sidewall	Yes
With base	Yes
With vertical cable management	No
Material	Steel
Surface finishing	Powder coating
Model	With permanent frame
RAL-number	7035
Demountable	Yes
Degree of protection (IP)	IP55
Degree of protection (NEMA)	Other
