GGM FO12B3DLST

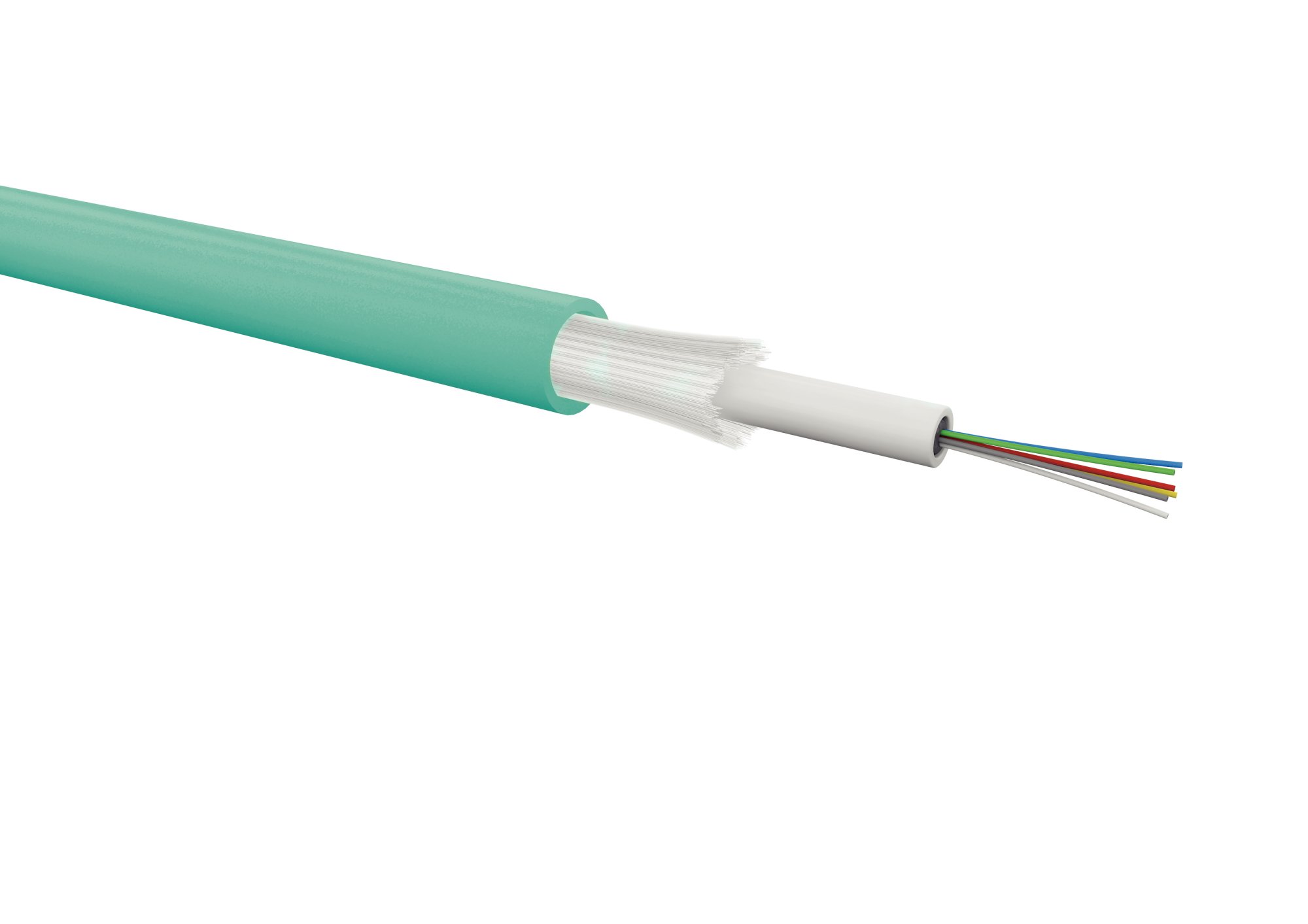

12FO OM3 indoor/outdoor loose tube cable with glass yarns, LSZH Dca outer jacket
Read more
| Cable type | Loose tube 250 µm |
|---|---|
| Installation | indoor/outdoor |
| Watertightness | Dry & longitudinal |
| Jacket | LSOH |
| Euroclass | Dca-s2, d2, a1 |
| Bandwidth @1300 nm | OM3 ≥ 500 MHz/km |
| Bandwidth at 1310/1550 nm | N/A |
| Bandwidth @850 nm | OM3 ≥ 2000 MHz/km |
| Bandwidth at 850 nm emb | OM3 ≥ 2000 MHz/km |
| Bending radius - minimum static (mm) | 90 |
| Bending radius - minimum dynamic (mm) | 120 |
| Cable weight (kg/km) | 46 |
| Packaging | On cut |
| Crush resistance (N) | 1500 |
| Diameter (mm) | 6 |
| Fire behaviour | EN 13501-6 : Dca, s2, d1, a1 ; EN 50575, EN 50399, EN 60332-1-2 |
| Marking | [Longueur] [GIGAMEDIA 12FO 50/125 OM3 CLT LSZH] [Dca s2 d1 a1] [CLT FO CABLE FCTD012T] [Semaine/Année] |
| Attenuation | At 850nm: om3 ≤ 2.0db/km |
| Fiber amount | 12 |
| Strength member | : Glass yarns protection against rodent |
| Operating temperature | -20°C to +70°C |
| Bandwidth at 850 nm dmd | OM3 ≥ 1500 MHz/km |
| Central strength member | No |
| Jacket type | LSZH |
| Tensile strength (n) | 1050 |
| Operating environment | Indoor / Outdoor |
ETIM features
| Number of fibres | 12 |
|---|---|
| Type of tube | Central tube |
| Number of fibres per tube | 12 |
| Fibre type | Multi mode 50/125 |
| Category | OM3 |
| With strain relief | No |
| With rodent protection | Yes |
| Armouring/reinforcement | Other |
| Material armouring | Other |
| Material outer sheath | Other |
| Specification material outer sheath | Other |
| Colour outer sheath | Turquoise |
| Longitudinal water blocking cable | Yes |
| Radial water blocking cable | Yes |
| Cable metal free | Yes |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | Yes |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-1 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Reaction-to-fire according to EN 13501-6 | Class : Dca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s2 |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d1 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant according to EN IEC 60811-404 | No |
| Resistant to chemicals | No |
| Outer diameter approximate | 6 mm |
| Min. permitted bending radius, stationary application/permanent installation | 90 mm |
| Max. tensile strength during installation | 1050 kN |
| Suitable for underground installation | No |
| Blow in | Yes |
| Weight | 46 kg/km |
