GGM D6MLCLC2M

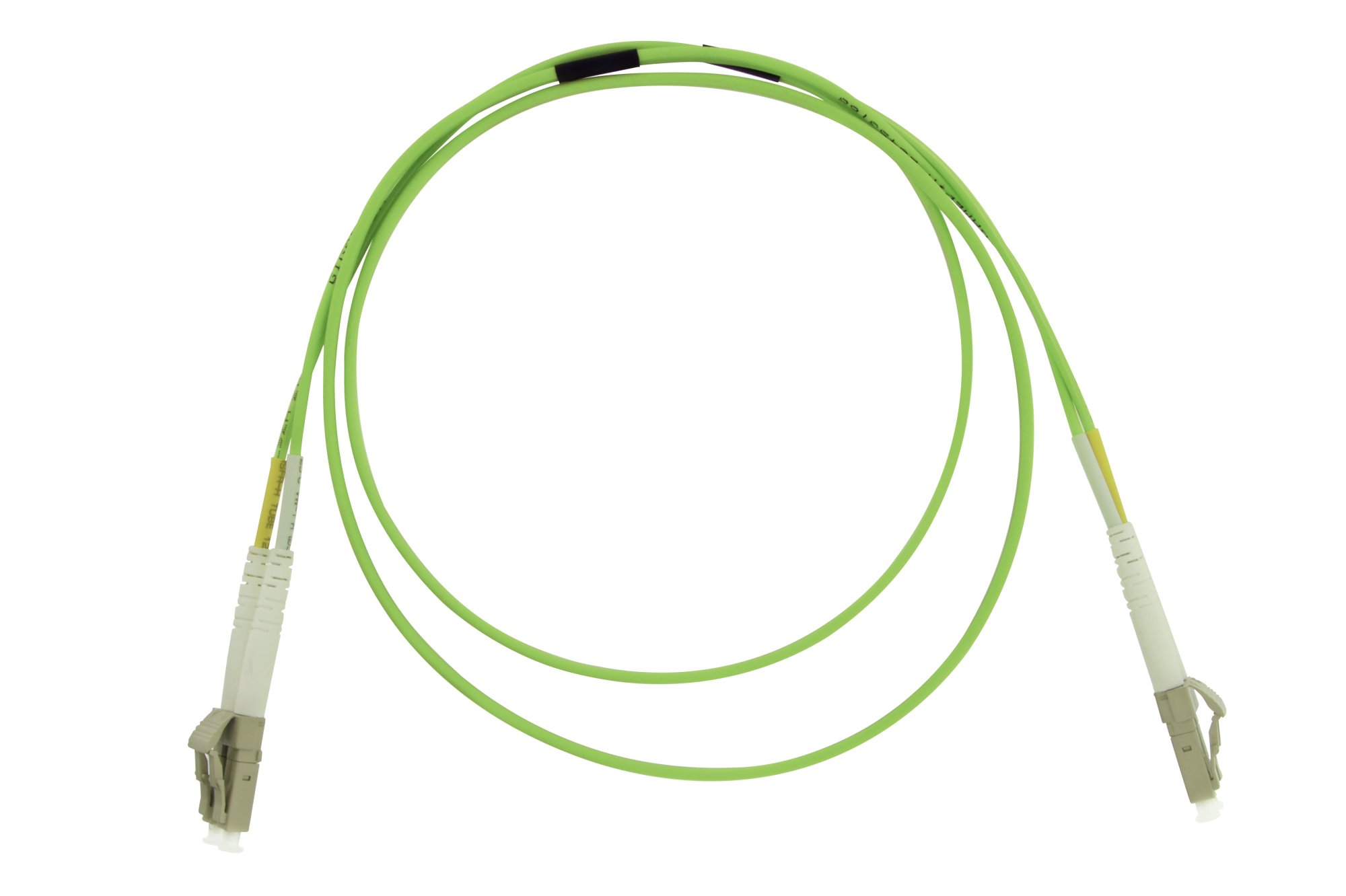

LC/LC OM5 50/125 µm duplex 2 m patchcord, LSZH Ø1,8 mm jacket, lime green colour
Duplex fibre optic patch cords OM5 50/125 µm, lemon green sheath
Read more
Duplex fibre optic patch cords OM5 50/125 µm, lemon green sheath
Product features
| Cord type | Duplex |
|---|---|
| Ferule | High precision ceramic (ZrO2) |
| Sheath type | LSZH |
| Reinforcement | Aramid yarns |
| Cable diameter | 2x 3 mm (multimode), 2x 2.80 mm (singlemode), 2x 1.80 mm (LC to LC) |
| Conformity | EIA/TIA 568, ISO 11801, EN50173, IEC 61754, IEC 61300 |
| Packaging | Each |
| Other lengths and configurations | On demand |
| Il/rl test report | Supplied with each piece |
| Operating temperature | From - 5°c to + 60°c |
| Mating cycles | 1000 (0,2 dB variation) |
Article features
| Strength member | : Aramid yarns |
|---|
ETIM 9 features
| Fibre optic category | Multi mode 50/125 |
|---|---|
| Category | OM5 |
| Fibre count | 2 |
| Outer diameter sheath single fibre | 1.8 mm |
| Shield type | Duplex |
| Length | 2 m |
| Connector A | LC-Duplex |
| Connector B | LC-Duplex |
| APC-version connection 1 | No |
| APC-version connection 2 | No |
| Jacket colour | Green |
| Boot | Put-on |
| Halogen free according to EN IEC 60754-1 | Yes |
LC/LC OM5 50/125 µm duplex 1 m patchcord, LSZH Ø1,8 mm jacket, lime green colour
GGM D6MLCLC1M
LC/LC OM5 50/125 µm duplex 3 m patchcord, LSZH Ø1,8 mm jacket, lime green colour
GGM D6MLCLC3M
LC/LC OM5 50/125 µm duplex 5 m patchcord, LSZH Ø1,8 mm jacket, lime green colour
GGM D6MLCLC5M
LC/LC OM5 50/125 µm duplex 10m patchcord, LSZH Ø1,8 mm jacket, lime green colour
GGM D6MLCLC10M
LC/SC OM5 50/125 µm duplex 1 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCLC1M
LC/SC OM5 50/125 µm duplex 2 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCLC2M
LC/SC OM5 50/125 µm duplex 3 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCLC3M
LC/SC OM5 50/125 µm duplex 5 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCLC5M
SC/SC OM5 50/125 µm duplex 1 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCC1M
SC/SC OM5 50/125 µm duplex 2 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCC2M
SC/SC OM5 50/125 µm duplex 3 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCC3M
SC/SC OM5 50/125 µm duplex 5 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCC5M
SC/SC OM5 50/125 µm duplex 10 m patchcord, LSZH Ø3 mm jacket, lime green colour
GGM D6MCC10M
