GGM CPRIG6A2LC40

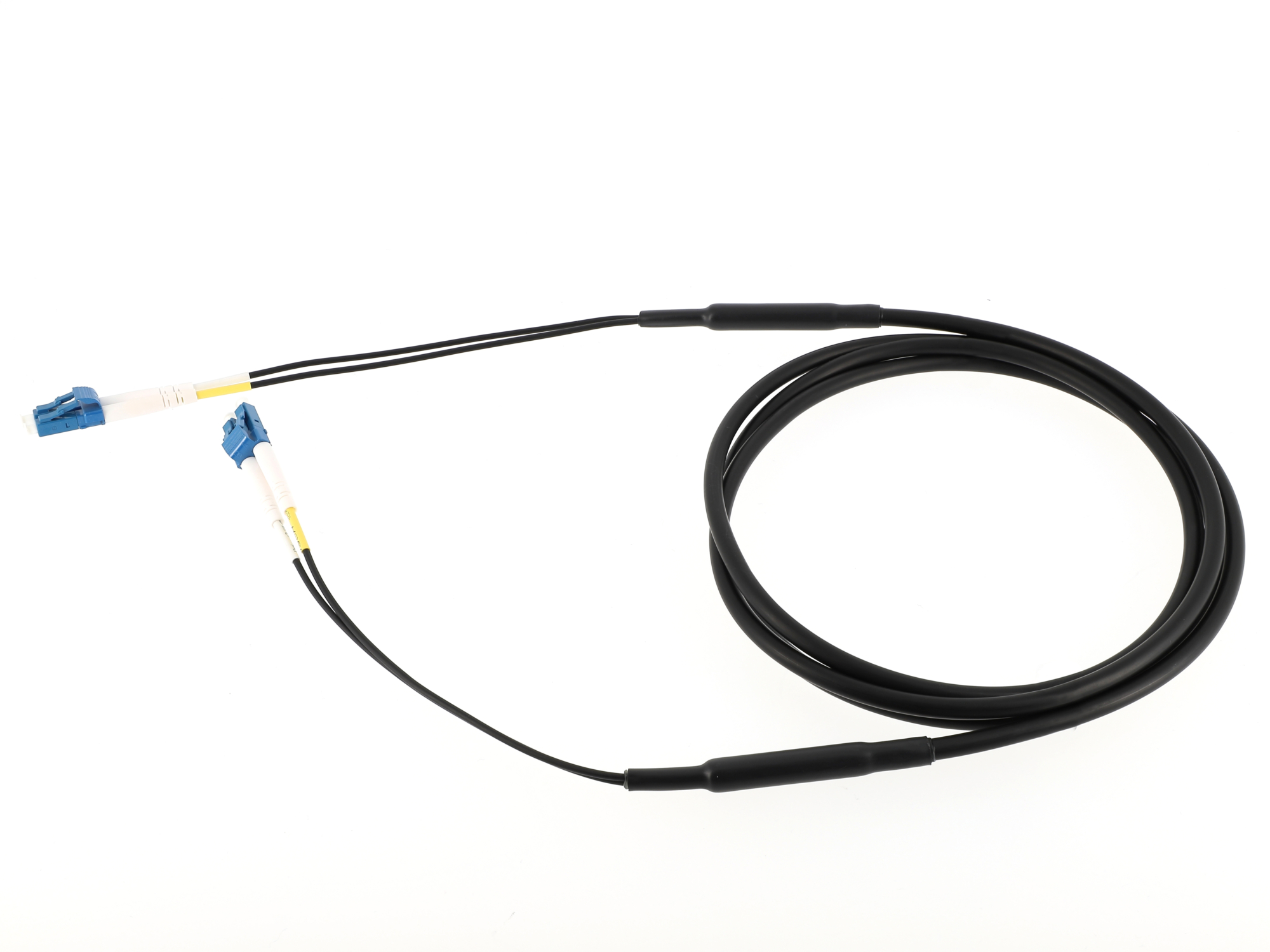

LC/LC G657A2 singlemode duplex CPRI black LSZH UV resistant 40 m patchcord
UV resistant & reinforced by an additional FRP yarn, these CPRI patchcords are perfectly adapted to support various weather conditions with important mecanical constraints. They can also be installed indoor thanks to their LSZH outer jacket.
Read more
UV resistant & reinforced by an additional FRP yarn, these CPRI patchcords are perfectly adapted to support various weather conditions with important mecanical constraints.
They can also be installed indoor thanks to their LSZH outer jacket.
They can also be installed indoor thanks to their LSZH outer jacket.
Product features
| Fiber type | Singlemode G657A2 |
|---|
Article features
| Outer sheath diameter (mm) | 5.5 |
|---|---|
| Length (m) | 40 |
| Outer jacket colour | Black |
| Typical insertion loss (dB) | ≤ 0,10 dB |
| Return loss (dB) | ≥ 50 dB |
| Weight (kg) | 1 |
ETIM 9 features
| Fibre optic category | Single mode |
|---|---|
| Category | OS2 |
| Fibre count | 2 |
| Outer diameter sheath single fibre | 5.5 mm |
| Shield type | Duplex |
| Length | 40 m |
| Connector A | LC-Duplex |
| Connector B | LC-Duplex |
| APC-version connection 1 | No |
| APC-version connection 2 | No |
| Jacket colour | Black |
| Boot | Put-on |
| Halogen free according to EN IEC 60754-1 | Yes |
