| Type | Side access |
|---|---|
| Frame | Steel, mechanically riveted |
| Mounting profiles | Two 19″ mounting profiles adjustable in depth (zinc plated) |
| Front door | Reversible securit glass door with side profiles, can be opened up to 100°, locked by using key lock (N°333) |
| Side panels | Pivoting, removable for easier access (unlockable from inside) |
| Cable entries | On the top and on the bottom |
| Ventilation | Ventilation openings |
| Width (mm) | 600 |
| RAL | 9005 |
| Protection (IP) | 20 |
| Load capacity | 50 |
| Earthing kit included | Yes |
| Capacity (U) | 21 |
| Depth (mm) | 560 |
| Height (mm) | 1022 |
ETIM features
| Mounting level | Front side |
|---|---|
| Model | With permanent frame |
| Type of profile rail | L-shape |
| Number of doors | 1 |
| Type of ventilation | Passive |
| Width | 600 mm |
| Height | 755 mm |
| Depth | 560 mm |
| Modular spacing | 482.6 mm (19 inch) |
| Number of height units | 21 |
| Max. load capacity | 50 kg |
| With roof plate | Yes |
| With earthing | Yes |
| With front door | Yes |
| With sidewall | Yes |
| Demountable | No |
| Material | Steel |
| Surface finishing | Powder coating |
| Colour | Black |
| RAL-number | 9005 |
| Degree of protection (IP) | IP20 |
Product information
19″ Wallmount cabinet INIBOX 6U 400 mm depth - Black
GGM COF6U400IBN
19″ Wallmount cabinet INIBOX 9U 400 mm depth - Black
GGM COF9U400IBN
19″ Wallmount cabinet INIBOX 12U 400 mm depth - Black
GGM COF12U400IBN
19″ Wallmount cabinet INIBOX 6U 560 mm depth - Black
GGM COF6U560IBN
19″ Wallmount cabinet INIBOX 9U 560 mm depth - Black
GGM COF9U560IBN
19″ Wallmount cabinet INIBOX 12U 560 mm depth - Black
GGM COF12U560IBN
19″ Wallmount cabinet INIBOX 15U 560 mm depth - Black
GGM COF15U560IBN
For further information
Over 7000
part numbers
Exclusively distributed
by Rexel
Over 100 employees
worldwide
30 years of expertise
at your service
Tailor-made services
for your projects
GGM COF21U560IBN

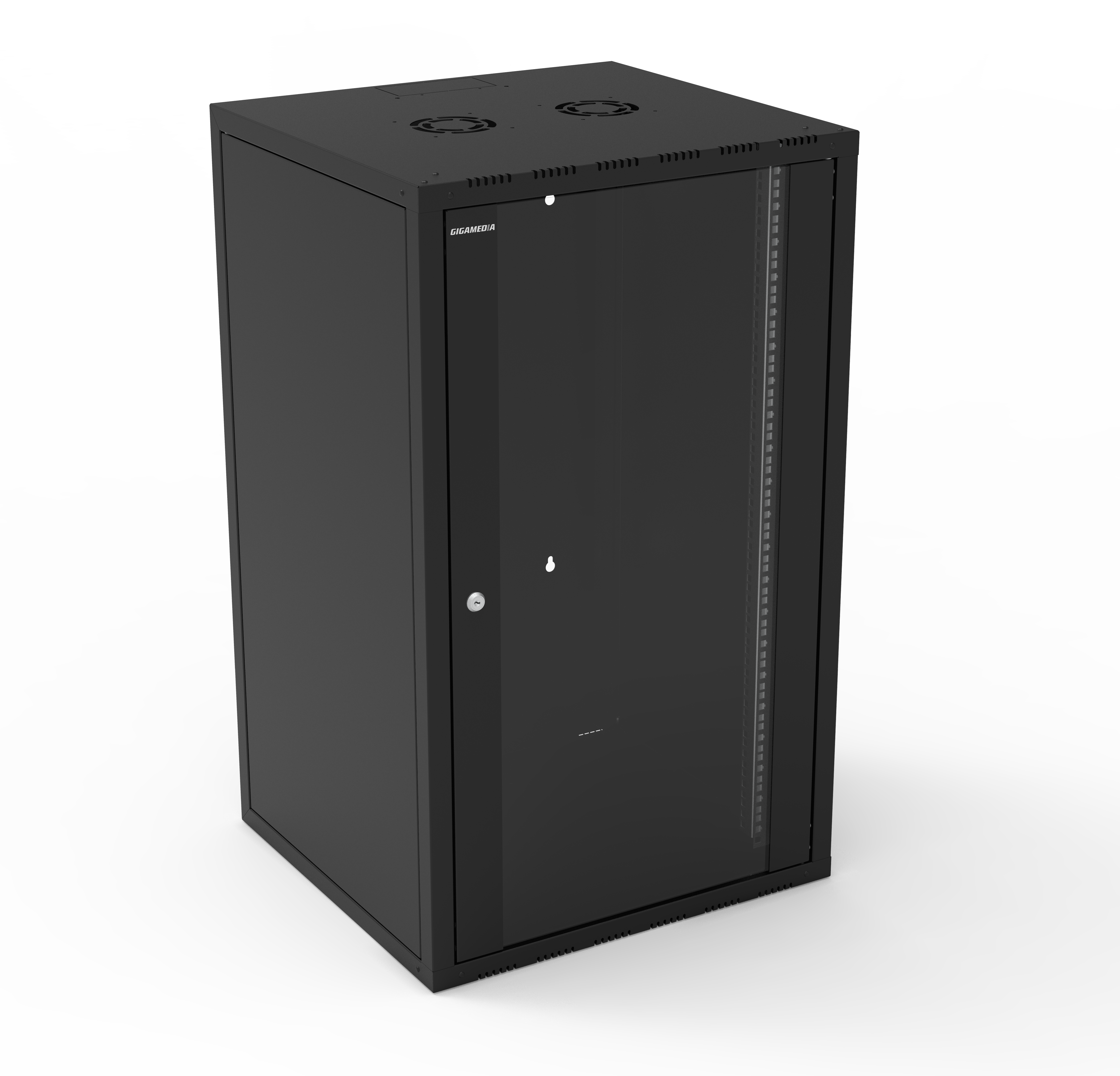

19″ Wallmount cabinet INIBOX 21U 560 mm depth – Black
