GGM COF21U500IP55V

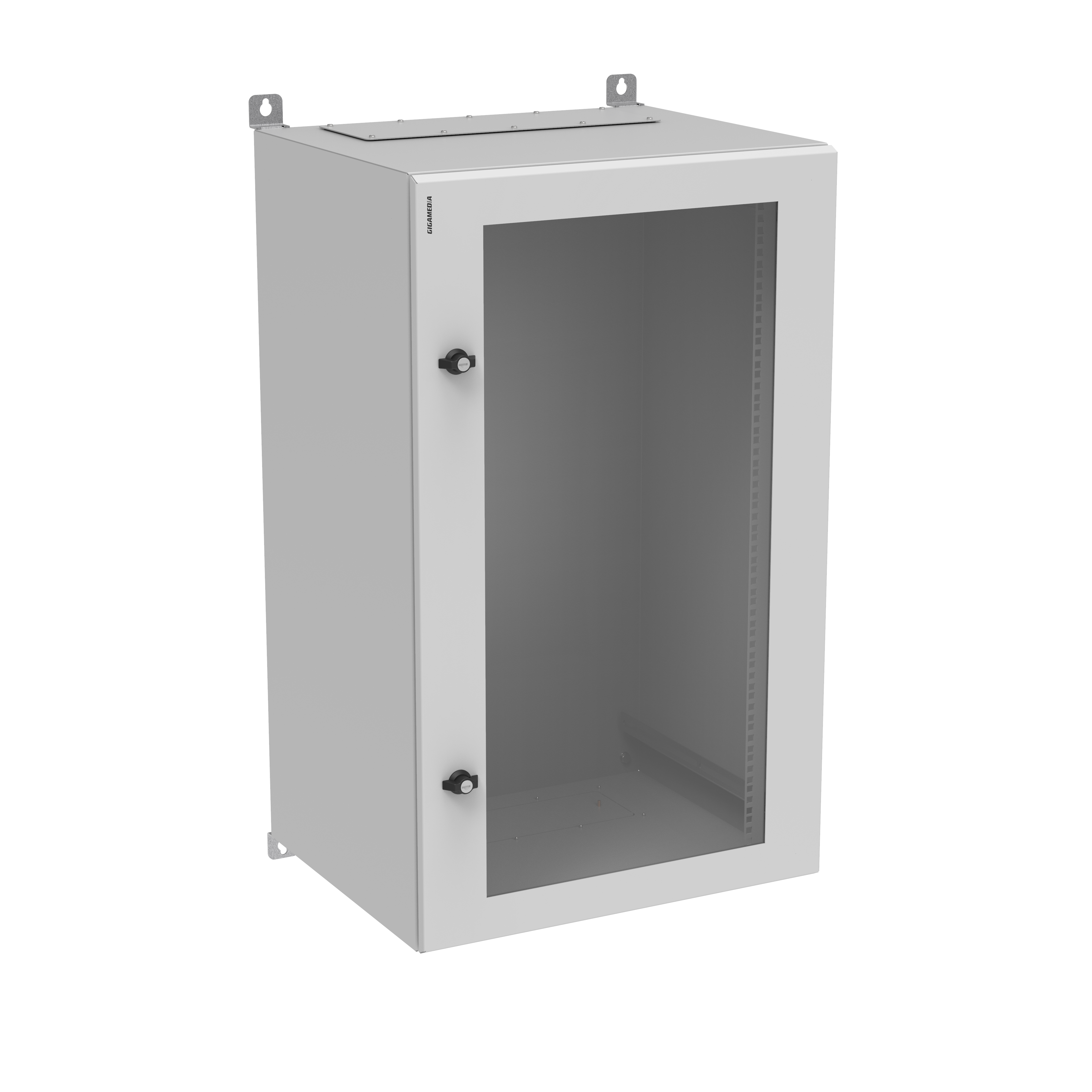

19″ Wallmount cabinet IPBOX 21U 500 mm depth – glass door – GREY

Specially designed to meet (according to classification) the required demands within some premises (ex : Industry, warehouse, car park ...). The IPBOX is characterised by the sealing level it has against dust and against water jets from all lance directions, according to the CEI 60529 standard. Available with securit glass door with steel frame, or with full steel door. Door with polyurethane hot-poured door seal. Two locking points to ensure uniform pressure of the door seal on the body of the housing. ″Butterfly button″ type key locks for better handling ergonomics Cable gland plates (top and bottom) with hot-poured polyurethane…

Available with securit glass door with steel frame, or with full steel door.
Door with polyurethane hot-poured door seal.
Two locking points to ensure uniform pressure of the door seal on the body of the housing.
″Butterfly button″ type key locks for better handling ergonomics
Cable gland plates (top and bottom) with hot-poured polyurethane seal, fixing by screws.
Delivered with wall mounting brackets.
A pole mounting bracket is also available (sold separately).

A high quality product, both in design and finish, it will meet with the most stringent requirements.
For indoor installation only.

Product features

Type	2 parts
Frame	Steel, mechanically welded
Mounting profiles	Two 19″ mounting profiles adjustable in depth (zinc plated)
Cable entries	On the top and on the bottom
Width (mm)	600
Depth (mm)	500
RAL	7035
Protection (IP)	55
Load capacity	60
Earthing kit included	Yes

Article features

Capacity (U)	21
Front door	Reversible securit glass door, can be opened up to 180°, locked by using swing handle with key lock (N°333)
Height (mm)	1005

ETIM 9 features

Mounting level	Front side
Model	With permanent frame
Type of profile rail	L-shaped
Number of doors	1
Type of ventilation	None
Width	600 mm
Height	1005 mm
Depth	500 mm
Modular spacing	482.6 mm (19 inch)
Height (U)	21
Max. load capacity	60 kg
With roof plate	Yes
With earthing	Yes
With front door	Yes
With sidewall	No
Demountable	No
Material	Steel
Surface finishing	Powder coating
Colour	Grey
IP protection	IP55
