GGM COF15U5FPN

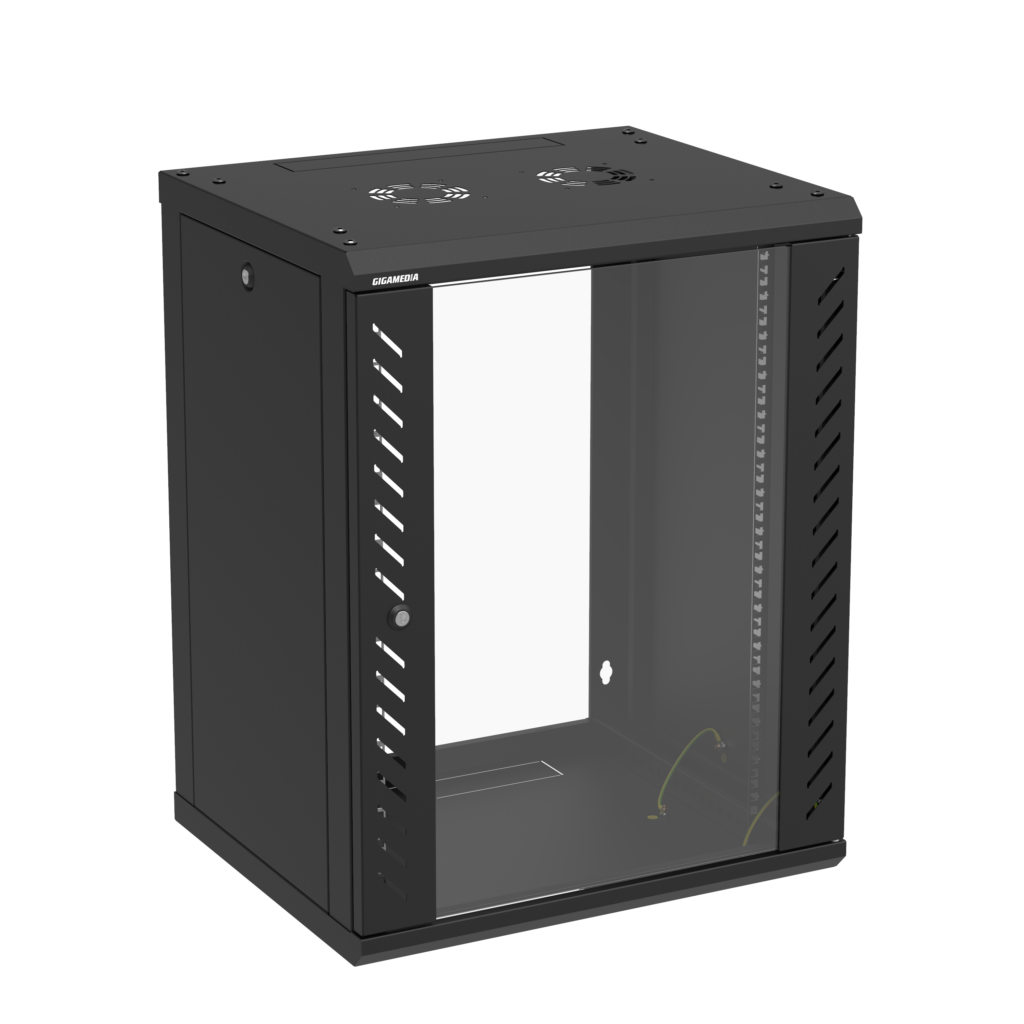

19″ Wallmount cabinet FLATBOX 15U 500 mm depth – Black

Flatpack delivery to save space during transport and storage. Vertical packaging, which does not fear crushing, but above all, which facilitates the picking of parts during assembly steps. Handling handles on the packaging. Easy and quick assembly, FLATBOX is designed with only 5 different parts, its "symmetrical" design ensures the greatest simplicity of assembly. Only one single hex key is necessary for assembly (included). Removable door and side panels for easy access. Delivered with assembly instructions and drilling template

Flatpack delivery to save space during transport and storage.
Vertical packaging, which does not fear crushing, but above all, which facilitates the picking of parts during assembly steps.
Handling handles on the packaging.
Easy and quick assembly, FLATBOX is designed with only 5 different parts, its "symmetrical" design ensures the greatest simplicity of assembly.
Only one single hex key is necessary for assembly (included).
Removable door and side panels for easy access.
Delivered with assembly instructions and drilling template

Product features

Type	Side access
Frame	Steel, mechanically screwed
Mounting profiles	Two 19″ mounting profiles adjustable in depth (zinc plated)
Front door	Reversible securit glass door with side profiles, can be opened up to 180°, locked by using key lock (N°333)
Side panels	Removable for easier access, locked by using key lock (N°333)
Cable entries	On the top and on the bottom
Ventilation	Ventilation openings
Width (mm)	600
RAL	9005
Protection (IP)	20
Load capacity	50
Earthing kit included	Yes
Flatpack delivered	Yes

Article features

Capacity (U)	15
Height (mm)	769
Depth (mm)	500

ETIM 9 features

Mounting level	Front side
Model	With permanent frame
Type of profile rail	L-shaped
Number of doors	1
Type of ventilation	Passive
Width	600 mm
Height	769 mm
Depth	500 mm
Modular spacing	482.6 mm (19 inch)
Height (U)	15
Max. load capacity	50 kg
With roof plate	Yes
With earthing	Yes
With front door	Yes
With sidewall	Yes
Demountable	Yes
Material	Steel
Surface finishing	Powder coating
Colour	Black
IP protection	IP20
