GGM COF12U2P6MN

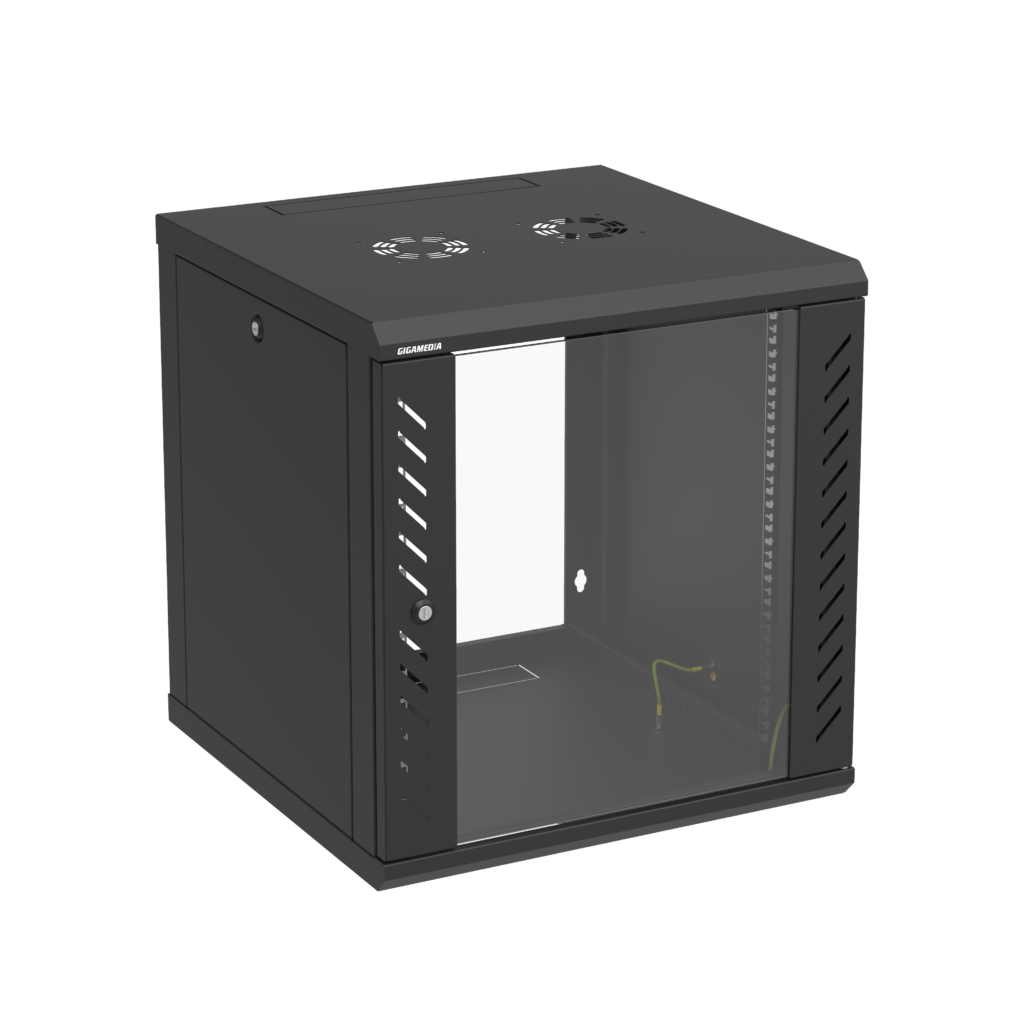

19″ Wallmount cabinet MODULBOX 12U 600 mm depth – Black
Aesthetics, finish, functionalites, a real high quality product ! Removable door and side panels for easy access.
Read more
Aesthetics, finish, functionalites, a real high quality product !
Removable door and side panels for easy access.
Removable door and side panels for easy access.
Product features
| Type | Side access |
|---|---|
| Frame | Steel, mechanically welded |
| Mounting profiles | Two 19″ mounting profiles adjustable in depth (zinc plated) |

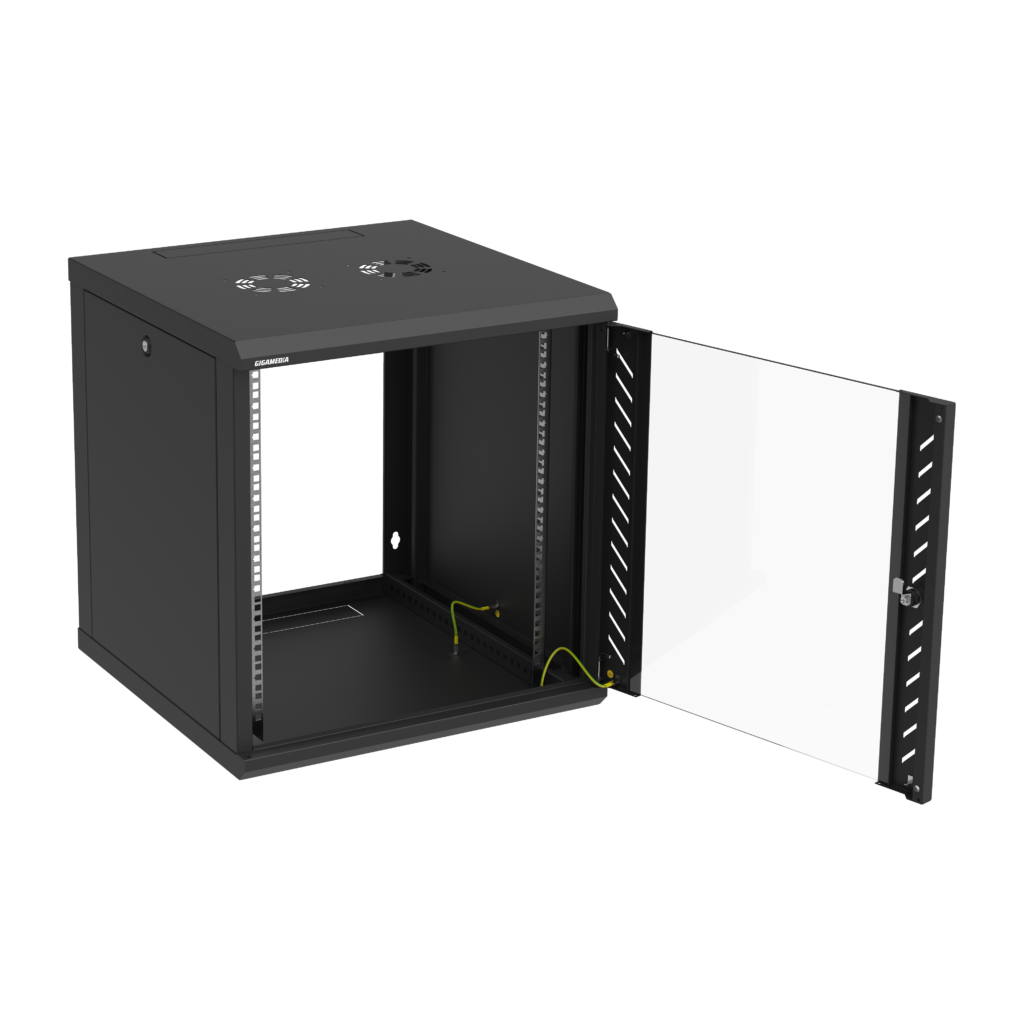

| Front door | Reversible securit glass door with side profiles, can be opened up to 180°, locked by using key lock (N°333) |
| Side panels | Removable for easier access, locked by using key lock (N°333) |
| Cable entries | On the top and on the bottom |
| Ventilation | Ventilation openings |
| Width (mm) | 600 |
| Protection (IP) | 20 |
| Load capacity | 50 |
| Earthing kit included | Yes |
Article features
| Capacity (U) | 12 |
|---|---|
| Depth (mm) | 600 |
| Height (mm) | 635 |
| RAL | 9005 |
ETIM 9 features
| Mounting level | Front side |
|---|---|
| Model | With permanent frame |
| Type of profile rail | L-shaped |
| Number of doors | 1 |
| Type of ventilation | Passive |
| Width | 600 mm |
| Height | 635 mm |
| Depth | 600 mm |
| Modular spacing | 482.6 mm (19 inch) |
| Height (U) | 12 |
| Max. load capacity | 50 kg |
| With roof plate | Yes |
| With earthing | Yes |
| With front door | Yes |
| With sidewall | Yes |
| Demountable | No |
| Material | Steel |
| Surface finishing | Powder coating |
| Colour | Black |
| IP protection | IP20 |
