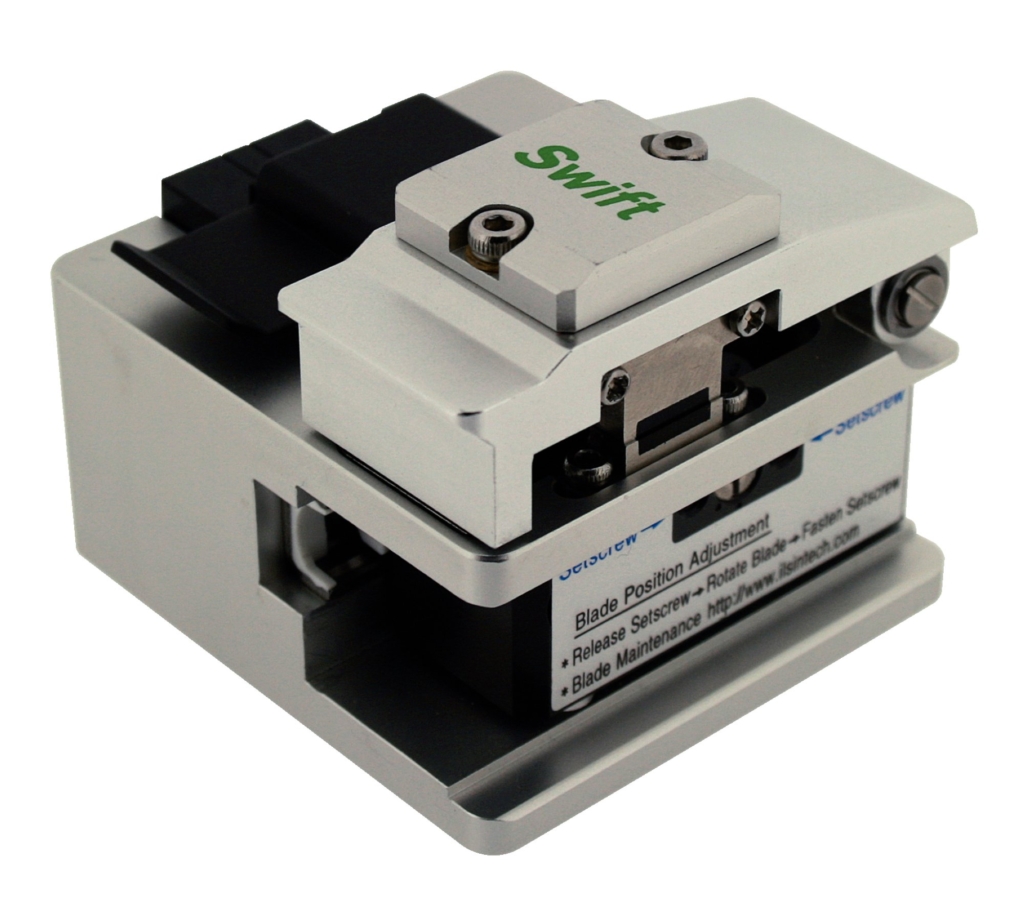

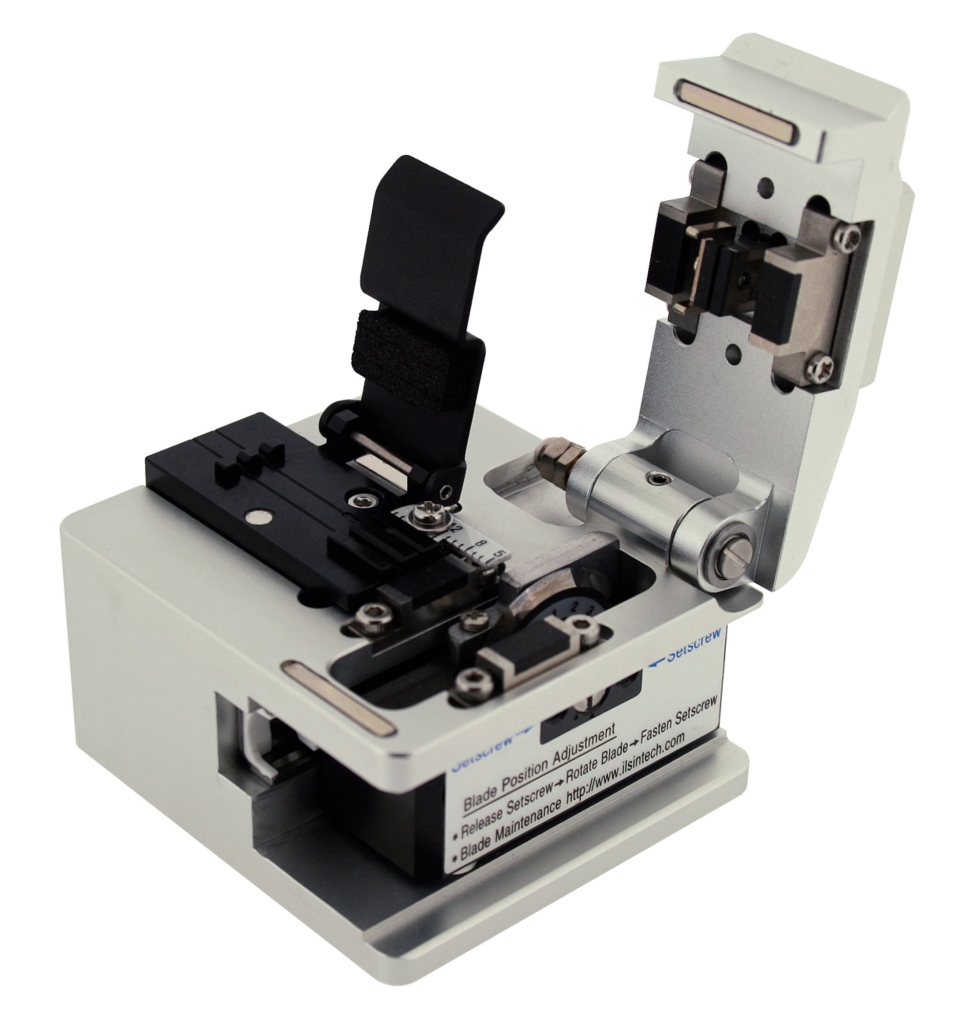

GGM CLEAV01
Fiber optic cleaver for 250/900µm fibers, L=5-20mm
This professional optical cleaver combines simplicity with quality of cut. Ideal for splicing or pre-fibred connectors.
Read more
This professional optical cleaver combines simplicity with quality of cut. Ideal for splicing or pre-fibred connectors.
| Blade type | Steel |
|---|---|
| Number of positions | 16 |
| Compatible fiber diameter (µm) | 125 |
| Compatible sheath diameter | 250 to 900 µm |
| Cleave angle deviation | +/- 0.5° |
| Cleaving length | 5 to 20mm |
| Cleave Angle deviation | +/- 0,5° |
| Blade life | 50000 |
| Weight (kg) | 0.34 |
ETIM features
| Application | Fusion splice |
|---|---|
| Construction | Portable device |
| For single mode 125 µm | Yes |
| For multimode 125 µm | Yes |
| For POF-fibres 1000 µm | No |
| For PCF/HCS-fibres 230 µm | No |
