GGM C7ASF4PFRT5

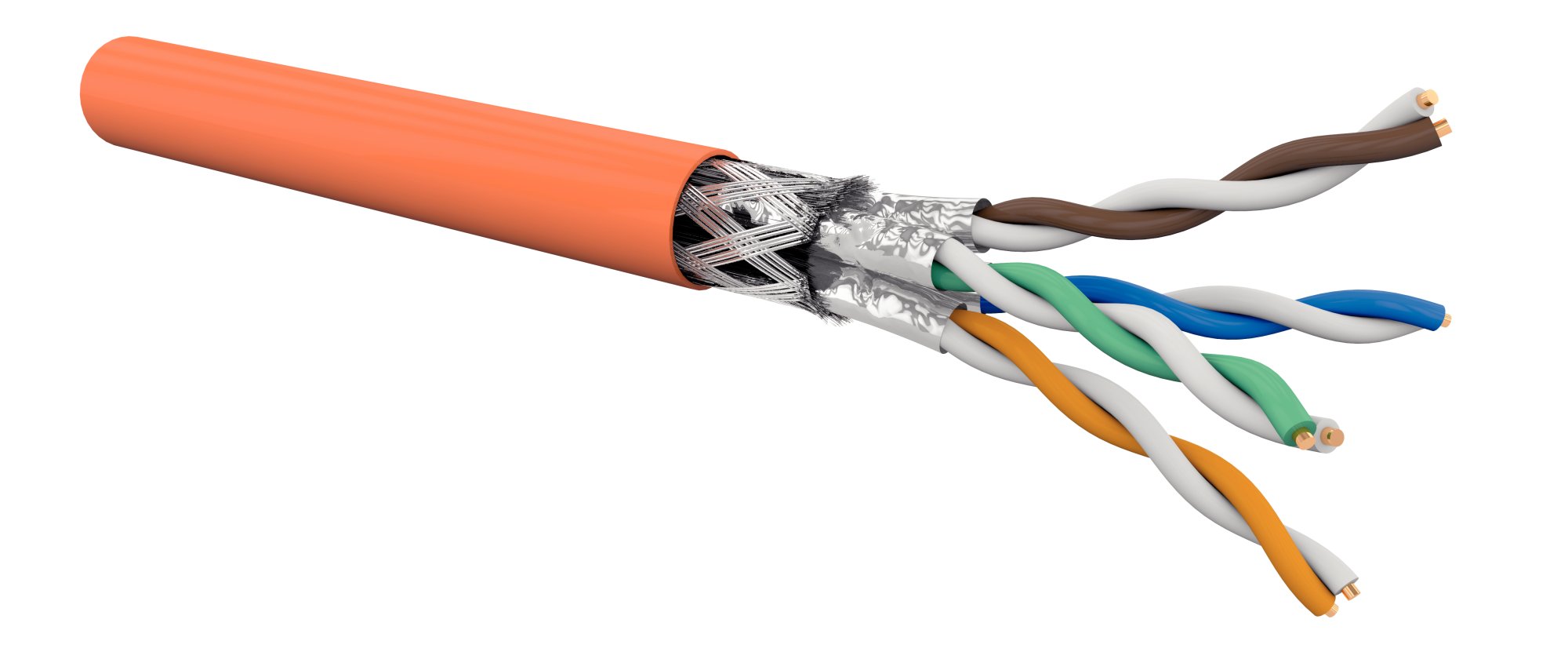

Cable Cat7a 4P SFTP AWG23 HF-FR Cca, Orange T500M
CAT7A S/FTP cable limiting fire propagation and meeting the latest requirements of international and European standards. This series of cables meets and exceeds the requirement of Augmented category 7 (CAT7A) and ISO 11801 or EN 50173 Class FA. The overall shield and individual foil applied on each pair help to optimize NEXT Performance and ensure the user that field test results will show a 100 % Pass rate of installed links. It is the ideal solution when deploying 10Gbits capable Network cabling infrastructure (i.e 10GBASE-T) and ensures the user a high level of Fire performance : LSZH & Fire retardant…
Read more
CAT7A S/FTP cable limiting fire propagation and meeting the latest requirements of international and European standards.
This series of cables meets and exceeds the requirement of Augmented category 7 (CAT7A) and ISO 11801 or EN 50173 Class FA.
The overall shield and individual foil applied on each pair help to optimize NEXT Performance and ensure the user that field test results will show a 100 % Pass rate of installed links.
It is the ideal solution when deploying 10Gbits capable Network cabling infrastructure (i.e 10GBASE-T) and ensures the user a high level of Fire performance : LSZH & Fire retardant in accordance with IEC 60332-3 & EN 50267 to meet latest European regulation (CPR).
This series of cables meets and exceeds the requirement of Augmented category 7 (CAT7A) and ISO 11801 or EN 50173 Class FA.
The overall shield and individual foil applied on each pair help to optimize NEXT Performance and ensure the user that field test results will show a 100 % Pass rate of installed links.
It is the ideal solution when deploying 10Gbits capable Network cabling infrastructure (i.e 10GBASE-T) and ensures the user a high level of Fire performance : LSZH & Fire retardant in accordance with IEC 60332-3 & EN 50267 to meet latest European regulation (CPR).
| Applications | IEEE802.3 : 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T, 100Base-Tx, 10Base-T, IEEE 802.3af/at/bt (PoE/PoE+/4PPoE) |
|---|---|
| Shielding | S/FTP |
| Category | 7A |
| Standards | ANSI/TIA-568.2-D ; EN 50173 ; ISO/IEC 11801 |
| Frequency range | From 0 to 600 Mhz |
| Impedance | 100 |
| Gauge (awg) | 23 |
| Conductor type | Solid copper |
| Number of pairs | 1X4 |
| Jacket type | LSZH-FR |
| Outer jacket colour | Orange |
| Jacket RAL | RAL 2003 |
| Outer sheath diameter (mm) | 7.9 |
| NVP (%) | 82 |
| Fire behaviour | EN50575 : Cca s1a, d1, a1 ; EN50399 ; IEC 60332-1 ; IEC 60754-2 |
| Insulation diameter (mm) | 1.45 |
| Insulation Material | PE |
| Marking | GIGAMEDIA EN 50173 CAT7A S/FTP LSZH-FR – C7ASF4PFR – TP047A – Cca NVP 82% 4PAIR 23AWG FFSemaine (2 chiffres) Année (2 chiffres) OF*** METRIQUE M |
| Packaging | 500 m drum |
ETIM features
| Cable type | S/FTP |
|---|---|
| Duplex | No |
| Conductor material | Copper |
| Conductor surface | Bare |
| Diameter conductor | 0.6 mm |
| Nominal cross section conductor | 0.283 mm² |
| AWG size | 23 |
| Conductor category | Class 1 = solid |
| Number of cores | 8 |
| Number of stranding elements | 4 |
| Stranding element | Pairs |
| Specification core insulation | Polyethylene (PE) |
| Core identification according to HD 308 S2 | No |
| Core identification | Colour |
| Screen over stranding element | Foil |
| Screen over stranding | Braiding |
| Longitudinal water blocking cable | No |
| Radial water blocking cable | No |
| Suitable for underground installation | No |
| Approved type of underground installation | Underground installation tube |
| Colour outer sheath | Orange |
| Armouring/reinforcement | None |
| Cable geometry | Round |
| Flame retardant according to IEC 60332-1-2 | Yes |
| Flame retardant according to IEC 60332-3-21 (Cat A F/R) | No |
| Flame retardant according to IEC 60332-3-22 (Cat A) | No |
| Flame retardant according to IEC 60332-3-23 (Cat B) | No |
| Flame retardant according to IEC 60332-3-24 (Cat C) | Yes |
| Flame retardant according to IEC 60332-3-25 (Cat D) | No |
| Low smoke according to EN IEC 61034-2 | Yes |
| Halogen free according to EN IEC 60754-1 | Yes |
| Halogen free according to EN IEC 60754-2 | Yes |
| Halogen free according to EN IEC 60754-3 | No |
| Reaction-to-fire according to EN 13501-6 | Class : Cca |
| Reaction-to-fire according to EN 13501-6 | Smoke production : s1a |
| Reaction-to-fire according to EN 13501-6 | Flaming droplets/particles : d1 |
| Reaction-to-fire according to EN 13501-6 | Acidity : a1 |
| Oil resistant according to EN IEC 60811-404 | No |
| Outer diameter approximate | 7.6 mm |
| Min. permitted bending radius, moving application/free movement | 63 mm |
| Min. permitted bending radius, stationary application/permanent installation | 32 mm |
| Permitted cable outer temperature during assembling/handling | 00 - 50 |
| Permitted cable outer temperature after assembling without vibration | -20 - 60 |
| NVP value | 82 % |
| Certified for shipboard application | No |
| Segregation class according to EN 50174-2 | D |
| Suitable as telephone cable | No |
| Suitable as computer data cable | Yes |
| Suitable as signalling cable | No |
| Suitable for use as security alarm cable | No |
| Drain wire | Yes |
| With rip cord | No |
| Weight | 68 kg/km |
| Characteristic impedance | 100 Ohm |
| Max. tensile strength during installation | 0.1 kN |
| With rodent protection | No |
| Compatible with Grade2TV according to XP-C 90-483 | No |
| Compatible with Grade3TV according to XP-C 90-483 | No |
